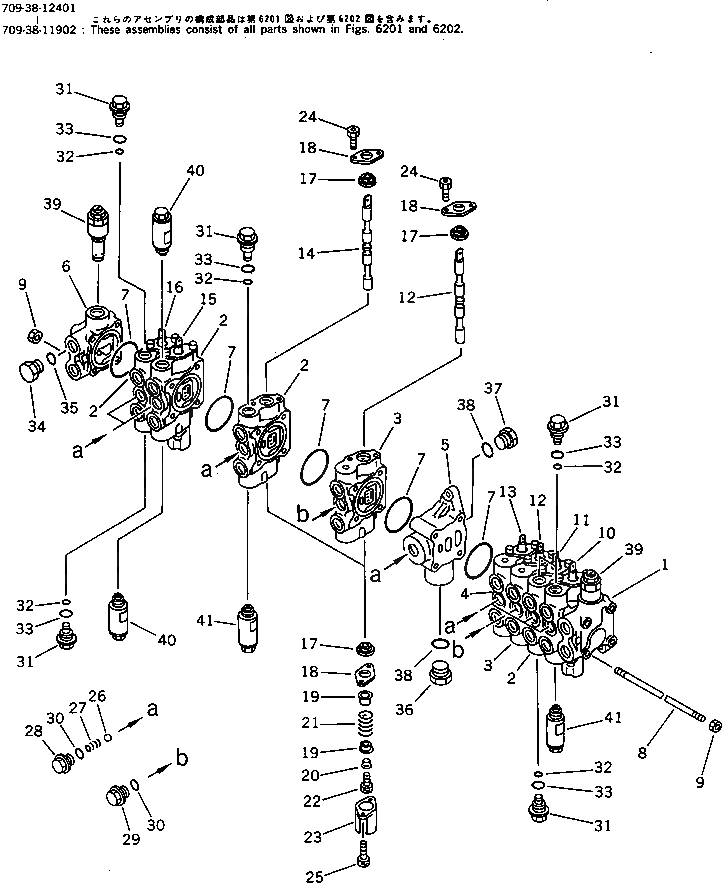

Запчасти Komatsu PC03-1 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-38-12401

VALVE ASS'Y

|$1

9\9709-38-12400

VALVE ASS'Y

|$2

709-38-11903

VALVE ASS'Y

|$3

709-38-11902

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

BLOCK

7

07000-12055

O-RING

8

709-38-11510

STUD

9

01580-10806

NUT

10

SPOOL,BOOM

10

SPOOL,BOOM

11

SPOOL,BUCKET

11

SPOOL,BUCKET

12

SPOOL,TRAVEL

12

SPOOL,TRAVEL

13

SPOOL,BLADE

14

SPOOL,ARM

14

SPOOL,ARM

15

SPOOL,SWING

15

SPOOL,SWING

16

SPOOL,BOOM SWING

16

SPOOL,BOOM SWING

17

709-32-11530

SEAL,DUST

18

709-32-11540

PLATE

19

709-32-11550

RETAINER

20

709-32-11560

COLLAR

21

709-32-11580

SPRING

22

01252-30620

BOLT

23

709-32-11570

COVER

24

01252-30610

BOLT

25

01252-30616

BOLT

26

04260-01270

BALL

27

709-32-11820

SPRING

28

709-32-11810

PLUG

29

709-32-11930

PLUG

30

07002-11823

O-RING

31

709-32-11830

PLUG

32

709-32-11840

O-RING

33

07002-02034

O-RING

34

07040-12012

PLUG

35

07002-02034

O-RING

36

701-30-63130

PLUG

37

700-22-11370

PLUG

38

07002-02434

O-RING

39

700-28-58000

VALVE ASS'Y,MAIN RELIEF

40

709-30-63901

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-63900

VALVE ASS'Y,SUCTION AND SAFETY

41

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

41

709-30-62200

VALVE ASS'Y,SUCTION AND SAFETY
