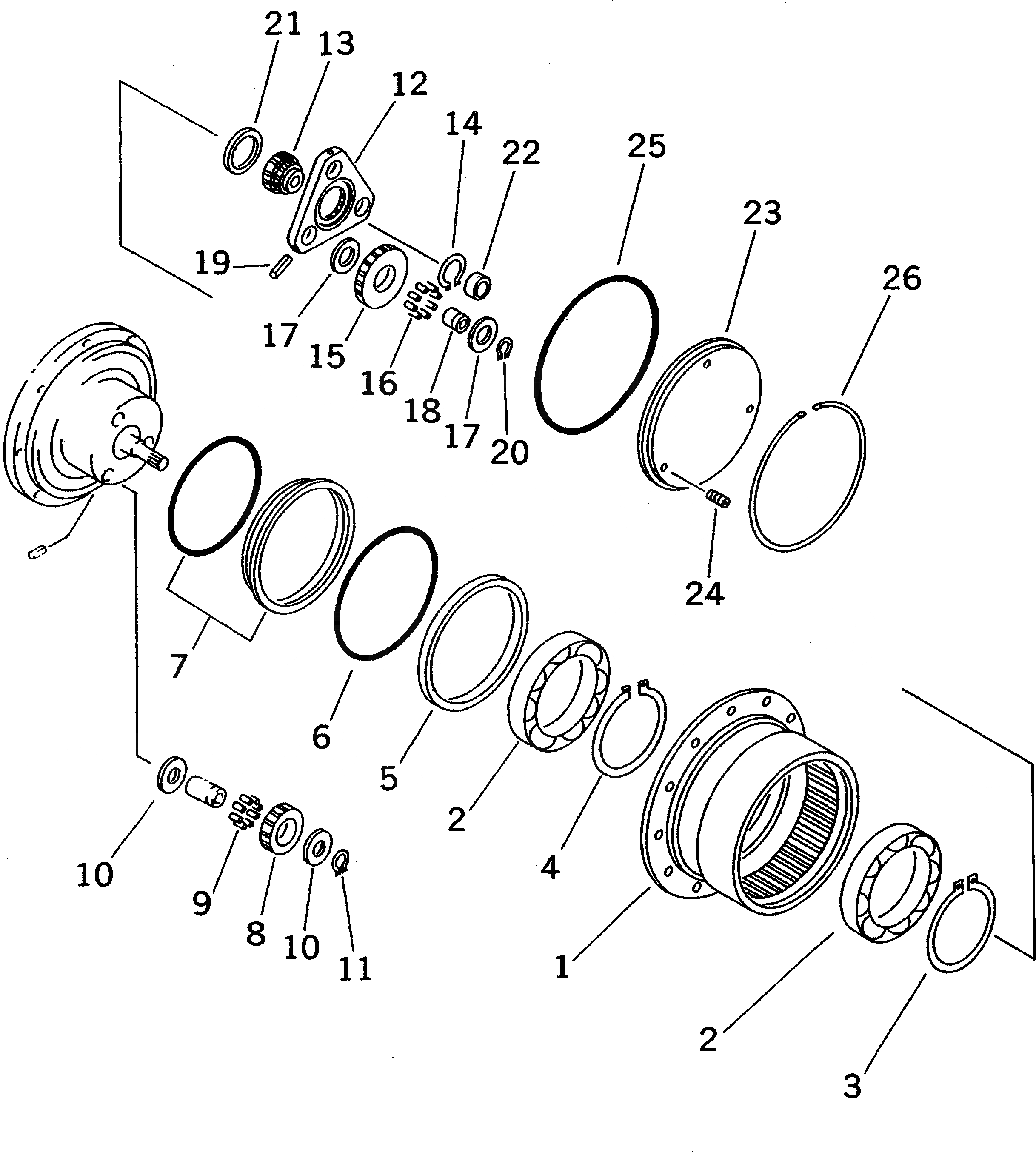

Запчасти Komatsu PC03-1 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

21S-60-14000

MOTOR ASS'Y,TRAVEL

1

BODY

2

20W-60-12420

BEARING

3

RING,SNAP

4

RING,SNAP

5

RING,SEAL

6

O-RING (K2)

7

20W-60-12410

FLOATING SEAL ASS'Y

8

GEAR

9

NEEDLE

10

WASHER,THRUST

11

RING,SNAP

|12

21S-60-14210

CARRIER ASS'Y

12

CARRIER

13

GEAR

14

RING,SNAP

15

GEAR

16

NEEDLE

17

WASHER,THRUST

18

PIN

19

PIN,SPRING

20

RING,SNAP

21

COLLAR,THRUST

22

RING,SLIDE

23

COVER

24

20M-60-25370

PLUG

25

O-RING (K2)

26

RING,SNAP
