Запчасти Komatsu PC03-1 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

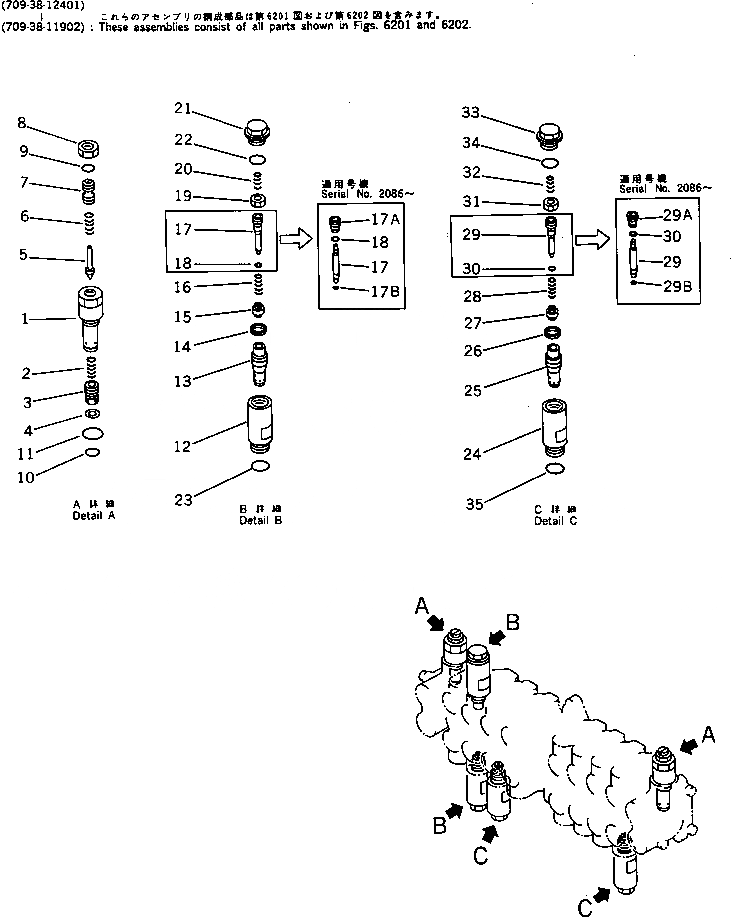

Схема запчастей Komatsu PC03-1 - 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-38-12401

VALVE ASS'Y

|1

9709-38-12400

VALVE ASS'Y

|1

709-38-11903

VALVE ASS'Y

|1

709-38-11902

VALVE ASS'Y

|1

700-28-58000

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-63901

VALVE ASS'Y,SUCTION AND SAFETY

|12

709-30-63900

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

|13

VALVE

14

SEAL

15

POPPET

|15

POPPET

16

SPRING

17

PISTON

|17

PISTON

17A

SCREW

17B

SEAL

18

O-RING

19

NUT

20

700-20-62170

SPRING

21

709-30-62150

PLUG

22

07002-12034

O-RING

23

07002-02034

O-RING

|24

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

|24

709-30-62200

VALVE ASS'Y,SUCTION AND SAFETY

24

709-30-62110

SLEEVE

25

VALVE

|25

VALVE

26

SEAL

27

POPPET

|27

POPPET

28

SPRING

29

PISTON

|29

PISTON

29A

SCREW

29B

SEAL

30

O-RING

31

NUT

32

700-20-62170

SPRING

33

709-30-62150

PLUG

34

07002-12034

O-RING

35

07002-02034

O-RING

Выбрано товаров: 54
