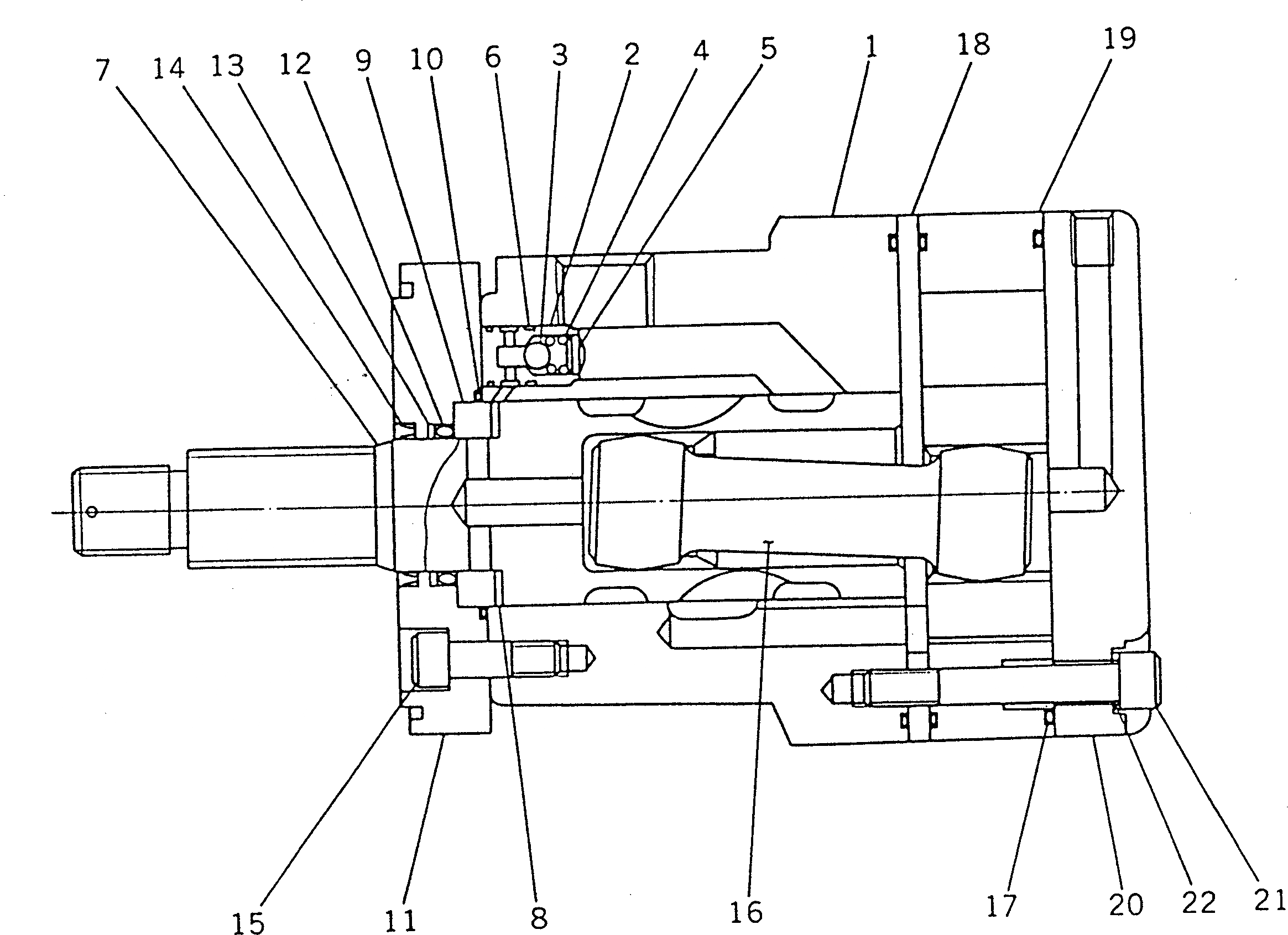

Запчасти Komatsu PC02-1A МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

21R-60-13100

SWING MOTOR ASS'Y

1

21S-60-13120

HOUSING

|2

21S-60-13210

BALL CHECK SUB A.

2

BALL

3

BODY

4

SPRING

5

WASHER

6

21S-60-13350

O-RING (K1)

7

21R-60-13160

SHAFT,OUTPUT

8

21S-60-13240

BEARING,THRUST

9

21S-60-13230

BEARING,THRUST

10

21S-60-13330

O-RING (K1)

11

21R-60-13110

FLANGE

12

21S-60-13311

SEAL,OIL (K1)

13

21S-60-13360

WASHER,BACK-UP (K1)

14

21S-60-13320

SEAL,DUST (K1)

15

21S-60-13250

SCREW

16

21R-60-13170

SHAFT,DRIVE

17

21S-60-13340

O-RING (K1)

18

21S-60-13130

SPACER

19

21R-60-13140

GEROLER ASS'Y

20

21R-60-13150

END,CAP

21

21R-60-13190

BOLT

22

21R-60-13180

WASHER,SEAL (K1)

K1

21S-60-13300

SEAL KIT

|6

21S-60-13350

O-RING

|10

21S-60-13330

O-RING

|12

21S-60-13311

SEAL,OIL

|13

21S-60-13360

WASHER,BACK-UP

|14

21S-60-13320

SEAL,DUST

|17

21S-60-13340

O-RING

|22

21R-60-13180

WASHER,SEAL
