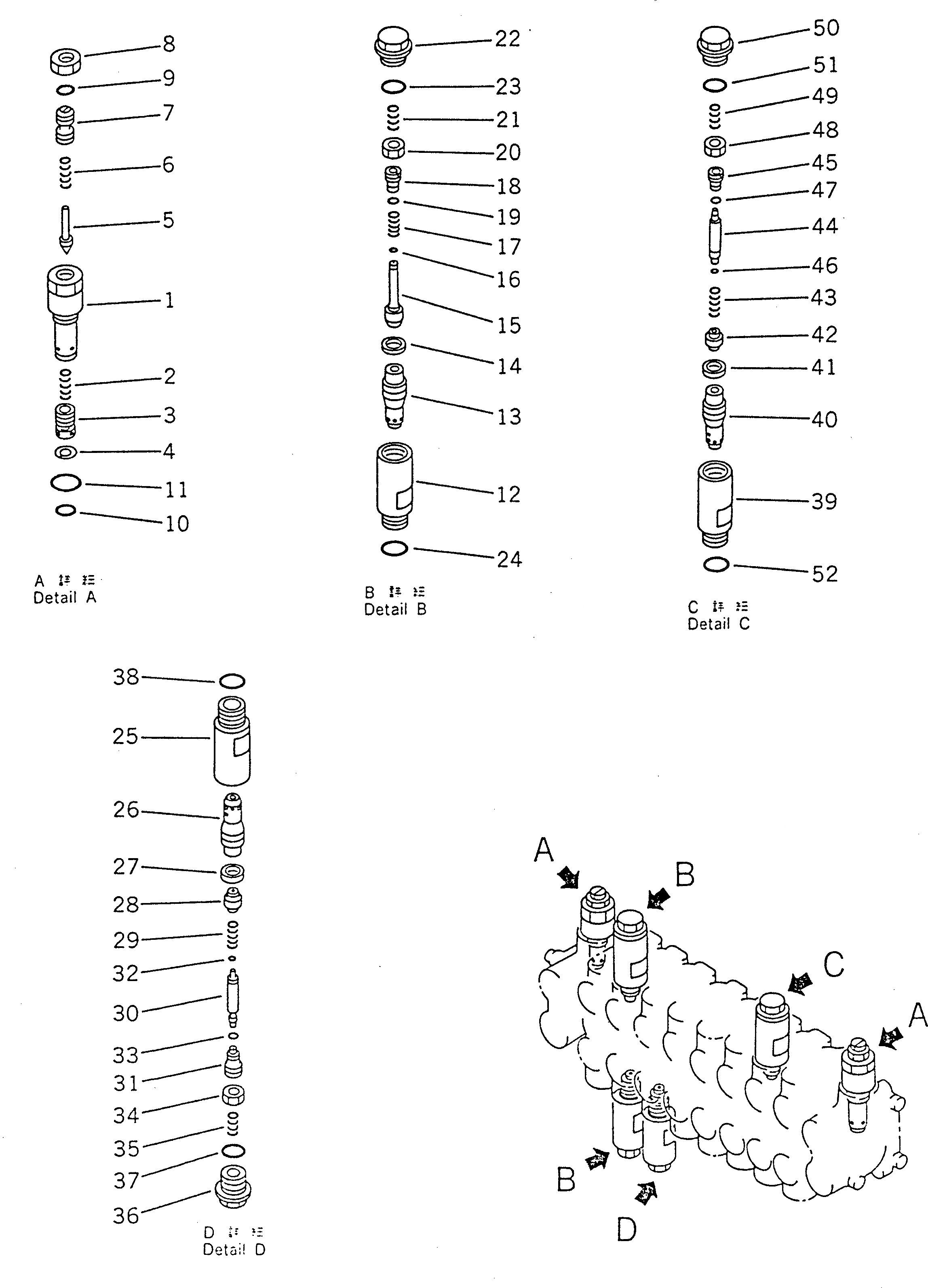

Запчасти Komatsu PC02-1A 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/)(№-7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-38-12701

VALVE ASS'Y

|1

700-28-61001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-64800

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

14

SEAL

15

POPPET

16

SEAL

17

SPRING

18

SCREW

19

O-RING

20

NUT

21

700-20-62170

SPRING

22

709-30-62290

PLUG

23

07002-12034

O-RING

24

07002-02034

O-RING

|25

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

25

709-30-62110

SLEEVE

26

VALVE

27

SEAL

28

POPPET

29

SPRING

30

PISTON

31

SCREW

32

SEAL

33

O-RING

34

NUT

35

700-20-62170

SPRING

36

709-30-62150

PLUG

37

07002-12034

O-RING

38

07002-02034

O-RING

|39

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

39

709-30-62110

SLEEVE

40

VALVE

41

SEAL

42

POPPET

43

SPRING

44

PISTON

45

SCREW

46

SEAL

47

O-RING

48

NUT

49

700-20-62170

SPRING

50

709-30-62150

PLUG

51

07002-12034

O-RING

52

07002-02034

O-RING
