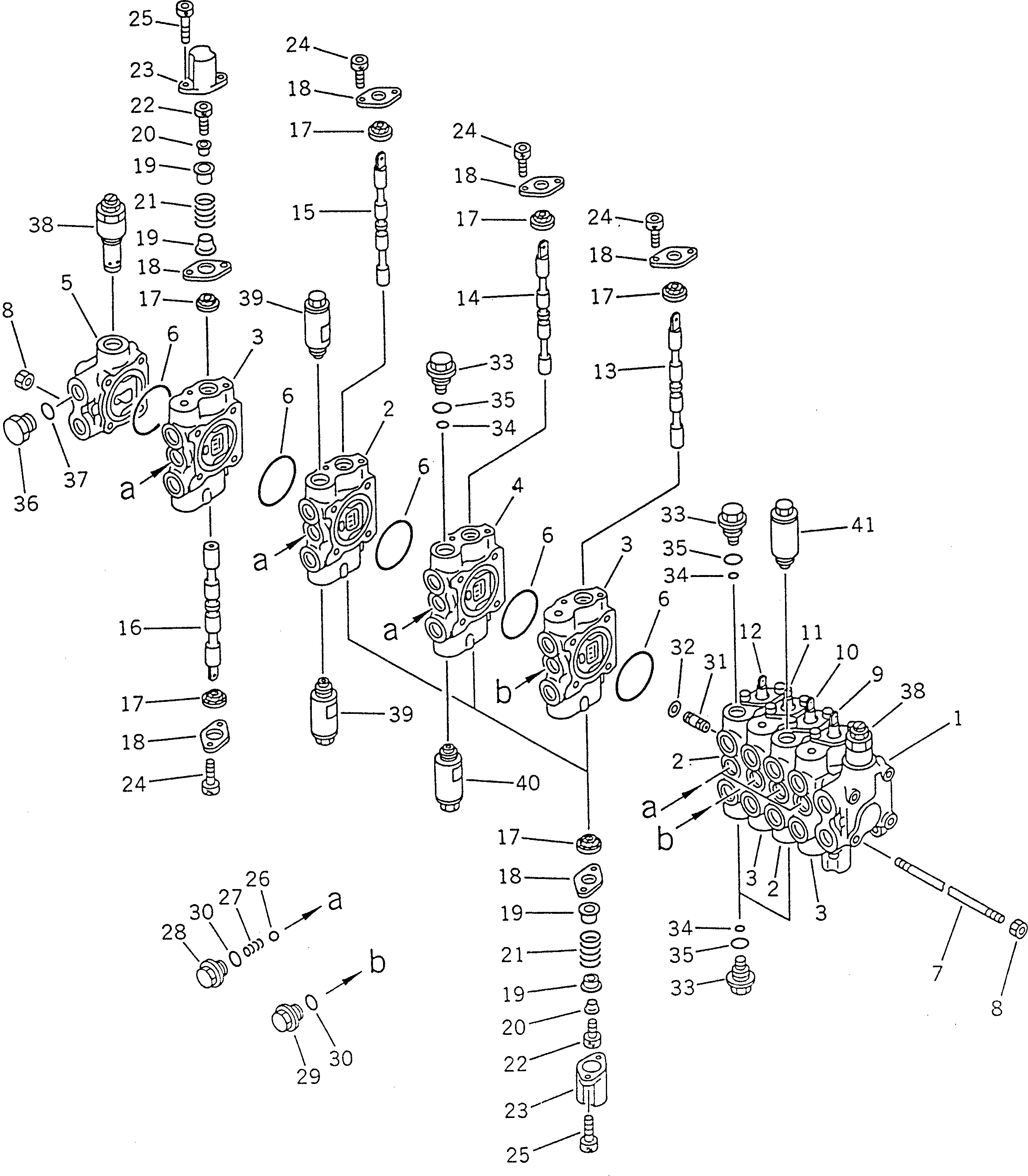

Запчасти Komatsu PC02-1A 8-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/)(№-7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-38-12701

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

709-38-11520

STUD

8

01580-10806

NUT

9

SPOOL,BUCKET

10

SPOOL,BOOM

11

SPOOL,TRAVEL¤ R.H.

12

SPOOL,BLADE

13

SPOOL,TRAVEL¤ L.H.

14

SPOOL,ARM

15

SPOOL,SWING

16

SPOOL,BOOM SWING

17

709-32-11530

SEAL,DUST

18

709-32-11540

PLATE

19

709-32-11550

RETAINER

20

709-32-11560

COLLAR

21

709-32-13550

SPRING

22

01252-30620

BOLT

23

709-32-11570

COVER

24

01252-30610

BOLT

25

01252-30616

BOLT

26

04260-01270

BALL

27

709-32-11820

SPRING

28

709-32-11810

PLUG

29

709-32-11930

PLUG

30

07002-11823

O-RING

31

709-32-12831

PISTON

32

709-32-11890

PLATE

33

709-32-11830

PLUG

34

709-32-11840

O-RING

35

07002-02034

O-RING

36

07040-12012

PLUG

37

07002-02034

O-RING

38

700-28-61001

VALVE ASS'Y,MAIN RELIEF

39

709-30-64800

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

41

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY
