Запчасти Komatsu PC02-1A КАБИНА ЧАСТИ КОРПУСА

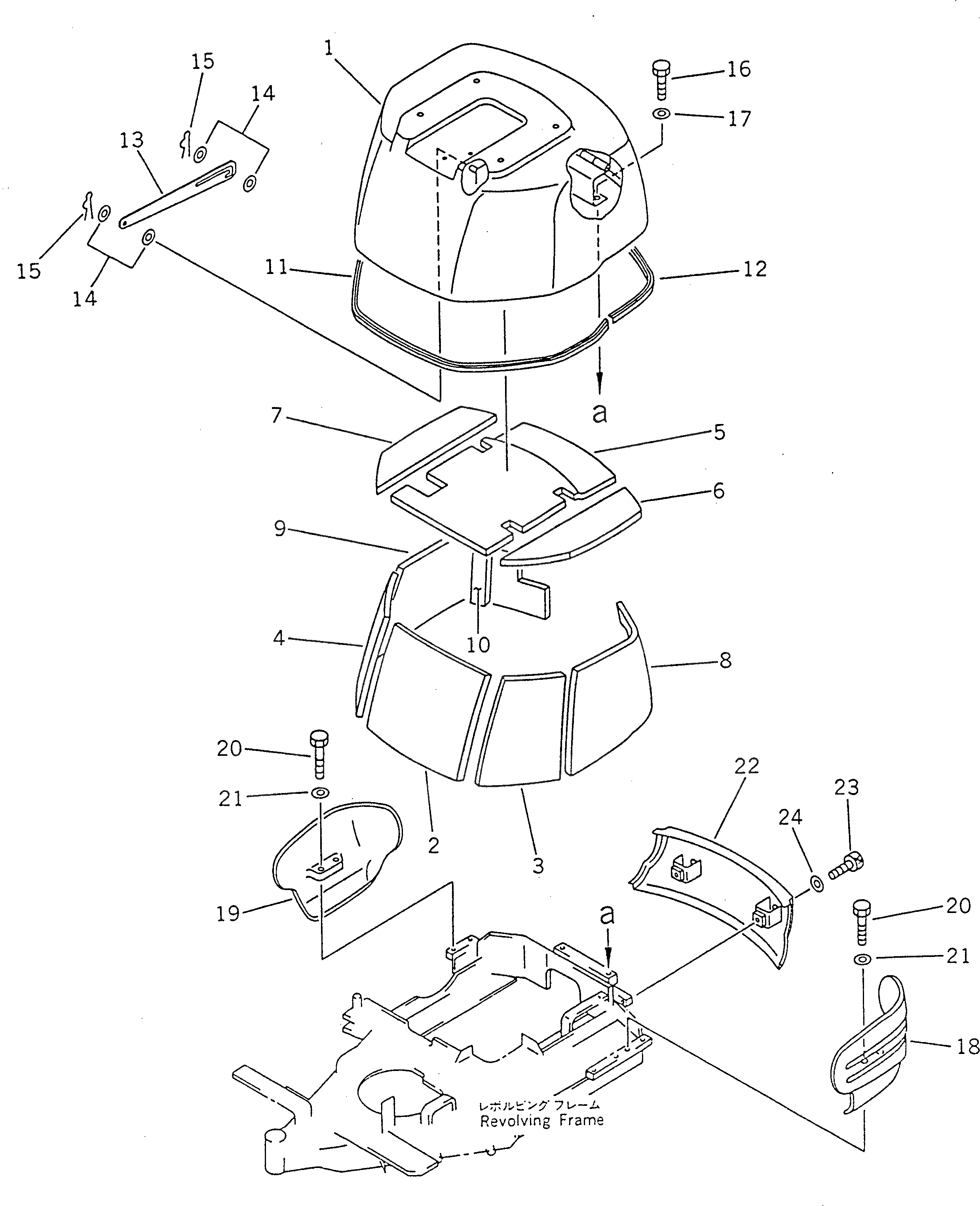

Схема запчастей Komatsu PC02-1A - КАБИНА ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

|1

21R-54-01110

COVER ASS'Y,(RED)

|1

21R-54-01120

COVER ASS'Y,(GREEN)

|1

21R-54-01130

COVER ASS'Y,(YELLOW)

|1

21R-54-01140

COVER ASS'Y,(BLUE)

|1

21R-54-01150

COVER ASS'Y,(PINK)

1

COVER,(RED)

|1

COVER,(GREEN)

|1

COVER,(YELLOW)

|1

COVER,(BLUE)

|1

COVER,(PINK)

|1

21R-54-11210

HINGE (WELDED)

2

21R-54-11410

INSULATOR

3

21R-54-11420

INSULATOR

4

21R-54-11430

INSULATOR

5

21R-54-11440

INSULATOR

6

21R-54-11460

INSULATOR

7

21R-54-11450

INSULATOR

8

21R-54-11480

INSULATOR

9

21R-54-11470

INSULATOR

10

21R-54-11490

INSULATOR

11

21R-54-11310

SEAL

12

21R-54-11320

SEAL

13

21R-54-11830

PLATE

14

01641-20812

WASHER

15

04052-10833

PIN,SNAP

16

01010-51025

BOLT

17

01643-31032

WASHER

18

21R-54-11910

BUMPER,L.H.

19

21R-54-11920

BUMPER,R.H.

20

01010-50835

BOLT

21

154-61-16570

WASHER

22

21R-54-11930

BUMPER

23

01252-41020

BOLT

24

01643-31032

WASHER

Выбрано товаров: 34
