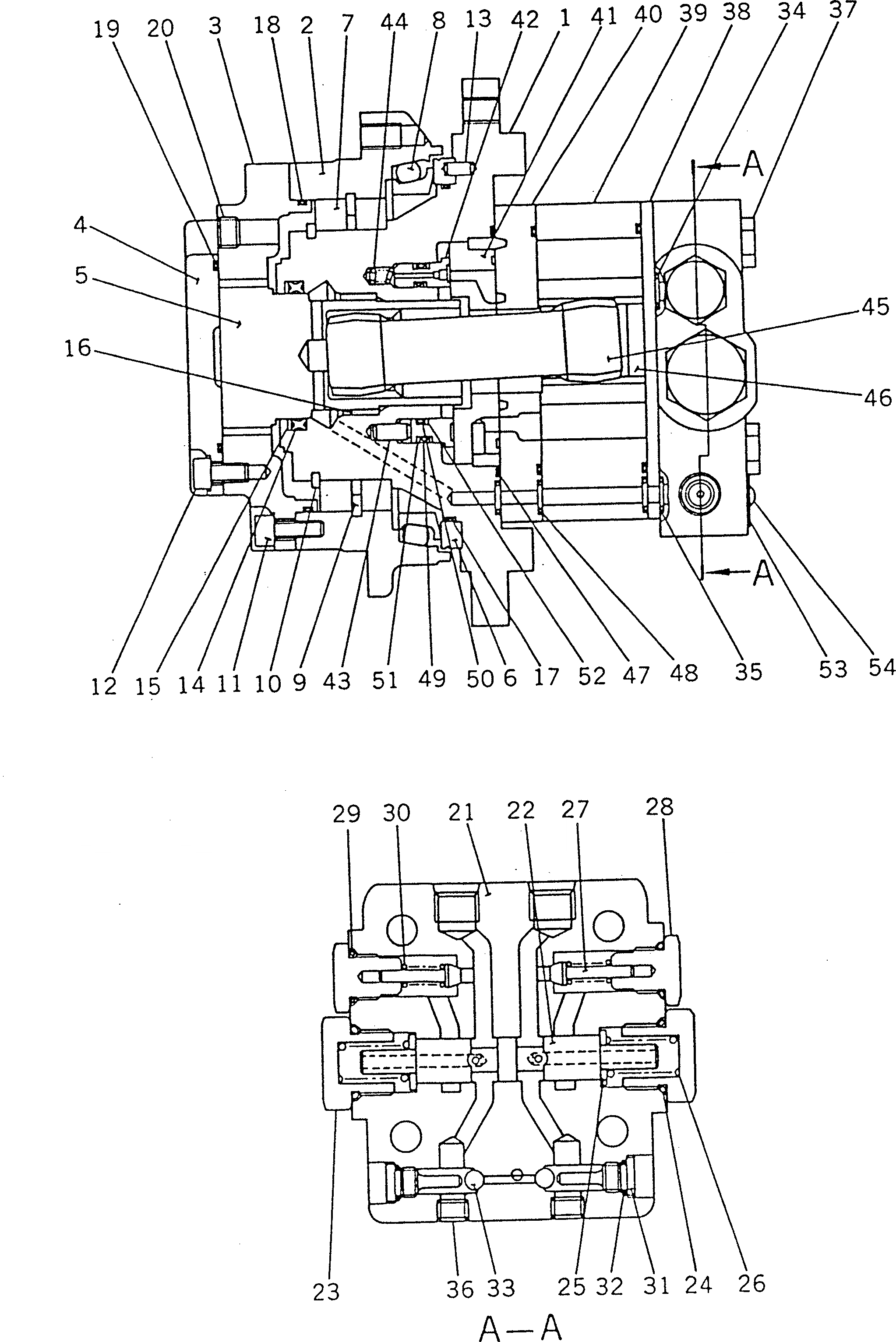

Запчасти Komatsu PC02-1 МОТОР ХОДА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
21R-60-14000
TRAVEL MOTOR ASS'Y
|$1
21R-60-14100
CASE ASS'Y
1
21R-60-14120
CASE
2
21R-60-14130
WHEEL
3
21R-60-14140
COVER
4
21R-60-14150
COVER
5
21R-60-14160
SHAFT
6
21R-60-14170
PLATE,SEAL
7
21R-60-14180
BEARING
8
21R-60-14190
SEAL,OIL
9
21R-60-14210
RING
10
21R-60-14220
RING
11
21R-60-14230
BOLT
12
21R-60-14240
BOLT
13
21R-60-14250
PIN
14
21R-60-14320
RING,SEAL (K1)
15
21R-60-14330
RING,BACK-UP (K1)
16
21R-60-14340
BUSHING
17
21R-60-14350
O-RING (K1)
18
21R-60-14360
O-RING (K1)
19
21R-60-14370
O-RING (K1)
20
21R-60-14380
PLUG
|$22
21R-60-14400
END COVER ASS'Y
21
21R-60-14410
COVER
22
21R-60-14420
SPOOL
23
21R-60-14430
PLUG
24
21R-60-14520
O-RING (K2)
25
21R-60-14530
WASHER
26
21R-60-14540
SPRING
27
21R-60-14550
POPPET
28
21R-60-14560
PLUG
29
21R-60-14570
O-RING (K2)
30
21R-60-14580
SPRING
31
21R-60-14590
PLUG
32
21R-60-14610
O-RING (K2)
33
21R-60-14620
BALL
34
21R-60-14630
O-RING (K2)
35
21R-60-14640
O-RING (K2)
36
21R-60-14650
PLUG
37
21R-60-14660
BOLT
38
21R-60-14670
SPACER
39
21R-60-14680
GEROLER ASS'Y
40
21R-60-14690
PLATE
41
21R-60-14710
VALVE
42
21R-60-14720
PLATE,BALANCING
43
21R-60-14730
PIN
44
21R-60-14740
SPRING
45
21R-60-14750
SHAFT,DRIVE
46
21R-60-14760
SPACER
47
21R-60-14820
O-RING (K3)
48
21R-60-14830
O-RING (K3)
49
21R-60-14840
O-RING (K3)
50
21R-60-14850
O-RING (K3)
51
21R-60-14860
RING,BACK-UP (K3)
52
21R-60-14870
RING,BACK-UP (K3)
53
21R-60-14880
PLATE, NAME
54
21R-60-14890
RIVET
K1
21R-60-14310
SEAL KIT,(A)
14
21R-60-14320
RING,SEAL
15
21R-60-14330
RING,BACK-UP
17
21R-60-14350
O-RING
18
21R-60-14360
O-RING
19
21R-60-14370
O-RING
K2
21R-60-14510
SEAL KIT,(B)
24
21R-60-14520
O-RING
29
21R-60-14570
O-RING
32
21R-60-14610
O-RING
34
21R-60-14630
O-RING
35
21R-60-14640
O-RING
K3
21R-60-14810
SEAL KIT,(C)
47
21R-60-14820
O-RING
48
21R-60-14830
O-RING
49
21R-60-14840
O-RING
50
21R-60-14850
O-RING
51
21R-60-14860
RING,BACK-UP
52
21R-60-14870
RING,BACK-UP
Выбрано товаров: 76
