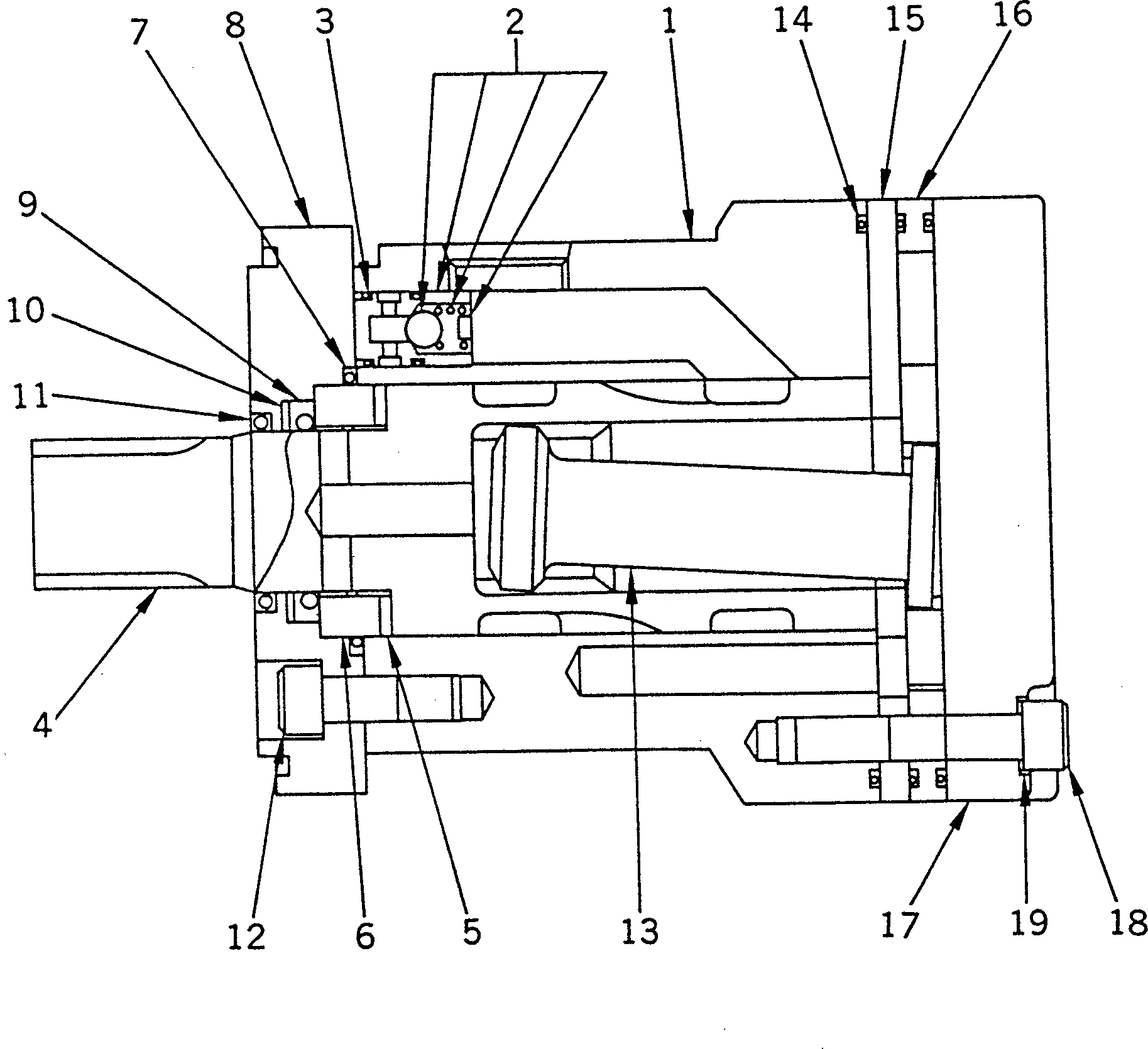

Запчасти Komatsu PC01-1A МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

21A-60-13100

SWING MOTOR ASS'Y

1

21S-60-13120

HOUSING

2

21S-60-13210

BALL CHECK SUB A.

3

21S-60-13350

O-RING (K1)

4

21A-60-13140

SHAFT,OUTPUT

5

21S-60-13240

BEARING,THRUST

6

21S-60-13230

BEARING,THRUST

7

21S-60-13330

O-RING (K1)

8

21R-60-13110

FLANGE

9

21S-60-13310

SEAL,OIL (K1)

10

21S-60-13360

WASHER,BACK-UP (K1)

11

21S-60-13320

SEAL,DUST (K1)

12

21S-60-13250

SCREW

13

21A-60-13130

SHAFT,DRIVE

14

21S-60-13340

O-RING (K1)

15

21S-60-13130

SPACER

16

21A-60-13120

GEROLER

17

21R-60-13150

END,CAP

18

21A-60-13110

SCREW

19

21R-60-13180

WASHER,SEAL

K1

21S-60-13300

SEAL KIT

|3

21S-60-13350

O-RING

|7

21S-60-13330

O-RING

|9

21S-60-13310

SEAL,OIL

|10

21S-60-13360

WASHER,BACK-UP

|11

21S-60-13320

SEAL,DUST

|14

21S-60-13340

O-RING
