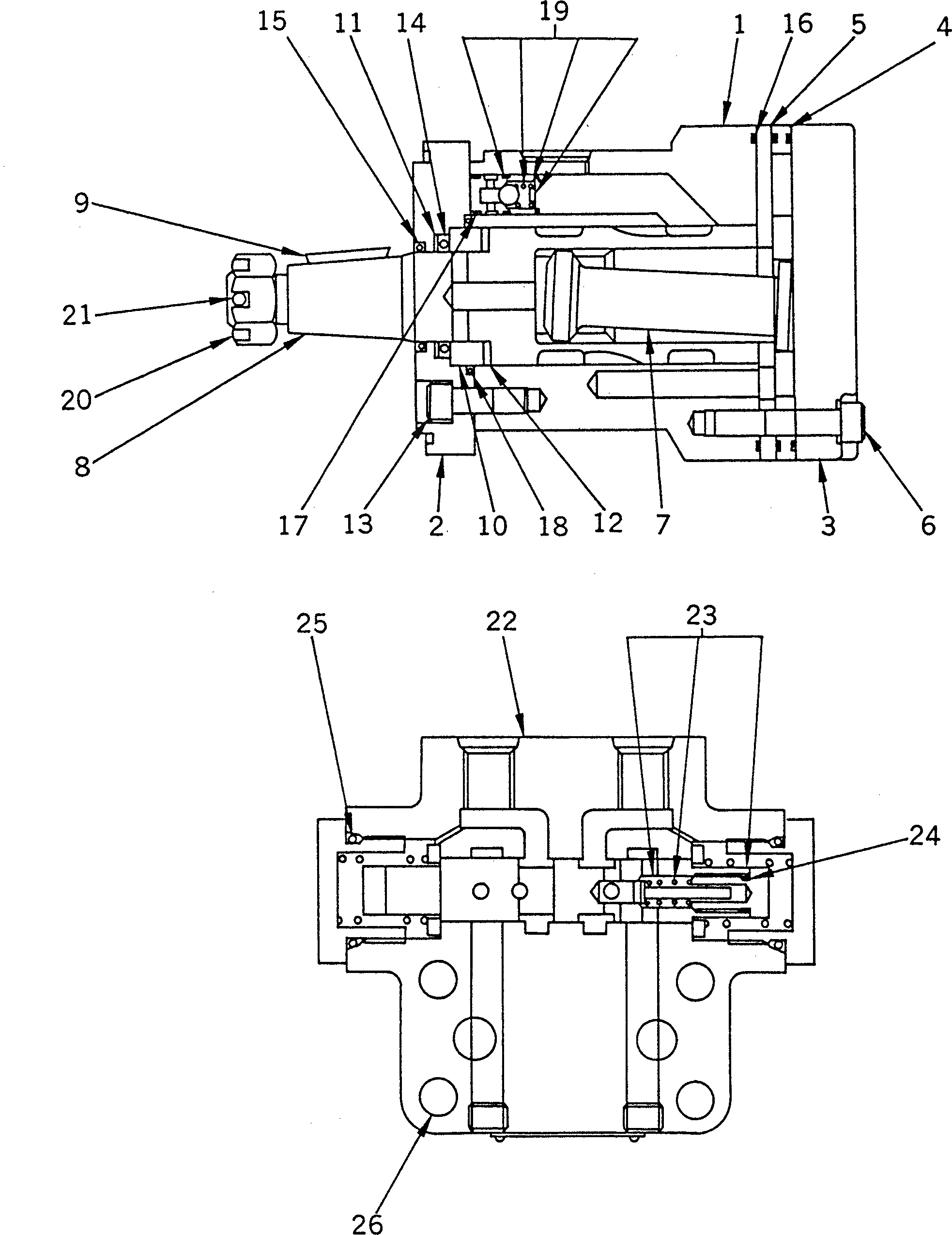

Запчасти Komatsu PC01-1A МОТОР ХОДА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

21A-60-14000

TRAVEL MOTOR ASS'Y

|1

21A-60-14100

MOTOR ASS'Y

1

21A-60-14160

HOUSING

2

21R-60-13110

FLANGE

3

21R-60-13150

END,CAP

4

21A-60-14120

GEROLER

5

21S-60-13130

SPACER

6

21A-60-14110

SCREW

7

21A-60-14130

SHAFT,DRIVE

8

21A-60-14150

SHAFT,DRIVE

9

21A-60-14140

KEY

10

21S-60-13230

BEARING,THRUST

11

21S-60-13360

WASHER,BUCK-UP (K1)

12

21S-60-13240

BEARING,THRUST

13

21S-60-13250

SCREW

14

21S-60-13311

SEAL,OIL (K1)

15

21S-60-13320

SEAL,DUST (K1)

16

21S-60-13340

O-RING (K1)

17

21S-60-13350

O-RING (K1)

18

21S-60-13330

O-RING (K1)

19

21S-60-13210

BALL CHECK SUB A.

20

01593-31813

NUT

21

04050-14028

PIN,COTTER

22

21A-60-14200

VALVE ASS'Y,COUNTER BALANCE

23

21A-60-14210

POPPET SUB ASS'Y

24

21A-60-14220

O-RING

25

21A-60-14230

O-RING

26

01252-31055

BOLT

K1

21S-60-13300

SEAL KIT

|11

21S-60-13360

WASHER,BUCK-UP

|14

21S-60-13311

SEAL,OIL

|15

21S-60-13320

SEAL,DUST

|16

21S-60-13340

O-RING

|17

21S-60-13350

O-RING

|18

21S-60-13330

O-RING
