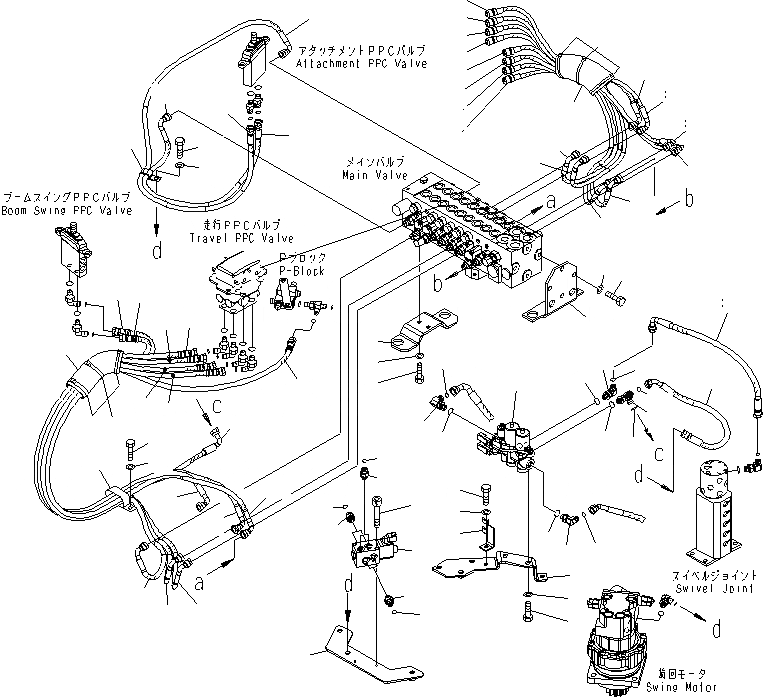

Запчасти Komatsu MX182 ОСНОВН. КЛАПАН (КЛАПАН EPC И PPC ЛИНИЯ) ( НАВЕСН.ОБОРУД) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
460-163
BRACKET
2
107-966
BOLT
3
455-220
WASHER
4
460-161
BRACKET
5
107-965
BOLT
6
455-225
WASHER
7
458-897
VALVE ASS'Y
8
105-274
BOLT
9
455-220
WASHER
10
460-173
BRACKET
11
452-308
ELBOW
12
453-523
O-RING
13
453-688
O-RING
14
452-286
ELBOW
15
453-523
O-RING
16
453-689
O-RING
17
452-308
ELBOW
18
453-523
O-RING
19
453-688
O-RING
20
460-473
HOSE
21
460-335
ELBOW
22
453-523
O-RING
23
453-688
O-RING
24
460-492
HOSE,GREEN¤ RED
|24
450-125
BAND¤ GREEN
|24
450-127
BAND¤ RED
25
460-473
HOSE
26
460-174
BRACKET
27
107-962
BOLT
28
455-225
WASHER
29
460-916
SOLENOID VALVE
30
460-129
BOLT
31
460-180
BRACKET
32
460-565
NIPPLE,WITH O-RING
33
453-688
O-RING
34
460-496
HOSE,GREEN
|34
450-125
BAND¤ GREEN
35
460-496
HOSE,WHITE
|35
450-128
BAND¤ WHITE
36
460-489
HOSE,BROWN¤ YELLOW
|36
450-124
BAND¤ BROWN
|36
450-129
BAND¤ YELLOW
37
460-479
HOSE,BLACK¤ YELLOW
|37
450-122
BAND¤ BLACK
|37
450-129
BAND¤ YELLOW
38
460-481
HOSE,BLACK
|38
450-122
BAND¤ BLACK
39
460-481
HOSE,RED
|39
450-127
BAND¤ RED
40
460-502
HOSE,WHITE¤ BLUE
|40
450-128
BAND¤ WHITE
|40
450-123
BAND¤ BLUE
41
460-503
HOSE,WHITE¤ WHITE
|41
450-128
BAND¤ WHITE
42
460-498
HOSE,ORANGE
|42
450-126
BAND¤ ORANGE
43
460-490
HOSE,BROWN
|43
450-124
BAND¤ BROWN
44
460-497
HOSE,ORANGE¤ YELLOW
|44
450-126
BAND¤ ORANGE
|44
450-129
BAND¤ YELLOW
45
460-494
HOSE,GREEN¤ YELLOW
|45
450-125
BAND¤ GREEN
|45
450-129
BAND¤ YELLOW
46
460-487
HOSE,YELLOW
|46
450-129
BAND¤ YELLOW
47
460-487
HOSE,BLUE
|47
450-123
BAND¤ BLUE
48
460-494
HOSE,WHITE¤ RED
|48
450-128
BAND¤ WHITE
|48
450-127
BAND¤ RED
49
460-499
HOSE,RED¤ RED
|49
450-127
BAND¤ RED
50
458-756
SHEET
51
450-130
BAND
52
460-252
CLIP
53
105-274
BOLT
54
455-220
WASHER
55
451-485
CLIP
56
107-966
BOLT
57
455-220
WASHER
