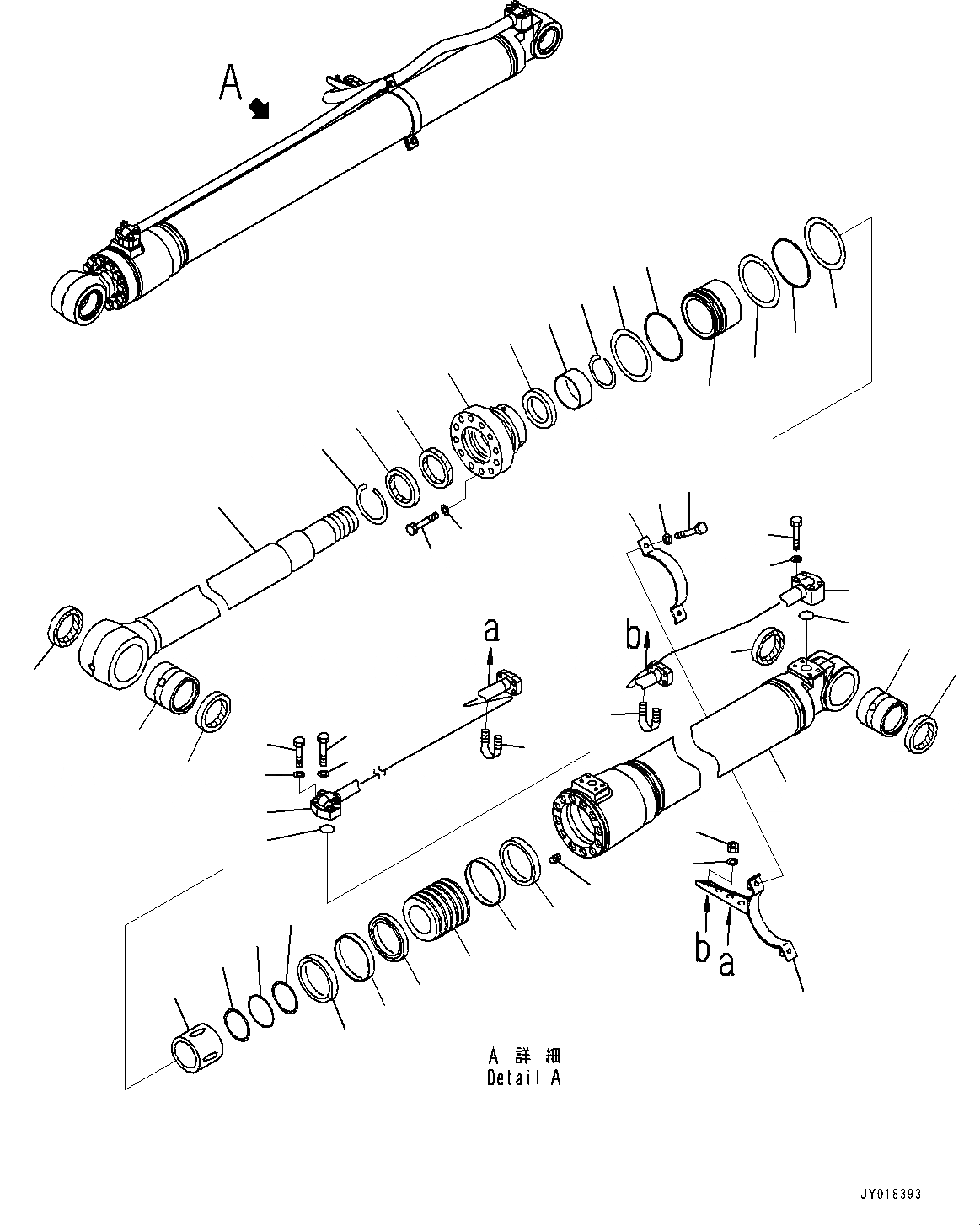

Запчасти Komatsu HB215LC-1M0 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№-) ЦИЛИНДР СТРЕЛЫ, 7MM УСИЛ. ТИП, ЧАС. СМАЗКА INTERVAL

|$0

707-E1-01450

Cylinder Assembly

1

707-13-12740

Cylinder

2

707-58-85430

Rod, Piston

3

205-70-71360

Bushing

4

07145-00070

Seal, Dust, (Kit : K04)

5

707-76-80010

Bushing

6

07145-00080

Seal, Dust, (Kit : K04)

7

707-71-34680

Collar

8

707-35-31110

Ring, Back-up, (Kit : K04)

9

07000-B5110

O-ring, (Kit : K04)

10

707-71-70800

Plunger

11

707-27-12650

Head, Cylinder

12

707-56-85740

Seal, Dust, (Kit : K04)

13

07179-13099

Ring, Snap

14

707-51-85860

Packing, Rod, (Kit : K04)

15

707-51-85650

Ring, Buffer, (Kit : K04)

16

707-52-90611

Bushing

17

707-35-31110

Ring, Back-up, (Kit : K04)

18

07000-B5110

O-ring, (Kit : K04)

19

01010-81670

Bolt

20

01643-51645

Washer

21

707-75-85110

Ring, Snap

22

707-36-12851

Piston

23

707-44-12150

Ring, Piston, (Kit : K04)

24

707-39-12140

Ring, Wear, (Kit : K04)

25

707-44-12911

Ring

26

07000-B5075

O-ring, (Kit : K04)

27

707-35-30750

Ring, Back-up, (Kit : K04)

28

01310-01216

Screw

29

707-86-69270

Tube

30

707-86-16230

Tube

31

707-88-51430

Bracket

32

07372-21060

Bolt

33

01643-51032

Washer

34

07372-21045

Bolt

35

01643-51032

Washer

36

707-88-21620

Band

37

07000-13030

O-ring, (Kit : K04)

38

07000-13035

O-ring, (Kit : K04)

39

07372-21035

Bolt

40

01643-51032

Washer

41

07283-32738

Clip, Pipe

42

07283-33442

Clip, Pipe

43

01597-01009

Nut

44

01643-31032

Washer
