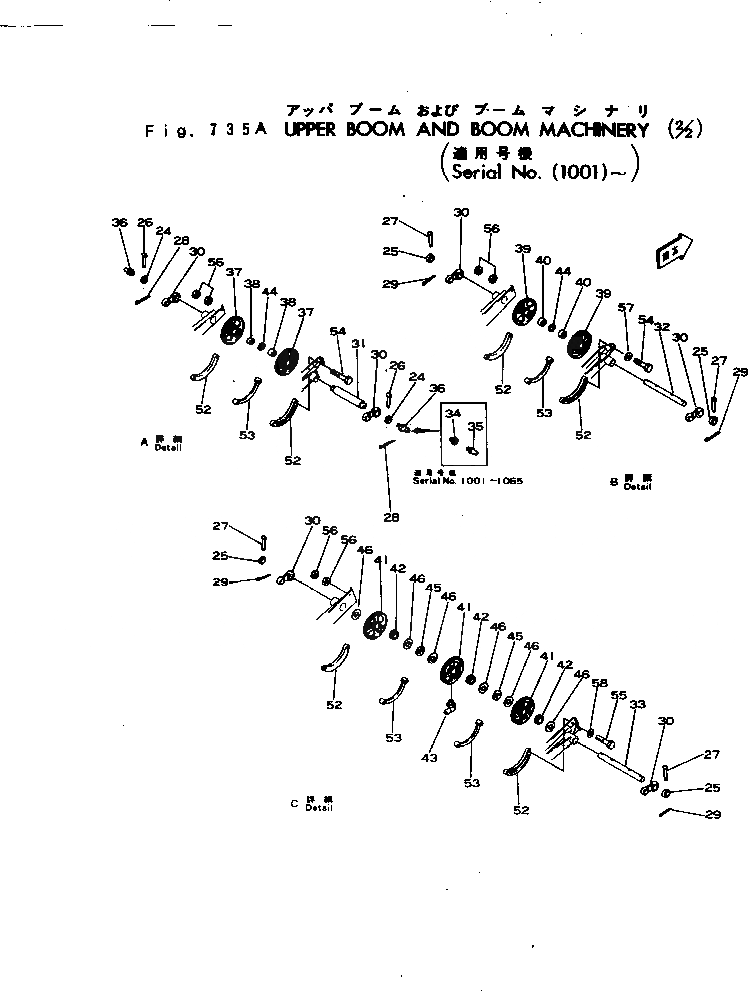

Запчасти Komatsu 22-BCM-1 ВЕРХН. СТРЕЛА И СТРЕЛА MACHINERY (/) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|1
22-580173-00
BOOM MACHINERY ASS'Y,FOR C TYPE
|1
22-580172-00
BOOM MACHINERY ASS'Y,FOR B TYPE
|1
22-580171-00
BOOM MACHINERY ASS'Y,FOR A TYPE
|1
22-580176-00
UPPER BOOM ASS'Y,FOR C TYPE
|1
22-580175-00
UPPER BOOM ASS'Y,FOR B TYPE
|1
22-580174-00
UPPER BOOM ASS'Y,FOR A TYPE
1
21-851863-42
SECTION,UPPER BOOM 5.6M¤ (A)
2
21-851865-43
SECTION,UPPER BOOM 6.1M¤ (B)
3
21-861206-21
SECTION,UPPER BOOM 4.6M¤ (C)
4
22-560021-01
PLATE¤ NAME
5
22-590122-01
SCREW
6
02205-00609
NUT
7
07003-11015
GASKET
|7
22-400289-01
WASHER,(A)
8
01602-00929
WASHER
9
02030-01283
BOLT
10
02030-01289
BOLT,(B)
11
02030-21289
BOLT,(C)
12
02030-01270
BOLT,(A)
13
02030-01276
BOLT,(B)
14
02030-21276
BOLT,(C)
15
02215-01216
NUT,(A AND B)
16
02215-11216
NUT,(C)
17
22-401199-01
GUARD,ROPE¤ SECTION¤ (A)
18
21-407425-01
GUARD,ROPE¤ SECTION¤ (B)
19
02011-00827
BOLT,(A)
20
02011-00821
BOLT,(B)
21
02205-00812
NUT,(A AND B)
22
01602-01338
WASHER,(A AND B)
23
01640-01323
WASHER,(A)
24
21-524156-01
COLLAR,BOTH SIDE¤ (A)
25
21-407902-01
COLLAR,BOTH SIDE¤ (B AND C)
26
21-520872-01
T-BOLT,(A)
27
21-500764-01
T-BOLT,(B AND C)
28
04050-03025
PIN,(A)
29
04050-03030
PIN,(B AND C)
30
21-524155-01
LINK
31
21-607742-01
PIN,(A)
32
21-607534-01
PIN,(B)
33
21-623686-01
PIN,(C)
34
00200-15250
BUSHING,(A)
35
00570-43760
FITTING,(A)
36
00570-45010
FITTING
|37
22-580323-00
SHEAVE ASS'Y,BOOM POINT¤ (A)
37
SHEAVE,(A)
38
21-510889-01
BUSHING,(A)
|39
22-580270-00
SHEAVE ASS'Y,BOOM POINT¤ (B)
39
21-617195-01
SHEAVE,(B)
40
21-510739-01
BUSHING,(B)
41
21-710045-01
SHEAVE,(C)
42
22-401716-01
BEARING,(C)
43
00570-44260
FITTING,(C)
44
21-529658-01
SPACER,(A AND B)
45
21-514360-01
SPACER,(C)
46
21-514355-01
WASHER,(C)
47
21-288113-21
GUARD,ROPE¤ UPPER¤ (A)
48
21-277774-21
GUARD,ROPE¤ UPPER¤ (B)
49
22-450995-21
GUARD,ROPE¤ UPPER¤ (C)
50
02205-11219
NUT,(A AND B)
51
02206-11211
NUT,(C)
52
21-607552-01
GUARD,ROPE¤ BOTH SIDE
53
21-607551-01
GUARD,ROPE¤ CENTER¤ (C)
|53
21-607551-01
GUARD,ROPE¤ CENTER¤ (A AND B)
54
22-590215-01
BOLT,(B)
|54
22-590215-01
BOLT,(A)
55
22-402706-01
BOLT,(C)
56
02205-11219
NUT,(B AND C)
|56
02205-11219
NUT,(A)
57
21-529833-01
SPACER,(B)
58
22-402707-01
SPACER,(C)
59
21-272474-21
ANCHOR
60
21-526175-01
PIN
61
04050-08055
PIN
|62
22-580324-00
DEFLECTOR ASS'Y,(C)
62
21-623732-21
BRACKET
63
21-623733-21
BRACKET
64
21-612369-21
ROLLER
65
02030-20522
BOLT
66
01602-00825
WASHER
67
22-402052-01
BEARING
68
02030-20625
BOLT
69
02215-10608
NUT
70
01602-00929
WASHER
71
21-623731-21
GUARD
72
22-400759-01
SPACER,FOR PILE DRIVER¤ (A)
73
22-401002-01
SPACER,FOR PILE DRIVER¤ (B)
