Запчасти Komatsu 22-BCM-1 ВЕРХН. СТРЕЛА И СТРЕЛА MACHINERY (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

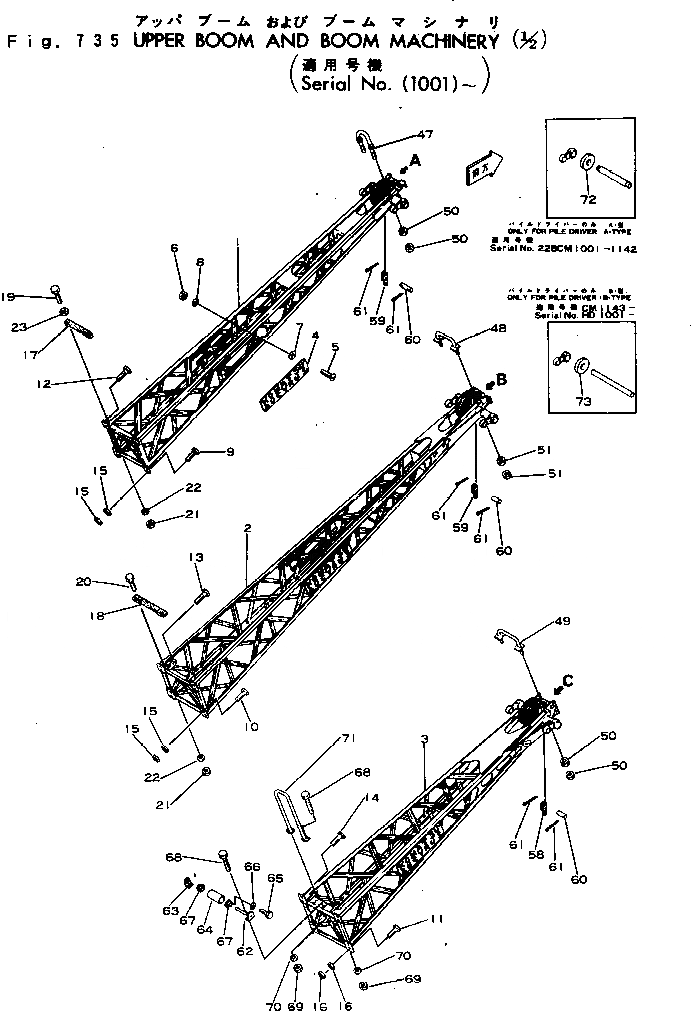

Схема запчастей Komatsu 22-BCM-1 - ВЕРХН. СТРЕЛА И СТРЕЛА MACHINERY (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

|1

22-580173-00

BOOM MACHINERY ASS'Y,FOR C TYPE

|1

22-580172-00

BOOM MACHINERY ASS'Y,FOR B TYPE

|1

22-580171-00

BOOM MACHINERY ASS'Y,FOR A TYPE

|1

22-580176-00

UPPER BOOM ASS'Y,FOR C TYPE

|1

22-580175-00

UPPER BOOM ASS'Y,FOR B TYPE

|1

22-580174-00

UPPER BOOM ASS'Y,FOR A TYPE

1

21-851863-42

SECTION,UPPER BOOM 5.6M¤ (A)

2

21-851865-43

SECTION,UPPER BOOM 6.1M¤ (B)

3

21-861206-21

SECTION,UPPER BOOM 4.6M¤ (C)

4

22-560021-01

PLATE¤ NAME

5

22-590122-01

SCREW

6

02205-00609

NUT

7

07003-11015

GASKET

|7

22-400289-01

WASHER,(A)

8

01602-00929

WASHER

9

02030-01283

BOLT

10

02030-01289

BOLT,(B)

11

02030-21289

BOLT,(C)

12

02030-01270

BOLT,(A)

13

02030-01276

BOLT,(B)

14

02030-21276

BOLT,(C)

15

02215-01216

NUT,(A AND B)

16

02215-11216

NUT,(C)

17

22-401199-01

GUARD,ROPE¤ SECTION¤ (A)

18

21-407425-01

GUARD,ROPE¤ SECTION¤ (B)

19

02011-00827

BOLT,(A)

20

02011-00821

BOLT,(B)

21

02205-00812

NUT,(A AND B)

22

01602-01338

WASHER,(A AND B)

23

01640-01323

WASHER,(A)

24

21-524156-01

COLLAR,BOTH SIDE¤ (A)

25

21-407902-01

COLLAR,BOTH SIDE¤ (B AND C)

26

21-520872-01

T-BOLT,(A)

27

21-500764-01

T-BOLT,(B AND C)

28

04050-03025

PIN,(A)

29

04050-03030

PIN,(B AND C)

30

21-524155-01

LINK

31

21-607742-01

PIN,(A)

32

21-607534-01

PIN,(B)

33

21-623686-01

PIN,(C)

34

00200-15250

BUSHING,(A)

35

00570-43760

FITTING,(A)

36

00570-45010

FITTING

|37

22-580323-00

SHEAVE ASS'Y,BOOM POINT¤ (A)

37

SHEAVE,(A)

38

21-510889-01

BUSHING,(A)

|39

22-580270-00

SHEAVE ASS'Y,BOOM POINT¤ (B)

39

21-617195-01

SHEAVE,(B)

40

21-510739-01

BUSHING,(B)

41

21-710045-01

SHEAVE,(C)

42

22-401716-01

BEARING,(C)

43

00570-44260

FITTING,(C)

44

21-529658-01

SPACER,(A AND B)

45

21-514360-01

SPACER,(C)

46

21-514355-01

WASHER,(C)

47

21-288113-21

GUARD,ROPE¤ UPPER¤ (A)

48

21-277774-21

GUARD,ROPE¤ UPPER¤ (B)

49

22-450995-21

GUARD,ROPE¤ UPPER¤ (C)

50

02205-11219

NUT,(A AND B)

51

02206-11211

NUT,(C)

52

21-607552-01

GUARD,ROPE¤ BOTH SIDE

53

21-607551-01

GUARD,ROPE¤ CENTER¤ (C)

|53

21-607551-01

GUARD,ROPE¤ CENTER¤ (A AND B)

54

22-590215-01

BOLT,(B)

|54

22-590215-01

BOLT,(A)

55

22-402706-01

BOLT,(C)

56

02205-11219

NUT,(B AND C)

|56

02205-11219

NUT,(A)

57

21-529833-01

SPACER,(B)

58

22-402707-01

SPACER,(C)

59

21-272474-21

ANCHOR

60

21-526175-01

PIN

61

04050-08055

PIN

|62

22-580324-00

DEFLECTOR ASS'Y,(C)

62

21-623732-21

BRACKET

63

21-623733-21

BRACKET

64

21-612369-21

ROLLER

65

02030-20522

BOLT

66

01602-00825

WASHER

67

22-402052-01

BEARING

68

02030-20625

BOLT

69

02215-10608

NUT

70

01602-00929

WASHER

71

21-623731-21

GUARD

72

22-400759-01

SPACER,FOR PILE DRIVER¤ (A)

73

22-401002-01

SPACER,FOR PILE DRIVER¤ (B)

Выбрано товаров: 86
