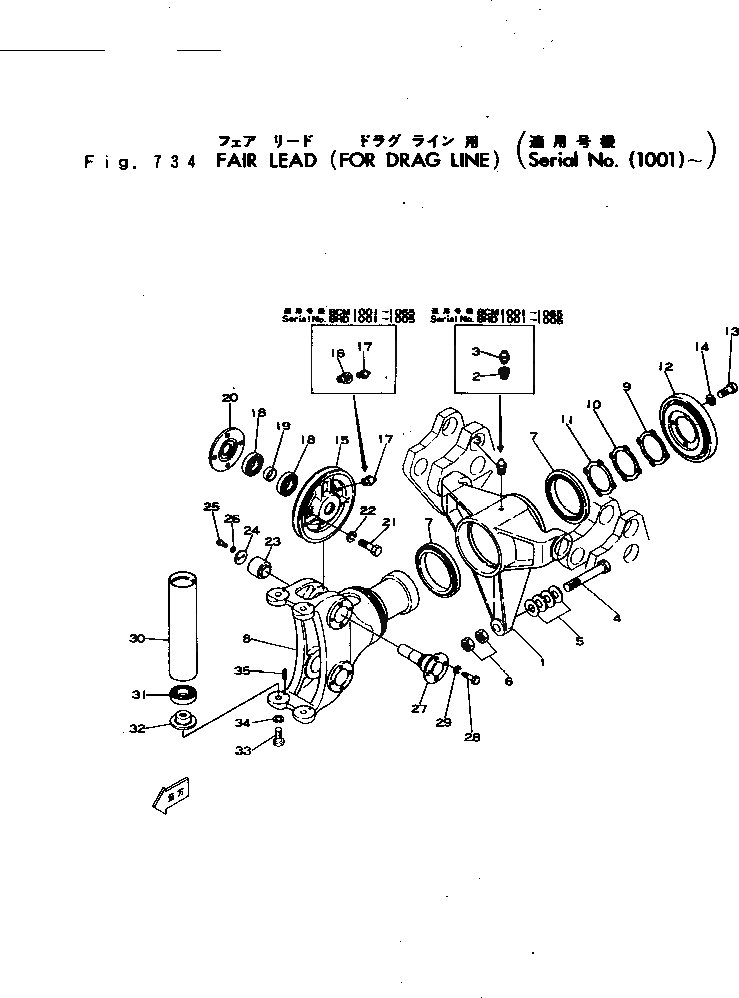

Запчасти Komatsu 22-BCM-1 FВОЗД. LEAD (ДЛЯ DRAG ЛИНИЯ) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580170-00

FAIRLEAD ASS'Y

|1

22-580169-00

FAIRLEAD ASS'Y

|1

22-580168-00

FAIRLEAD ASS'Y

1

21-804597-01

BRACKET,REVOLVING FRAME

2

00200-15250

BUSHING

3

00570-43760

FITTING

4

22-590149-01

BOLT

5

00039-52100

WASHER

6

02205-01625

NUT

7

22-590147-01

BEARING,ROLLER

8

21-806199-01

FRAME,SHEAVE AND ROLLER

|9

22-580096-00

SUSPENSION SHEAVE A. (KIT)

9

SHIM¤ 0.1MM

10

SHIM¤ 0.2MM

11

SHIM¤ 0.5MM

12

21-279601-01

COVER

13

02030-00832

BOLT

14

01602-01338

WASHER

15

21-714465-01

SHEAVE,FRAME

|15

21-709838-02

SHEAVE,FRAME

16

00200-15250

BUSHING

17

00570-43760

FITTING

18

22-590145-01

BEARING,BALL

19

21-503222-01

SPACER

20

21-503221-01

FLANGE,SHEAVE

21

02030-00632

BOLT

22

01602-00929

WASHER

23

21-503220-01

SPACER

24

21-282831-01

WASHER

25

02030-00625

BOLT

26

01602-00929

WASHER

27

21-601496-21

PIN

28

02030-00832

BOLT

29

01602-01338

WASHER

30

21-617048-02

ROLLER,ROPE GUIDE

|30

21-617048-01

ROLLER,ROPE GUIDE

31

06034-06210

BEARING,BALL

32

21-520566-01

RETAINER

33

02030-01251

BOLT

34

01601-01948

WASHER

35

22-400025-01

PIN
