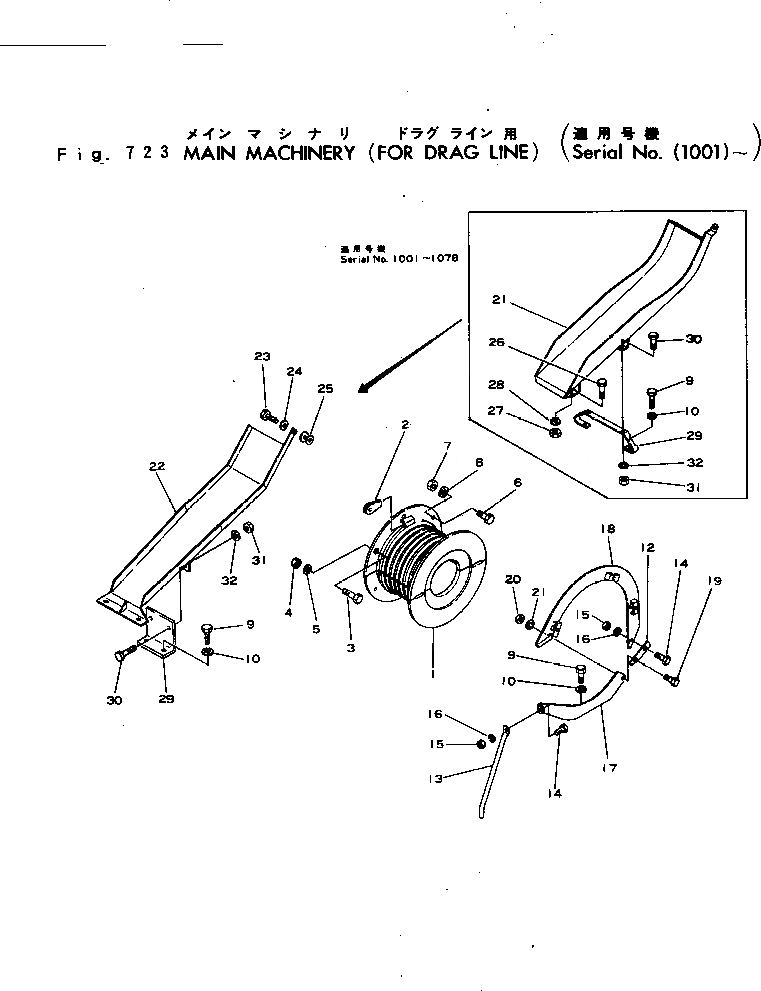

Запчасти Komatsu 22-BCM-1 ОСНОВН. MACHINERY (ДЛЯ DRAG ЛИНИЯ) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580163-00

DRUM ASS'Y

1

21-215101-01

DRUM,SPLIT TYPE

2

21-526462-01

WEDGE

3

21-521257-01

BOLT,REAMER

4

02215-01014

NUT

5

01602-01648

WASHER

6

21-521269-01

BOLT,REAMER

7

02215-01014

NUT

8

01602-01648

WASHER

|9

22-580165-00

ROPE GUARD ASS'Y

|9

22-580164-00

ROPE GUARD ASS'Y

9

02010-00625

BOLT

|9

22-590021-01

BOLT

10

01602-00929

WASHER

11

02205-00609

NUT

12

22-400080-01

PLATE

13

21-293033-01

GUARD,LOWER GUARD

14

02030-00625

BOLT

15

02215-00608

NUT

16

01602-00929

WASHER

17

21-607700-01

GUARD,ROPE¤ LOWER

18

22-450021-21

GUARD,ROPE¤ UPPER

19

02010-00632

BOLT

20

02206-00606

NUT

21

01602-00929

WASHER

|22

22-580167-00

MUD GUARD ASS'Y

|22

22-580166-00

MUD GUARD ASS'Y

22

21-718243-21

GUARD,MUD

|22

21-230060-21

GUARD,MUD

|$$30

(21-718243-21{22-402999-01)}

23

02010-00664

BOLT

24

01602-00929

WASHER

25

00039-51800

WASHER

26

02010-01057

BOLT

27

02205-01015

NUT

28

01601-01640

WASHER

29

22-402999-01

SUPPORT,MUD GUARD

|29

21-287745-01

SUPPORT,MUD GUARD

|$$39

(22-402999-01{21-718243-21)}

30

02010-00632

BOLT

31

02205-00609

NUT

32

01602-00929

WASHER
