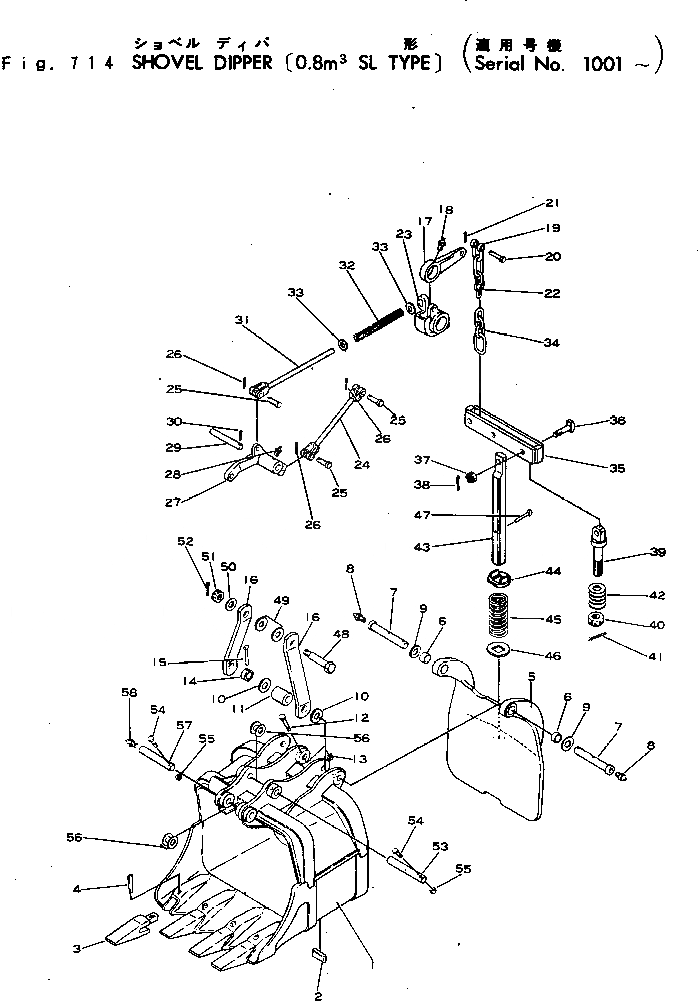

Запчасти Komatsu 22-BCM-1 ПОГРУЗ. DIPPER (.8M SL ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580472-00

DIPPER ASS'Y,0.8M3¤ S.G TYPE

|1

22-580473-00

BODY ASS'Y

1

BODY

2

21-501401-01

STOPPER,LATCH

3

22-540345-01

TOOTH,1 PIECE STANDARD TYPE

4

21-502990-01

WEDGE

|5

22-580474-00

DOOR ASS'Y

5

DOOR

6

21-529011-01

BUSHING

7

21-517223-01

PIN,DOOR HINGE

8

00570-45010

FITTING

9

00039-52900

WASHER

10

21-500972-01

WASHER

11

22-401772-01

SPACER

12

02011-01227

BOLT

13

00027-86490

NUT

14

21-288884-01

SEPARATER,DOOR HINGE

15

22-590230-01

T-BOLT

16

21-289776-01

PLATE,PITCH BRACE

17

21-520815-01

LEVER,TRIP

18

00570-43760

FITTING

19

22-400195-01

SHACKLE

20

22-400274-01

PIN

21

04050-04050

PIN

22

21-500547-21

CHAIN

23

21-617140-01

BELLCRANK

24

21-501456-01

ROD,TRIP

25

22-590050-01

PIN

26

04050-03025

PIN

27

21-617139-01

LEVER,TRIP

28

00570-43760

FITTING

29

21-520817-01

PIN

30

04050-06050

PIN

31

21-520818-21

ROD,SPRING GUIDE

32

21-505451-01

SPRING

33

00039-51800

WASHER

34

22-450037-21

CHAIN,TRIP

35

22-450560-21

LEVER,LATCH

36

22-400179-01

BOLT

37

22-590094-01

NUT,CASTLE

38

04050-05040

PIN

39

22-450036-21

BOLT

40

22-590095-01

NUT,CASTLE

41

04050-06065

PIN

42

00039-52200

WASHER

43

21-516094-01

LATCH

44

21-612528-21

SEAT

45

21-178750-01

SPRING,LATCH

46

21-516798-01

WASHER

47

22-590104-01

T-BOLT

48

21-514748-01

PIN,BRACE

49

22-401712-01

WASHER

50

21-500138-01

WASHER

51

21-500137-01

NUT

52

04050-00090

PIN

53

21-517224-01

PIN,DIPPER HANDLE

54

02011-01227

BOLT

55

00027-86490

NUT

56

21-500972-01

WASHER

57

21-517225-01

PIN,PAD LOCK

58

00570-45010

FITTING
