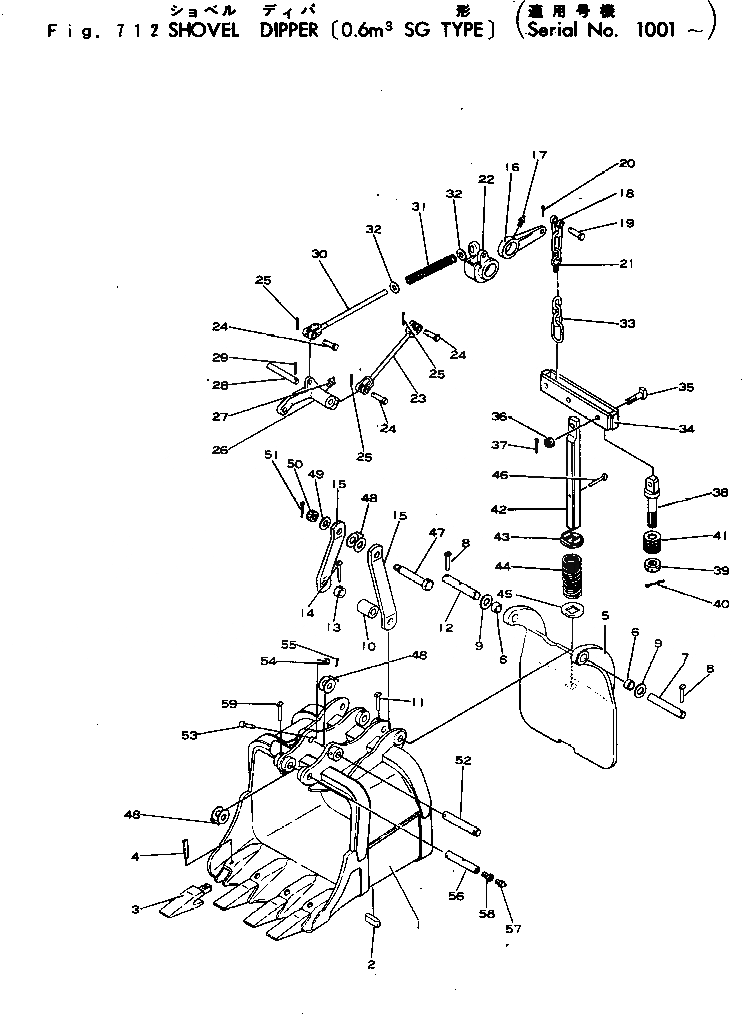

Запчасти Komatsu 22-BCM-1 ПОГРУЗ. DIPPER (.M SG ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580470-00

DIPPER ASS'Y,0.6M3¤ S.G TYPE

|1

22-580469-00

DIPPER ASS'Y,0.6M3¤ S.G TYPE

|1

22-580471-00

BODY ASS'Y

1

BODY

2

21-501401-01

STOPPER,LATCH

3

22-540345-01

TOOTH,1 PIECE STANDARD TYPE

4

21-502990-01

WEDGE

|5

22-580475-00

DOOR ASS'Y

5

DOOR

6

21-529011-01

BUSHING

7

21-290839-01

PIN

8

22-590102-01

T-BOLT

9

00039-52900

WASHER

10

21-529595-01

SPACER

11

22-590101-01

T-BOLT

12

21-290850-01

PIN

13

21-288884-01

SEPARATER,DOOR HINGE

14

22-590103-01

T-BOLT

15

21-289776-01

PLATE,PITCH BRACE

16

21-520815-01

LEVER,TRIP

17

00570-43760

FITTING

18

22-400195-01

SHACKLE

19

22-400274-01

PIN

20

04050-04050

PIN

21

21-500547-21

CHAIN

22

21-617140-01

BELLCRANK

23

21-501456-01

ROD,TRIP

24

22-590050-01

PIN

25

04050-03025

PIN

26

21-617139-01

LEVER

27

00570-43760

FITTING

28

21-520817-01

PIN

29

04050-06050

PIN

30

21-520818-21

ROD

31

21-505451-01

SPRING

32

00039-51800

WASHER

33

22-450037-21

CHAIN,TRIP

34

22-450560-21

LEVER,LATCH

|34

21-286718-01

LEVER,LATCH

35

22-400179-01

BOLT

36

22-590094-01

NUT,CASTLE

37

04050-05040

PIN

38

22-450036-21

BOLT

39

22-590095-01

NUT,CASTLE

40

04050-06065

PIN

41

00039-52200

WASHER

42

21-516094-01

LATCH

43

21-612528-21

SEAT

44

21-178750-01

SPRING

45

21-516798-01

WASHER

46

22-590104-01

T-BOLT

47

21-288725-01

PIN,BRACE

48

21-500972-01

WASHER

49

21-500138-01

WASHER

50

21-500137-01

NUT,CASTLE

51

04050-00090

PIN

52

22-400165-01

PIN,DIPPER HANDLE

53

22-400167-01

BOLT

54

02205-01015

NUT

55

04050-05030

PIN

56

21-290822-01

PIN,PAD LOCK

57

00570-43760

FITTING

58

00200-15250

BUSHING

59

22-590101-01

T-BOLT
