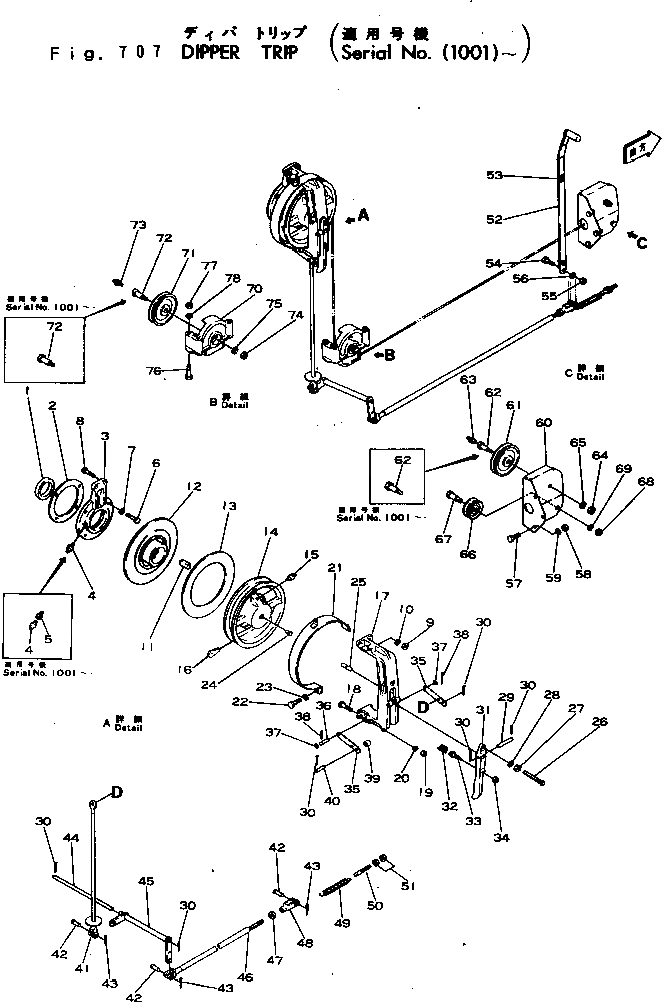

Запчасти Komatsu 22-BCM-1 DIPPER TRIP РАБОЧЕЕ ОБОРУДОВАНИЕ

1

21-520796-01

SPACER

2

21-520059-01

GASKET

3

21-610027-01

BRACKET,DIPPER TRIP CLUTCH

4

00570-44010

FITTING

5

00200-15250

BUSHING

6

02030-20632

BOLT

7

01602-00929

WASHER

8

02010-20638

BOLT

9

02205-10609

NUT

10

01602-00929

WASHER

11

21-507605-09

KEY

|11

21-507605-01

KEY

12

21-617133-01

HUB,DIPPER TRIP CLUTCH

13

21-520808-01

RING,DIPPER TRIP CLUTCH

14

21-617134-01

DRUM,DIPPER TRIP

15

00570-43760

FITTING

16

21-526456-01

WEDGE,DIPPER TRIP DRUM

17

21-715075-01

BRIDGE,DIPPER TRIP

18

02010-20644

BOLT

19

02205-10609

NUT

20

01602-00929

WASHER

21

21-617148-21

GUARD,DIPPER TRIP DRUM

22

02010-20616

BOLT

23

01602-00929

WASHER

24

21-520809-01

PLUG

25

21-520810-01

PIN

26

00037-62980

SCREW

|26

22-400578-01

SCREW

27

02205-10812

NUT

28

00039-51600

WASHER

29

21-287263-01

PIN

30

04050-03025

PIN

31

21-294338-01

LEVER,DIPPER TRIP CLUTCH

32

21-505450-01

SPRING

33

21-520812-01

PIN

34

02205-10609

NUT

35

21-286743-01

ARM,CLUTCH LEVER DRIVING

36

21-520814-01

PIN

37

00039-51400

WASHER

38

04050-03020

PIN

39

21-500304-01

ROLLER,CLUTCH DRIVING

40

22-400073-01

PIN

41

21-294337-21

ROD,VERTICAL

42

22-590049-01

PIN

43

04050-03022

PIN

44

21-520811-01

PIN

45

22-400071-21

BELLCRANK

46

21-520751-21

ROD,HORIZONTAL

47

02215-10811

NUT

48

22-590004-01

YOKE

49

21-500956-01

SPRING,RETURN

50

21-520826-01

BOLT

51

02205-10609

NUT

|52

22-580453-00

LEVER ASS'Y,DIPPER TRIP

52

LEVER

53

22-400368-01

PLATE¤ NAME

54

02010-20632

BOLT

55

02205-10609

NUT

56

01602-00929

WASHER

57

02010-20832

BOLT

|57

22-590020-01

BOLT

58

02205-10812

NUT

59

01602-01338

WASHER

|60

22-580462-00

GUIDE SHEAVE ASS'Y

|60

22-580461-00

GUIDE SHEAVE ASS'Y

60

21-224965-21

BRACKET

61

21-287058-09

SHEAVE,GUIDE

|61

21-287058-01

SHEAVE,GUIDE

62

22-401763-01

PIN

|62

21-520712-01

PIN

63

00570-44510

FITTING

64

02205-01015

NUT

|64

02206-01009

NUT

65

01602-01648

WASHER

66

21-520825-01

ROLLER,ROPE GUIDE

67

21-520712-01

PIN

68

02206-01009

NUT

69

01602-01648

WASHER

|70

22-580465-00

GUIDE SHEAVE ASS'Y

|70

22-580464-00

GUIDE SHEAVE ASS'Y

70

21-224994-01

BRACKET

71

21-287058-09

SHEAVE,GUIDE

|71

21-287058-01

SHEAVE,GUIDE

72

22-401763-01

PIN

|72

21-520712-01

PIN

73

00570-44510

FITTING

74

02205-01015

NUT

|74

02206-01009

NUT

75

01602-01648

WASHER

76

02010-00895

BOLT

77

02205-00812

NUT

78

01602-01338

WASHER
