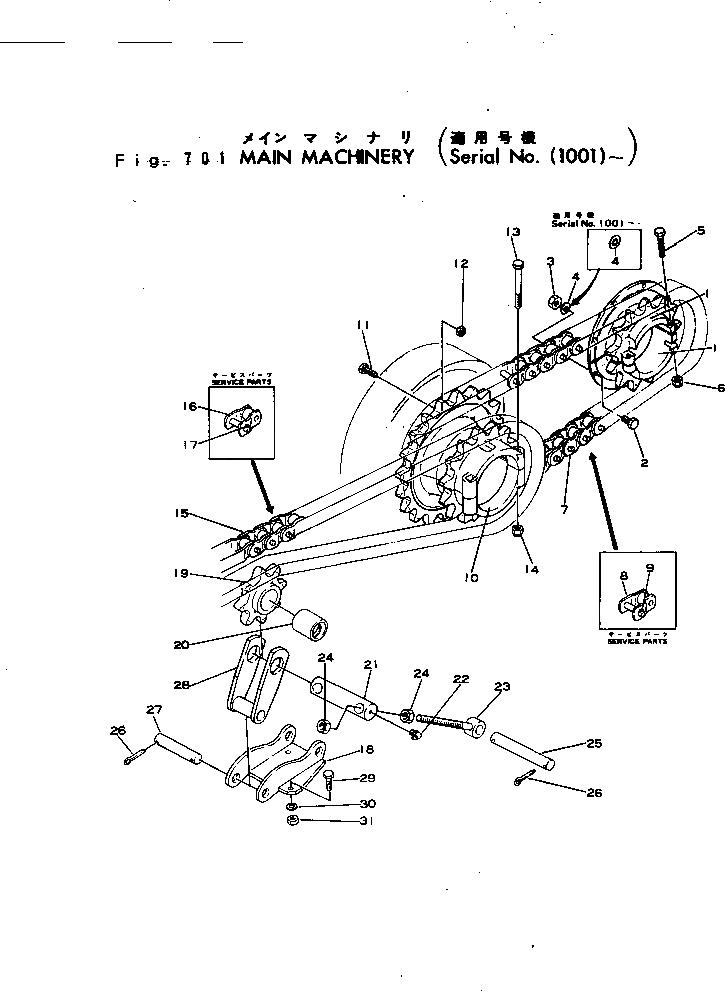

Запчасти Komatsu 22-BCM-1 ОСНОВН. MACHINERY РАБОЧЕЕ ОБОРУДОВАНИЕ

1

21-230792-02

SPROCKET,SPLIT TYPE¤ REAR

|1

21-230792-01

SPROCKET,SPLIT TYPE¤ REAR

2

02030-21095

BOLT

3

02216-11010

NUT

|3

02216-01010

NUT

4

01601-01640

WASHER

|4

22-400288-01

WASHER

5

02030-20876

BOLT

|5

02030-21095

BOLT

|5

02010-21095

BOLT

|$$11

(02030-21095{00027-87830)}

6

00027-87800

NUT

|6

00027-87830

NUT

|6

00027-86470

BOLT

7

22-590036-01

CHAIN,36 LINKS

8

22-590382-01

CHAIN,1 LINK (SERVICE PART)

9

22-590383-01

T-PIN,FOR CHAIN (SERVICE PART)

10

21-714982-01

SPROCKET,SPLIT TYPE¤ FRONT

11

21-521268-01

BOLT,REAMER

12

00027-87830

NUT

13

22-590197-01

BOLT

14

00027-86520

NUT

15

22-590037-01

O-RING,46 LINKS

16

22-590381-01

CHAIN,1 LINK (SERVICE PART)

17

22-590383-01

T-PIN,FOR CHAIN (SERVICE PART)

|18

22-580297-00

BRACKET ASS'Y

|18

22-580296-00

BRACKET ASS'Y

18

21-715040-21

BRACKET

|19

22-580298-00

SPROCKET ASS'Y

19

SPROCKET

20

21-500332-01

BUSHING

21

21-520844-01

SHAFT

22

00570-44510

FITTING

|22

00570-43760

FITTING

23

21-520848-21

BOLT

24

21-511547-01

NUT

25

21-520845-01

PIN

26

04050-08060

PIN

27

21-520847-01

PIN

28

21-520846-21

YOKE

29

02010-01057

BOLT

30

01601-01640

WASHER

31

02205-01015

NUT
