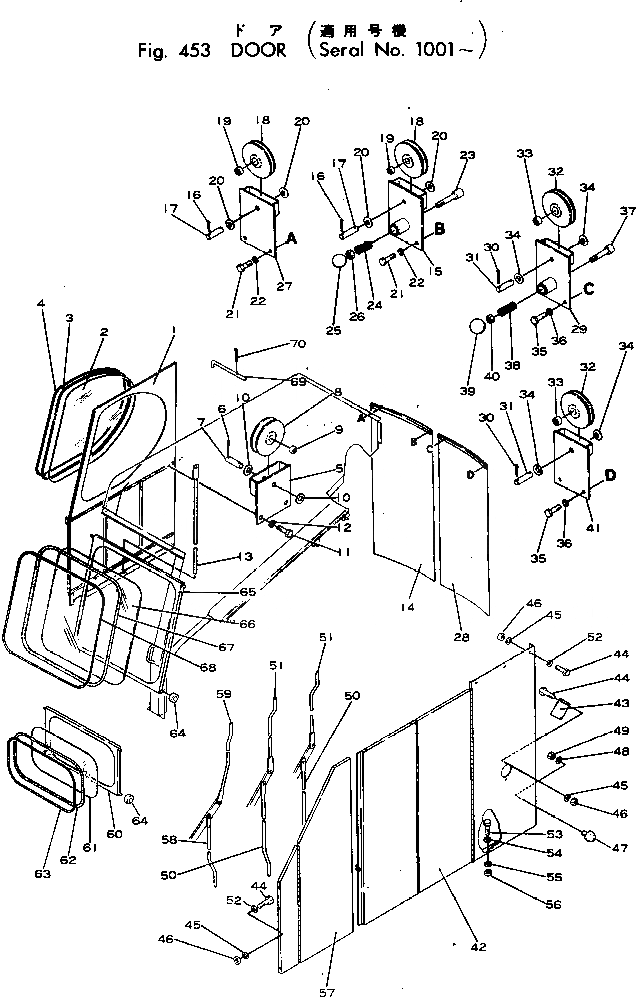

Запчасти Komatsu 22-BCM-1 ДВЕРЬ ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580454-00

DOOR ASS'Y,R.H.

1

DOOR,R.H.

2

21-411760-01

GLASS,DOOR

3

22-400182-01

H-RUBBER

4

22-400183-01

WEDGE,H-RUBBER

5

21-601537-21

HOUSING,SHEAVE

6

04050-02025

PIN

7

22-400194-01

PIN

|8

22-580463-00

SHEAVE ASS'Y,DOOR

8

SHEAVE,DOOR

9

22-400170-01

BEARING,NEEDLE

10

00039-51400

WASHER

11

02030-00619

BOLT

12

01602-00929

WASHER

13

22-400171-01

ROD,DOOR LOCK

|14

22-580455-00

DOOR ASS'Y,REAR¤ R.H.

14

DOOR,REAR¤ R.H.

15

21-601492-21

HOUSING,SHEAVE

16

04050-02025

PIN

17

22-400194-01

PIN

|18

22-580463-00

SHEAVE ASS'Y,DOOR

18

SHEAVE,DOOR

19

22-400170-01

BEARING,NEEDLE

20

00039-51400

WASHER

21

02030-00619

BOLT

22

01602-00929

WASHER

23

21-505971-01

PIN

24

21-505647-01

SPRING

25

22-400089-01

KNOB,LOCK PIN

26

02216-00606

NUT

27

21-600341-21

HOUSING,SHEAVE

|28

22-580456-00

DOOR ASS'Y,REAR¤ L.H.

28

DOOR,REAR¤ L.H.

29

21-601492-21

HOUSING,SHEAVE

30

04050-02025

PIN

31

22-400194-01

PIN

|32

22-580463-00

SHEAVE ASS'Y,DOOR

32

SHEAVE,DOOR

33

22-400170-01

BEARING,NEEDLE

34

00039-51400

WASHER

35

02030-00619

BOLT

36

01602-00929

WASHER

37

21-505971-01

PIN

38

21-505647-01

SPRING

39

22-400089-01

KNOB,LOCK PIN

40

02216-00606

NUT

41

21-600341-21

HOUSING,SHEAVE

42

21-803866-49

PANEL,L.H.

|42

21-803866-41

PANEL,L.H.

|42

21-803866-49

PANEL,L.H.

|42

21-803866-41

PANEL,L.H.

|42

22-500017-29

PANEL,L.H. (WELDED)

|42

22-500017-21

PANEL,L.H. (WELDED)

|42

22-500017-29

PANEL,L.H. (WELDED)

|42

22-500017-21

PANEL,L.H. (WELDED)

|42

22-500018-21

DOOR,LEFT PANEL (WELDED)

|42

21-706597-21

DOOR,LEFT PANE (WELDED)

43

22-400042-01

PLATE,LEFT PANEL

44

02030-00622

BOLT

|44

00037-25160

SCREW

45

01602-00929

WASHER

46

02215-00608

NUT

|46

00027-87700

NUT

47

21-500921-01

BUMPER,DOOR

48

01601-00513

WASHER

49

01500-00504

NUT

50

22-400087-01

ROD,DOOR LOCK

51

22-400086-01

ROD,DOOR LOCK

52

00039-51400

WASHER

53

02010-00638

BOLT

54

01641-01016

WASHER

55

01670-01030

WASHER

56

22-400456-01

NUT

57

21-803843-21

DOOR,L.H.

58

22-400173-01

ROD,DOOR LOCK

59

22-400172-01

ROD,DOOR LOCK

|60

22-580457-00

SASH ASS'Y,FRONT¤ LOWER

60

SASH

61

21-411757-01

GLASS

62

22-400188-01

H-RUBBER

63

22-400189-01

WEDGE,H-RUBBER

64

21-500936-01

ROLLER,SASH

|65

22-580458-00

SASH ASS'Y,FRONT¤ UPPER

65

SASH

66

21-411758-01

GLASS

67

22-400184-01

H-RUBBER

68

22-400185-01

WEDGE,H-RUBBER

69

21-501422-01

BAR,LOCK

70

04050-03020

PIN
