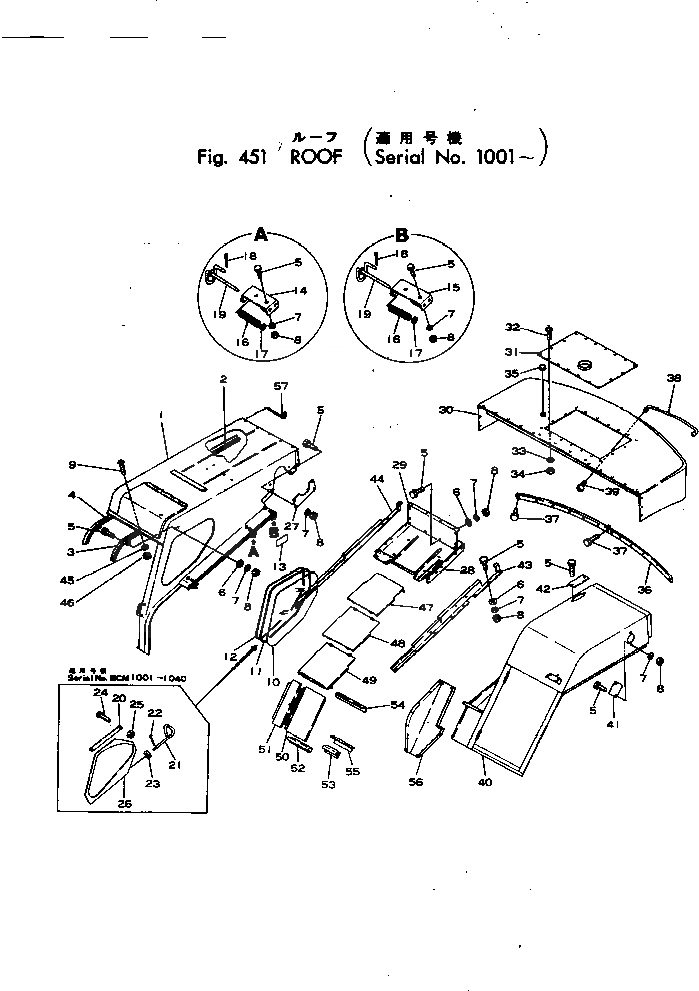

Запчасти Komatsu 22-BCM-1 КРЫША ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

1

21-852491-29

ROOF,FRONT¤ R.H.

|1

21-852491-21

ROOF,FRONT¤ R.H.

2

22-400038-21

RAIL,FRONT DOOR¤ R.H.

3

22-540006-21

RAIL,WINDOW¤ L.H.

4

22-540007-21

RAIL,WINDOW¤ R.H.

5

02030-00622

BOLT

|5

00037-25160

SCREW

6

00039-51400

WASHER

7

01602-00929

WASHER

8

02215-00608

NUT

|8

00027-87700

NUT

9

21-500921-01

BUMPER,DOOR

10

22-401052-01

GLASS,WINDOW

|10

21-411759-01

GLASS,WINDOW

11

22-401053-01

H-RUBBER

|11

22-400186-01

H-RUBBER

12

22-401054-01

WEDGE,H-RUBBER

|12

22-400187-01

WEDGE,H-RUBBER

13

22-401092-01

PLATE¤ CAUTION

14

21-601460-21

BRACKET,STOPPER

15

22-450284-21

BRACKET,STOPPER

|15

21-601460-21

BRACKET,STOPPER

16

21-500903-01

SPRING

17

00039-51400

WASHER

18

04050-03020

PIN

19

21-607617-21

BAR,STOP

20

21-608711-01

PLATE,SASH GUIDE

21

22-400039-01

BAR,SASH STOP

22

04050-03020

PIN

23

00039-51300

WASHER

24

00037-25120

SCREW

25

00027-87700

NUT

26

21-800772-21

SASH,L.H.

27

21-510702-01

COVER,RIGHT ROOF

28

21-713503-21

COVER,CENTER ROOF

29

21-610291-01

COVER,CENTER ROOF

30

22-540024-21

ROOF,REAR

31

22-401532-01

PANEL,REAR ROOF

|31

22-500030-29

PANEL,REAR ROOF

|31

22-500030-21

PANEL,REAR ROOF

32

00037-25120

SCREW

33

01602-00929

WASHER

34

02215-00608

NUT

35

22-590088-01

CAP

36

21-710192-21

RAIL,REAR DOOR

37

02030-00619

BOLT

38

21-610115-21

RAIL,HAND

39

00037-25120

SCREW

40

21-853860-41

ROOF,FRONT¤ L.H.

|40

21-706717-21

DOOR (WELDED)

41

22-400048-01

PLATE,LEFT FRONT ROOF

42

21-518253-01

PLATE,LEFT FRONT ROOF

43

21-706697-21

RAIL,CENTER COVER¤ L.H.

44

21-706696-21

RAIL,CENTER COVER¤ R.H.

45

01601-00513

WASHER

46

01500-00504

NUT

47

21-706705-21

COVER,CENTER¤ UPPER

48

21-706706-21

COVER,CENTER¤ SECOND

49

21-706707-21

COVER,CENTER¤ THIRD

50

21-607528-01

COVER,CENTER¤ LOWER¤ L.H.

51

21-607527-01

COVER,CENTER¤ LOWER¤ R.H.

52

21-607472-21

RAIL,CENTER COVER¤ L.H.

53

21-510731-01

RAIL,CENTER COVER¤ R.H.

54

21-510733-01

GUIDE,CENTER COVER¤ UPPER

55

21-510732-01

GUIDE,CENTER COVER¤ LOWER

56

21-706720-21

PANEL,FRONT¤ R.H.

57

22-400040-01

BAR,HANGER
