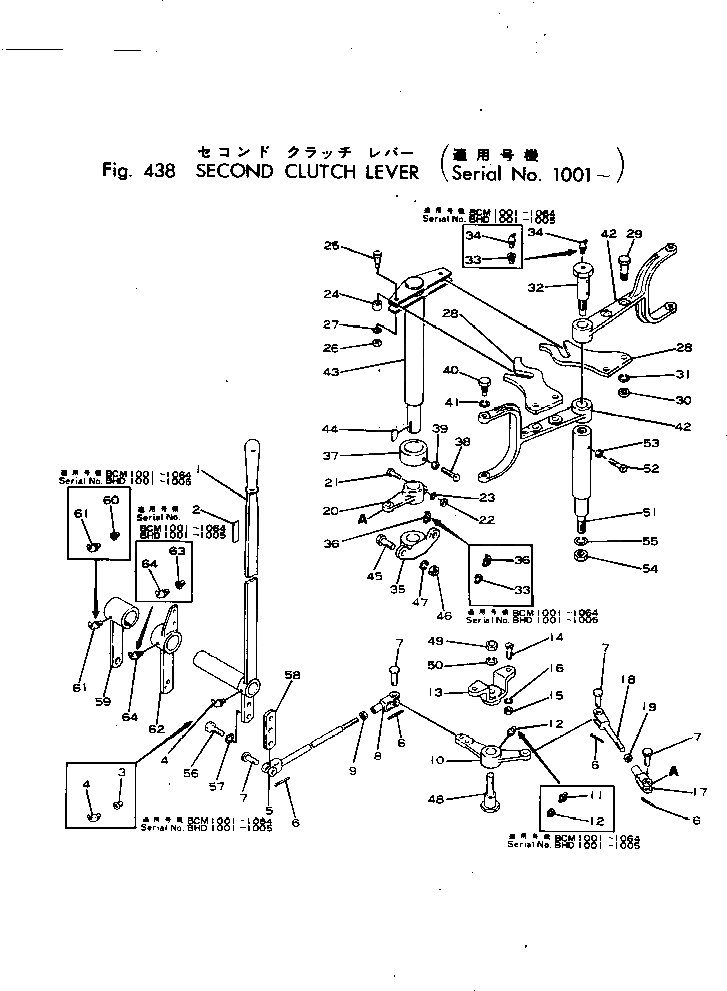

Запчасти Komatsu 22-BCM-1 ВТОР. МУФТА РЫЧАГ ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580485-00

LEVER ASS'Y,SECOND CLUTCH

1

LEVER,SECOND CLUTCH

2

22-400369-01

PLATE¤ NAME

3

00200-15250

BUSHING

4

00570-44260

FITTING

5

21-520698-21

ROD

6

04050-03022

PIN

7

22-590049-01

PIN

8

22-590004-01

YOKE

9

02215-10811

NUT

10

21-411358-01

BELLCRANK

11

00200-15250

BUSHING

12

00570-43760

FITTING

13

21-500702-01

BRACKET

14

22-590015-01

SCREW

15

02205-10812

NUT

16

01602-01338

WASHER

17

22-590005-01

YOKE

18

22-400270-01

YOKE

19

02216-10808

NUT

20

21-520693-01

LEVER

21

02010-20657

BOLT

22

02205-10609

NUT

23

01602-00929

WASHER

24

21-500304-01

ROLLER

25

21-500313-01

PIN

26

02215-10608

NUT

27

01602-00929

WASHER

28

21-617095-01

CAM

29

21-521268-01

BOLT

30

02215-11014

NUT

31

01602-01648

WASHER

32

21-500791-01

PIN

33

00200-15250

BUSHING

34

00570-44510

FITTING

35

21-520692-01

BEARING

36

00570-44260

FITTING

37

21-500790-01

COLLAR

38

00037-62620

SCREW

|38

22-590070-01

SCREW

39

02206-10808

NUT

40

21-500126-01

BOLT

41

01602-01648

WASHER

42

21-617096-01

YOKE,CLUTCH DRIVE

43

21-617094-01

SHAFT

44

22-590047-01

KEY

45

02010-21064

BOLT

46

02205-11015

NUT

47

01602-01648

WASHER

48

21-500721-01

PIN

49

02205-11219

NUT

50

01602-01957

WASHER

51

21-520694-01

PIN

52

00037-62490

SCREW

53

02206-10808

NUT

54

02205-11422

NUT

55

01602-02268

WASHER

56

02010-21025

BOLT

57

01602-01648

WASHER

58

21-520695-01

PLATE,SECOND CLUTCH LEVER

59

21-520689-21

LEVER

60

00200-15250

BUSHING

61

00570-44260

FITTING

62

21-286364-21

LEVER,FOR SHOVEL DIPPER TRIP LEVER

63

00200-15250

BUSHING,FOR SHOVEL DIPPER TRIP LEVER

64

00570-44010

FITTING,FOR SHOVEL DIPPER TRIP LEVER
