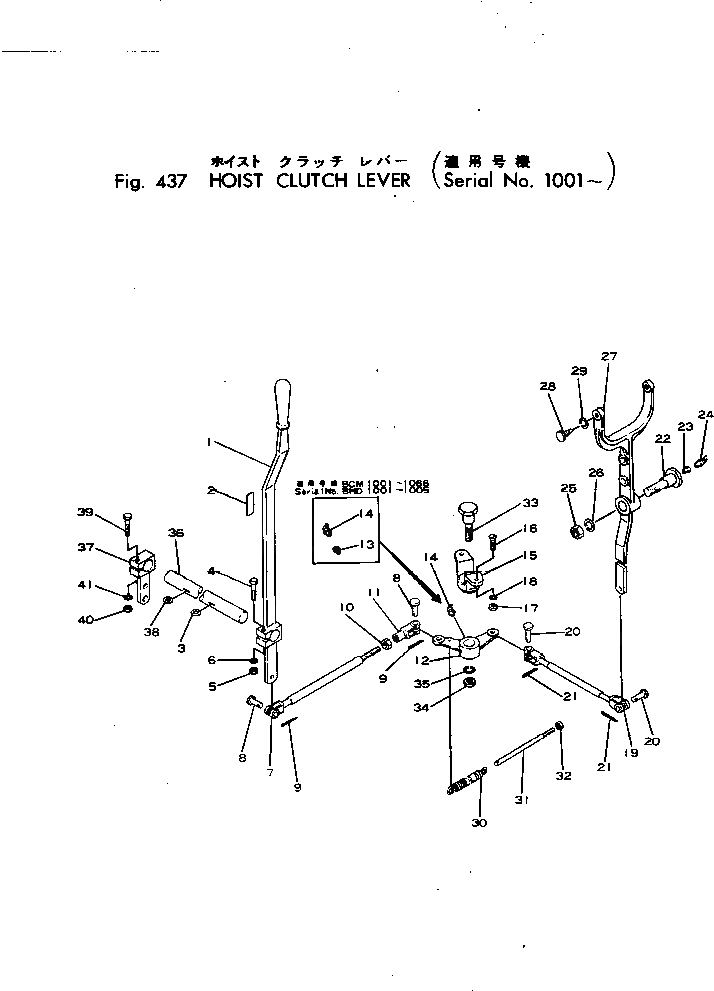

Запчасти Komatsu 22-BCM-1 ПОДЪЕМ МУФТА РЫЧАГ ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580484-00

LEVER ASS'Y,HOIST CLUTCH

1

LEVER,HOIST CLUTCH

2

22-400367-01

PLATE¤ NAME

3

21-500673-01

KEY

4

02030-00870

BOLT

5

02215-00811

NUT

6

01602-01338

WASHER

7

21-520674-21

ROD

8

22-590049-01

PIN

9

04050-03022

PIN

10

02215-10811

NUT

11

22-590004-01

YOKE

12

21-520677-01

BELLCRANK

13

00200-15250

BUSHING

14

00570-44260

FITTING

15

21-500702-01

BRACKET

16

22-590015-01

SCREW

17

02205-10812

NUT

18

01602-01338

WASHER

19

21-520675-21

ROD

20

22-590049-01

PIN

21

04050-03022

PIN

22

21-500843-01

PIN

23

00200-15250

BUSHING

24

00570-44260

FITTING

25

02205-11625

NUT

26

01602-02578

WASHER

27

21-520676-01

YOKE,CENTER REAR CLUTCH

28

21-500126-01

BOLT

29

01602-01648

WASHER

30

21-500956-01

SPRING,(FOR CLAMSHELL)

31

21-501071-01

PIN,(FOR CLAMSHELL)

32

02205-10609

NUT,(FOR CLAMSHELL)

33

21-500721-01

PIN

34

02205-11219

NUT

35

01602-01957

WASHER

36

21-520687-01

SHAFT,HOIST CLUTCH LEVER

37

21-520688-01

LEVER

38

21-500673-01

KEY

39

02030-20870

BOLT

40

02215-10811

NUT

41

01602-01338

WASHER
