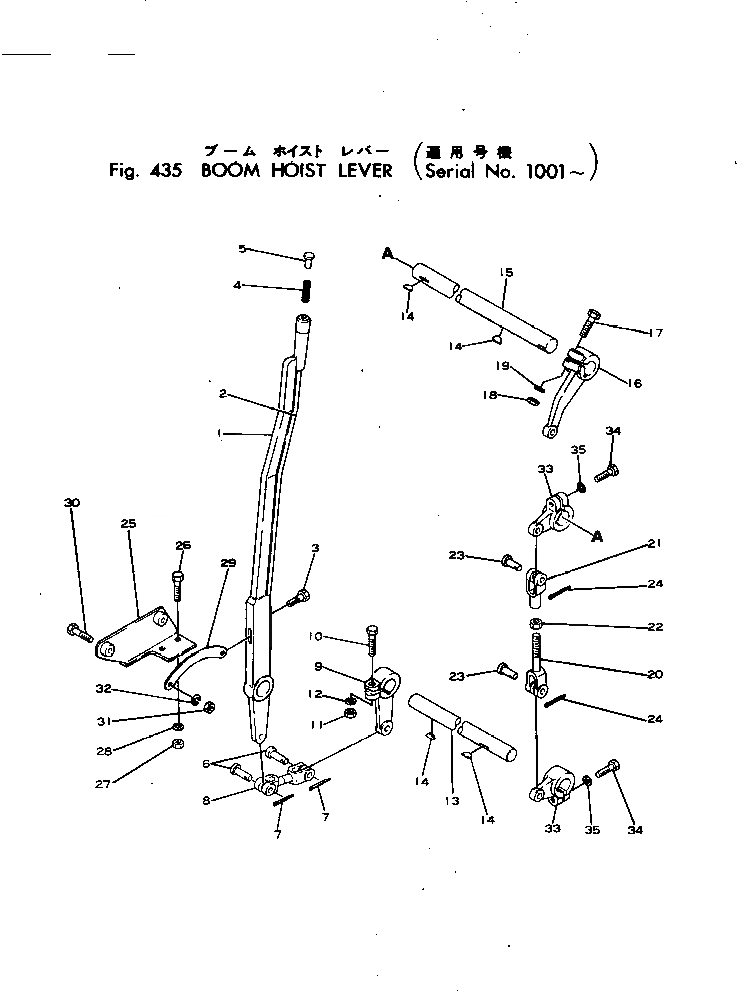

Запчасти Komatsu 22-BCM-1 СТРЕЛА ПОДЪЕМ РЫЧАГ ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580483-00

LEVER ASS'Y,BOOM HOIST

|1

22-580482-00

LEVER ASS'Y,BOOM HOIST

1

22-500231-21

LEVER

|1

22-500027-21

LEVER

2

22-500232-21

STOPPER

|2

22-500028-21

STOPPER

3

22-400278-01

BOLT

4

22-400279-01

SPRING

5

22-400280-01

KNOB

6

22-590049-01

PIN

7

04050-03022

PIN

8

21-404624-21

ROD

9

21-600294-01

LEVER,SHAFT¤ R.H.

10

02010-00857

BOLT

11

02205-00812

NUT

12

01602-01338

WASHER

13

21-275663-01

SHAFT,LOWER

14

22-590047-01

KEY

15

21-600734-09

SHAFT,UPPER

|15

21-600734-01

SHAFT,UPPER

16

21-278897-01

LEVER,BOOM HOIST CLUTCH

17

02010-00857

BOLT

18

02205-00812

NUT

19

01602-01338

WASHER

20

21-404630-01

YOKE,VERTICAL ROD

21

22-590004-01

YOKE,VERTICAL

22

02215-00811

NUT

23

22-590049-01

PIN

24

04050-03022

PIN

25

21-600248-21

BRACKET,STOPPER

26

02010-00832

BOLT

|26

22-590020-01

BOLT

27

02205-00812

NUT

28

01602-01338

WASHER

29

21-500676-01

QUADRANT,STOPPER

30

02010-00638

BOLT

|30

22-590073-01

BOLT

31

02205-00609

NUT

32

01602-00929

WASHER

33

21-275595-01

LEVER

34

02010-00838

BOLT

35

01602-01338

WASHER
