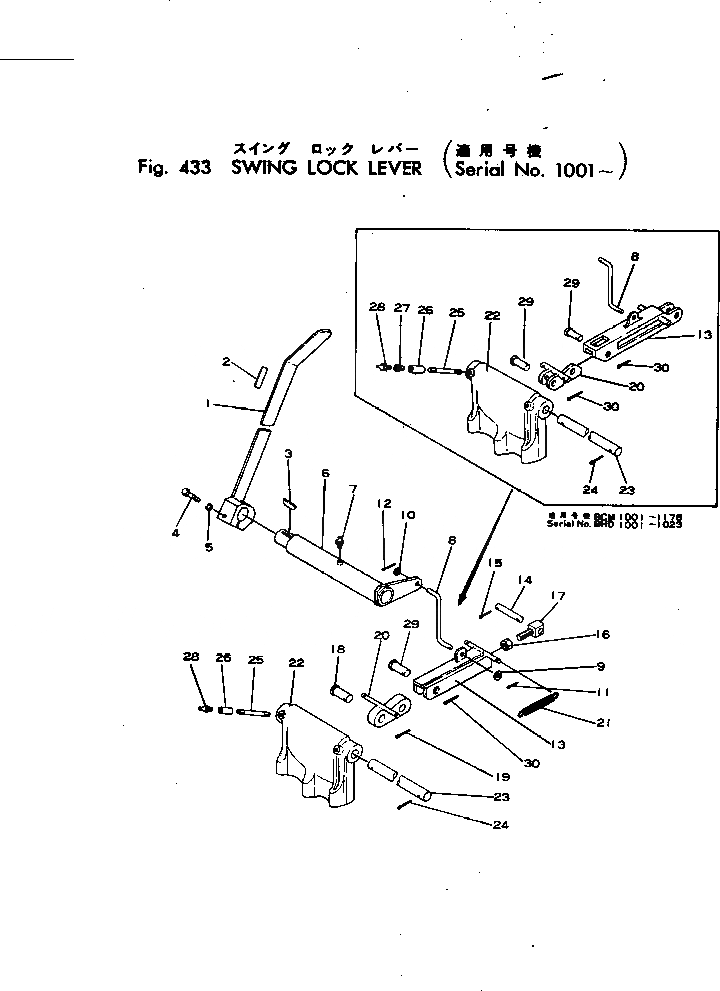

Запчасти Komatsu 22-BCM-1 ПОВОРОТН. РЫЧАГ БЛОКИРОВКИ ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580481-00

LEVER ASS'Y,SWING LOCK

1

LEVER,SWING LOCK

2

22-400371-01

PLATE¤ NAME

3

21-520683-01

KEY

4

02010-20851

BOLT

5

01602-01338

WASHER

6

21-520700-21

SLEEVE

7

00570-44260

FITTING

|8

22-580493-00

SWING LOCK ASS'Y

|8

22-580492-00

SWING LOCK ASS'Y

8

21-521056-01

ROD

|8

21-520699-01

ROD

9

21-291188-01

WASHER

10

00039-51600

WASHER

11

04050-03050

PIN

12

04050-03025

PIN

13

21-714540-21

LINK,DOG

|13

21-706392-01

LINK,DOG

14

22-400068-01

PIN

|14

22-400068-01

PIN

15

04050-05030

PIN

|15

04050-05030

PIN

16

02206-01614

NUT

|16

02206-01614

NUT

17

21-521055-01

BOLT,EYE

18

21-521057-01

PIN

19

04050-00060

PIN

20

21-615875-21

LINK,DOG

|20

21-607155-01

LINK,DOG

21

21-500956-01

SPRING,RETURN

22

21-718113-01

DOG,LOCKING

|22

21-706393-01

DOG,LOCKING

23

21-521087-01

PIN

|23

21-520701-01

PIN

24

04050-00060

PIN

25

00205-03600

NIPPLE

|25

00205-17050

NIPPLE

26

00201-10400

COUPLING

|26

00201-10800

COUPLING

27

00200-15250

BUSHING

28

00570-44010

FITTING

29

22-400067-01

PIN

|29

22-400067-01

PIN

30

04050-05030

PIN

|30

04050-05030

PIN
