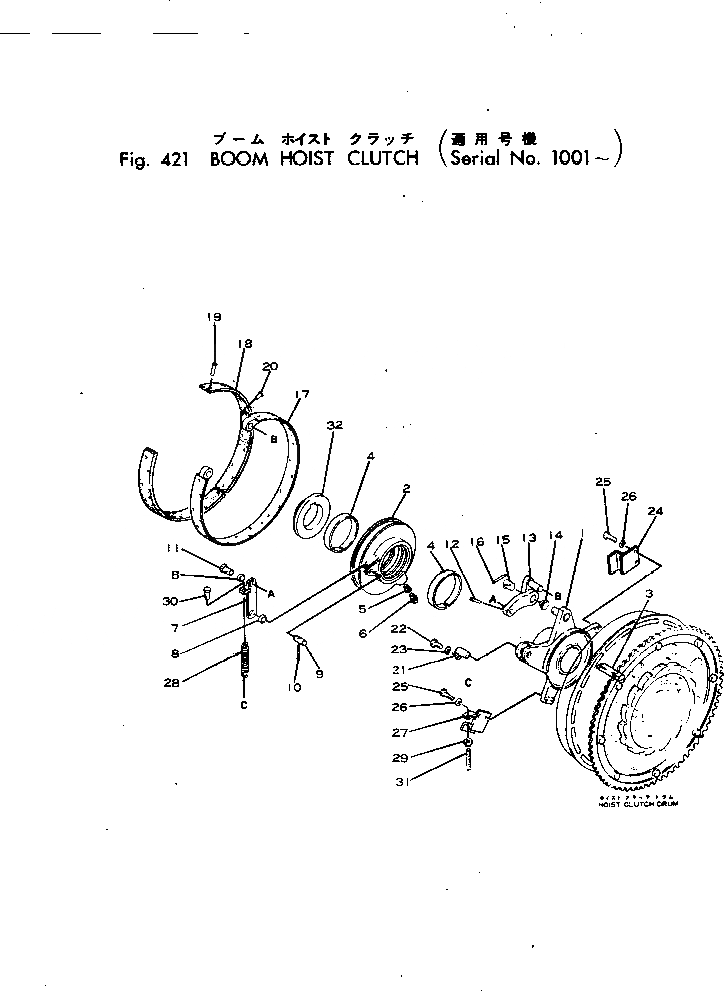

Запчасти Komatsu 22-BCM-1 СТРЕЛА ПОДЪЕМ МУФТА ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580345-00

BOOM HOIST CLUTCH A.

1

22-450867-21

DRIVER,BOOM HOIST CLUTCH

|1

21-231817-21

DRIVER,BOOM HOIST CLUTCH

2

21-603215-01

HOUSING,BOOSTER BAND

3

21-407273-01

KEY

4

21-505588-01

BUSHING

5

00200-15250

BUSHING

6

00570-44010

FITTING

|7

22-580369-00

LINK ASS'Y,BOOSTER

7

LINK,BOOSTER

8

21-520635-01

BUSHING

9

21-286616-01

PIN,BOOSTER LINK

10

04050-05050

PIN

11

21-286614-01

PIN

12

04050-05050

PIN

13

21-714553-21

BELLCRANK

|13

21-603291-21

BELLCRANK

14

21-505705-01

BUSHING

15

21-503546-01

BUSHING

16

04050-06040

PIN

|17

22-580448-00

BAND ASS'Y,BOOM HOIST CLUTCH

17

BAND,BOOM HOIST CLUTCH

18

21-506065-01

LINING,CLUTCH BAND

19

00690-69630

RIVET

20

00690-69420

RIVET

21

21-288289-21

PIN,CLUTCH BAND ANCHOR

22

02010-00616

BOLT

23

01602-00929

WASHER

24

22-400108-21

GUIDE,CLUTCH BAND

25

02010-00625

BOLT

26

01602-00929

WASHER

27

21-603875-21

BRACKET

28

21-505465-01

SPRING,BOOSTER

29

00027-87800

NUT

30

21-506248-01

BOLT

31

21-506249-01

BOLT

32

21-288269-01

SPACER
