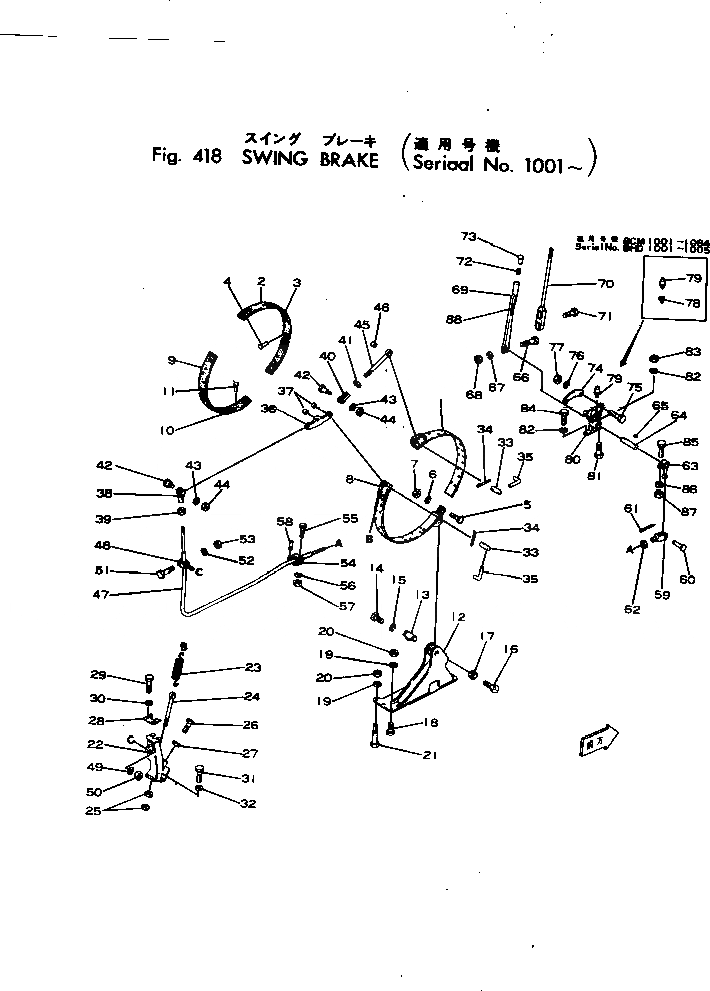

Запчасти Komatsu 22-BCM-1 ПОВОРОТН. ТОРМОЗ. ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА
№
Артикул
Название
Примечание
Количество
|1
22-580361-00
BAND ASS'Y,UPPER SWING BRAKE
1
BAND,UPPER SWING BRAKE
2
21-506324-01
LINING,SWING BRAKE BAND
3
21-506325-01
LINING,SWING BRAKE BAND
4
00690-69500
RIVET
5
02030-01051
BOLT
6
01602-01648
WASHER
7
02215-01014
NUT
|8
22-580362-00
BAND ASS'Y,LOWER SWING BRAKE
8
BAND,LOWER SWING BRAKE
9
21-506324-01
LINING,SWING BRAKE BAND
10
21-506325-01
LINING,SWING BRAKE BAND
11
00690-69500
RIVET
12
21-232796-21
BEARING
13
21-614096-21
PIN,SWING BRAKE BAND ANCHOR
14
02010-00619
BOLT
15
01602-00929
WASHER
16
22-590231-01
SCREW
17
02206-01009
NUT
18
02010-01044
BOLT
19
01602-01648
WASHER
20
02205-01015
NUT
21
02011-01046
BOLT
22
21-232901-21
BRACKET,SWING BRAKE BAND
23
21-500182-01
SPRING,RELEASE
24
21-404481-01
BOLT
25
02205-00609
NUT
26
02010-01044
BOLT
27
02206-01009
NUT
28
22-400054-01
PLATE,SWING BRAKE BAND GUIDE
29
02010-00622
BOLT
30
01602-00929
WASHER
31
02010-01038
BOLT
32
01602-01648
WASHER
33
21-404468-01
PIN,SWING BRAKE BAND END
34
04050-05030
PIN
35
21-404687-01
PIN
|36
22-580363-00
LEVER ASS'Y,SWING BRAKE BAND TOGGLE
36
LEVER
37
21-500117-01
BUSHING
38
21-511598-01
YOKE END
39
02216-00606
NUT
40
21-511543-01
YOKE END
41
02216-00808
NUT
42
21-500519-01
PIN,TOGGLE LEVER
43
01601-01640
WASHER
44
02216-01010
NUT
|45
22-580364-00
BOLT ASS'Y,SWING BRAKE BAND EYE
45
BOLT
46
21-500117-01
BUSHING
47
22-450120-01
CONTROL,SWING BRAKE
48
21-404567-01
BOLT
49
01601-01948
WASHER
50
02215-01216
NUT
51
02030-00651
BOLT
52
01602-00929
WASHER
53
02215-00608
NUT
54
21-510834-09
TRUNNION,CONTROL MOUNTING
|54
21-510834-01
TRUNNION,CONTROL MOUNTING
55
02030-00651
BOLT
56
01602-00929
WASHER
57
02215-00608
NUT
58
02030-00638
BOLT
|58
21-510833-01
BOLT
59
22-590030-01
YOKE
60
22-590048-01
PIN
61
04050-02015
PIN
62
02216-00606
NUT
63
21-607702-01
LEVER,OPERATING
64
21-607701-01
SHAFT
65
22-590127-01
KEY
|66
22-580365-00
LEVER ASS'Y,SWING BRAKE BAND HAND
66
02030-00664
BOLT
67
01602-00929
WASHER
68
02215-00608
NUT
69
LEVER
70
22-450109-21
STOPPER
71
22-400278-01
BOLT
72
22-400279-01
SPRING
73
22-400280-01
KNOB,HAND LEVER STOPPER
74
21-506600-01
SEGMENT,HAND LEVER RATCHET
75
02030-00651
BOLT
76
01602-00929
WASHER
77
02215-00608
NUT
78
00200-15250
BUSHING
79
00570-43760
FITTING
80
21-704137-02
BRACKET
81
02030-00857
BOLT
82
01602-01338
WASHER
83
02215-00811
NUT
84
02010-00844
BOLT
85
02010-00644
BOLT
86
01602-00929
WASHER
87
02205-00609
NUT
88
22-400866-01
PLATE¤ NAME,SWING BRAKE
