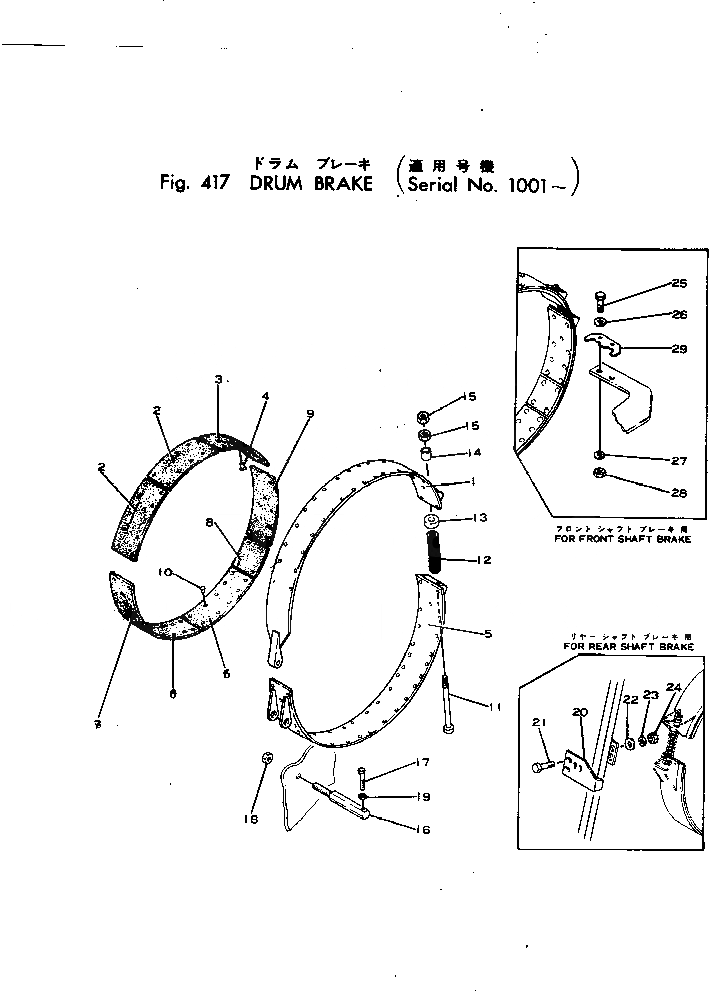

Запчасти Komatsu 22-BCM-1 БАРАБАН ТОРМОЗ. ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580358-00

BAND ASS'Y,UPPER MAIN BRAKE

|1

22-580357-00

BAND ASS'Y,UPPER MAIN BRAKE

1

BAND

|1

BAND

2

21-514502-01

LINING (KIT)

|2

21-505826-01

LINING (KIT)

3

21-514504-01

LINING (KIT)

|3

21-505825-01

LINING (KIT)

4

00690-69470

RIVET (KIT)

|4

00690-69500

RIVET (KIT)

|5

22-580360-00

BAND ASS'Y,LOWER MAIN BRAKE

|5

22-580359-00

BAND ASS'Y,LOWER MAIN BRAKE

5

BAND

|5

BAND

6

21-514502-01

LINING (KIT)

|6

21-505826-01

LINING (KIT)

7

21-514501-01

LINING (KIT)

|7

21-505823-01

LINING (KIT)

8

21-514503-01

LINING (KIT)

|8

21-505824-01

LINING (KIT)

9

21-514504-01

LINING (KIT)

|9

21-505825-01

LINING (KIT)

10

00690-69470

RIVET (KIT)

|10

00690-69500

RIVET (KIT)

11

22-402762-01

BOLT

|11

22-400197-01

BOLT

12

21-500081-01

SPRING

13

21-518752-01

SPACER

14

21-505951-09

SPACER

|14

21-505951-01

SPACER

15

02205-01625

NUT

16

21-520657-01

POST,BRAKE BAND GUIDE

17

22-400041-01

BOLT

18

02206-01211

NUT

19

02205-00812

NUT

20

21-621889-21

GUIDE,BRAKE BAND

|20

21-520665-21

GUIDE,BRAKE BAND

21

02010-00625

BOLT

|21

22-590021-01

BOLT

22

00039-51400

WASHER

23

01602-00929

WASHER

24

02205-00609

NUT

25

02010-00625

BOLT

|25

22-590021-01

BOLT

26

00039-51400

WASHER

27

01602-00929

WASHER

28

02205-00609

NUT

29

22-400053-01

GUIDE,LOWER BRAKE BAND
