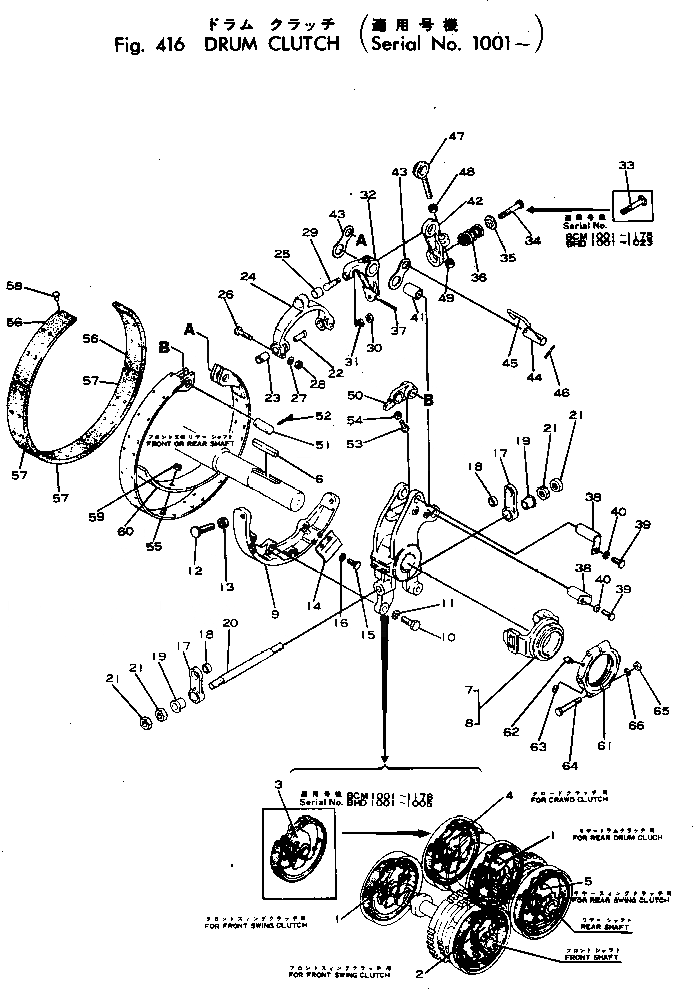

Запчасти Komatsu 22-BCM-1 БАРАБАН МУФТА ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

|1

22-580344-00

DRUM CLUTCH ASS'Y,FRONT AND REAR

|1

22-580350-00

SWING CLUTCH ASS'Y,FRONT

|1

22-580352-00

CROWD CLUTCH ASS'Y

|1

22-580351-00

CROWD CLUTCH ASS'Y

|1

22-580353-00

SWING CLUTCH ASS'Y,REAR

1

22-500015-01

DRIVER,DRUM CLUTCH

2

21-708280-01

DRIVER,FRONT SWING CLUTCH

3

22-500016-01

DRIVER,CROWD CLUTCH

4

21-232650-01

DRIVER,CROWD CLUTCH

5

21-708279-01

DRIVER,REAR SWING CLUTCH

6

22-400015-01

KEY

7

21-232781-01

SLEEVE,DRUM AND CROWD CLUTCH

8

21-232774-01

SLEEVE,FRONT AND REAR SWING CLUTCH

9

21-232506-01

GUIDE,CLUTCH BAND

10

02010-01051

BOLT

11

01602-01648

WASHER

12

21-504498-01

BOLT

13

02206-01009

NUT

14

21-504496-01

GUIDE,CLUTCH BAND

15

02010-00622

BOLT

|15

22-590085-01

BOLT

16

01602-00929

WASHER

|17

22-580354-00

LINK ASS'Y,CLUTCH TOGGLE

17

LINK

18

21-500682-01

BUSHING

19

21-520663-01

BUSHING

20

22-400051-01

ROD,CLUTCH DRIVER

21

02215-01622

NUT

22

21-510799-01

PIN,TOGGLE LINK

23

21-500665-01

BUSHING

|24

22-580355-00

YOKE ASS'Y,CLUTCH TOGGLE

24

YOKE

25

21-520661-01

BUSHING

26

02030-20657

BOLT

|26

21-520285-01

BOLT

27

01602-00929

WASHER

28

02215-00608

NUT

29

21-287358-01

STUD

30

02215-00811

NUT

31

01602-01338

WASHER

32

21-269885-01

LEVER,CLUTCH TOGGLE

33

21-403779-01

BOLT,DRUM AND CROWD CLUTCH

|33

21-403779-01

BOLT,FRONT AND REAR SWING CLUTCH

34

22-402360-01

BOLT,FRONT AND REAR SWING CLUTCH

35

21-403778-01

WASHER

36

21-505458-01

SPRING

37

22-400199-01

PIN

38

21-404056-21

PIN

39

02010-00819

BOLT

|39

22-590084-01

BOLT

40

01602-01338

WASHER

41

21-293351-01

BUSHING

42

21-268535-01

BELLCRANK,CLUTCH

43

21-403468-01

LINK,CLUTCH LIVE END

44

21-404617-01

PIN

45

21-293124-01

RETAINER

46

04050-03020

PIN

47

21-520662-01

BOLT

48

21-500659-01

NUT

49

21-500660-01

NUT

50

21-403760-01

LINK

|50

21-403760-01

LINK

51

21-408348-01

PIN,CLUTCH BAND ANCHOR

|51

21-408348-01

PIN,CLUTCH BAND ANCHOR

52

04050-06040

PIN

|52

04050-06040

PIN

53

02010-20638

BOLT

|53

02010-20638

BOLT

|53

22-590083-01

BOLT

54

02206-00606

NUT

|54

02206-00606

NUT

|55

22-580356-00

BAND ASS'Y,CLUTCH

55

BAND,CLUTCH

56

21-506890-01

LINING,CLUTCH BAND

57

21-506891-01

LINING,CLUTCH BAND

58

00690-69540

RIVET

59

22-401411-01

NUT,FRONT AND REAR SWING CLUTCH

|59

00027-86430

NUT,FRONT AND REAR SWING CLUTCH

60

21-602373-01

SPRING,FRONT AND REAR SWING CLUTCH

61

21-617082-01

COLLAR,SLIDING

62

00570-43760

FITTING

63

22-590110-01

PLUG

64

02011-20808

BOLT

|64

22-590109-01

BOLT

65

02205-00812

NUT

66

01602-01338

WASHER
