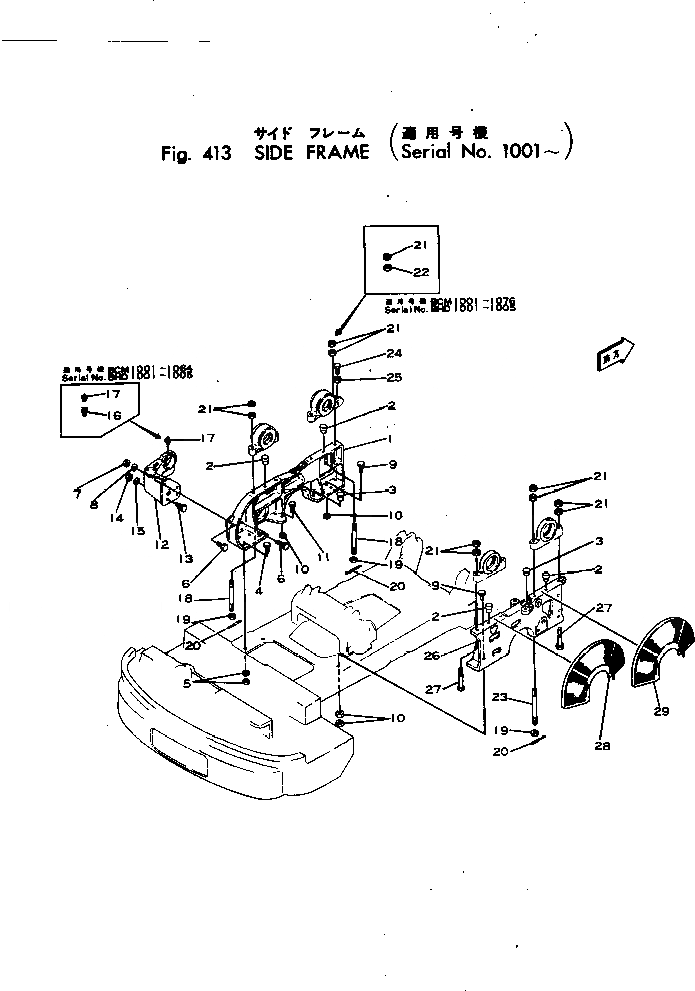

Запчасти Komatsu 22-BCM-1 РАМА ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

1

21-803945-01

FRAME,SIDE¤ L.H.

2

21-520655-01

PLUG

3

21-500223-01

PLUG

4

21-521897-01

BOLT,REAMER

5

02215-11417

NUT

6

21-521884-01

BOLT,REAMER

7

02215-11417

NUT

8

01602-02268

WASHER

9

02010-21483

BOLT

10

02205-11422

NUT

11

02010-21495

BOLT

12

21-808738-01

BRACKET,TRANSMISSION SHAFT

|12

21-217987-01

BRACKET,TRANSMISSION SHAFT

|12

21-217987-01

BRACKET,TRANSMISSION SHAFT

13

02010-21470

BOLT

14

02205-11422

NUT

15

01602-02268

WASHER

16

00200-15250

BUSHING,GREASE FITTING

17

00570-43760

FITTING

18

22-400047-01

BOLT

19

22-400049-01

NUT

20

04050-06060

PIN

21

02215-11825

NUT

|21

22-590211-01

NUT

22

02215-01825

NUT

|22

22-590210-01

NUT

23

21-520660-01

BOLT

24

00037-62860

SCREW

|24

22-590068-01

SCREW

25

02206-10808

NUT

26

21-803944-02

FRAME,SIDE¤ R.H.

27

21-511101-01

BOLT

28

22-500012-21

GUARD,REAR DRUM CLUTCH

29

22-500011-21

GUARD,FRONT DRUM CLUTCH
