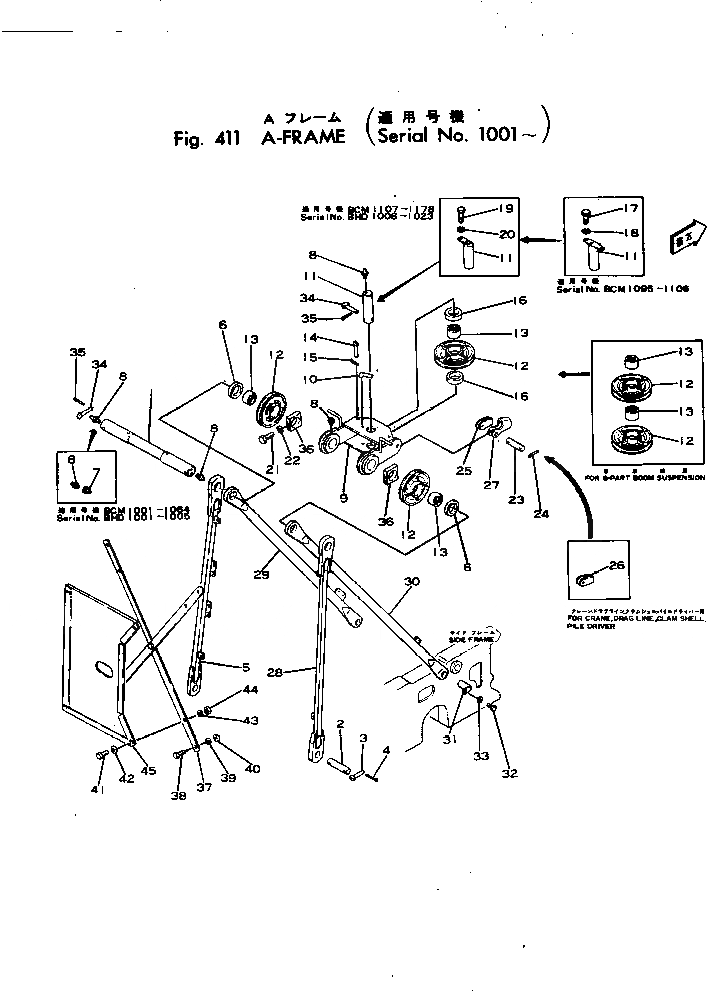

Запчасти Komatsu 22-BCM-1 A-РАМА ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

1

22-450003-01

SHAFT,A-FRAME

2

21-510697-01

PIN,REAR LEG FOOT

3

21-520625-01

T-BOLT

4

04050-03030

PIN

5

22-500001-22

LEG,REAR¤ L.H.

|5

22-500001-21

LEG,REAR¤ L.H.

6

21-529572-01

SPACER

7

00200-15250

BUSHING,GREASE FITTING

8

00570-43760

FITTING

9

21-275535-28

YOKE,A-FRAME

|9

21-275535-29

YOKE,A-FRAME

|9

21-275535-21

YOKE,A-FRAME

|9

21-275535-28

YOKE,A-FRAME

10

21-520891-01

PIN

|10

21-520891-01

PIN

11

21-520892-01

PIN,SUSPENSION SHEAVE

|11

22-450307-29

PIN,SUSPENSION SHEAVE

|11

22-450307-21

PIN,SUSPENSION SHEAVE

|11

21-520892-01

PIN,SUSPENSION SHEAVE

|12

22-580333-00

SHEAVE ASS'Y,(FOR SHOVEL AND HOE)

|12

22-580334-00

SHEAVE ASS'Y,(FOR CRAIN¤D/L¤C/S AND P/D)

12

SHEAVE,(FOR SHOVEL AND HOE)

|12

SHEAVE,(FOR CRAIN¤D/L¤C/S AND P/D)

13

21-500298-01

BUSHING

14

21-520890-01

T-BOLT

15

04050-05030

PIN

16

22-400011-01

SPACER,(FOR SHOVEL AND HOE)

17

02010-20619

BOLT

18

01602-00929

WASHER

19

02010-21025

BOLT

20

01602-01648

WASHER

21

02030-20844

BOLT

22

01602-01338

WASHER

23

21-526175-01

PIN

24

04050-08050

PIN

25

21-526460-01

WEDGE,(FOR SHOVEL AND HOE)

26

22-400400-01

WEDGE,(FOR CRAIN¤D/L¤C/S AND P/D)

27

21-526799-01

SOCKET

28

22-500002-21

LEG,REAR¤ R.H.

29

22-450004-21

LEG,FRONT¤ L.H.

30

21-613338-21

LEG,FRONT¤ R.H.

31

21-608627-21

PIN,FRONT LEG FOOT

32

02030-20825

BOLT

33

01602-01338

WASHER

34

21-520624-01

T-BOLT

|34

21-520624-01

T-BOLT

|34

21-520624-01

T-BOLT

35

04050-05030

PIN

|35

04050-05030

PIN

|35

04050-05030

PIN

36

21-520108-01

SPACER

37

21-290757-29

BAR,REAR LEG BRACE

|37

21-290757-01

BAR,REAR LEG BRACE

38

02010-21038

BOLT

39

01602-01648

WASHER

40

02205-11015

NUT

41

02010-20638

BOLT

42

01640-21016

WASHER

43

01602-00929

WASHER

44

02205-10609

NUT

45

22-500433-21

COVER
