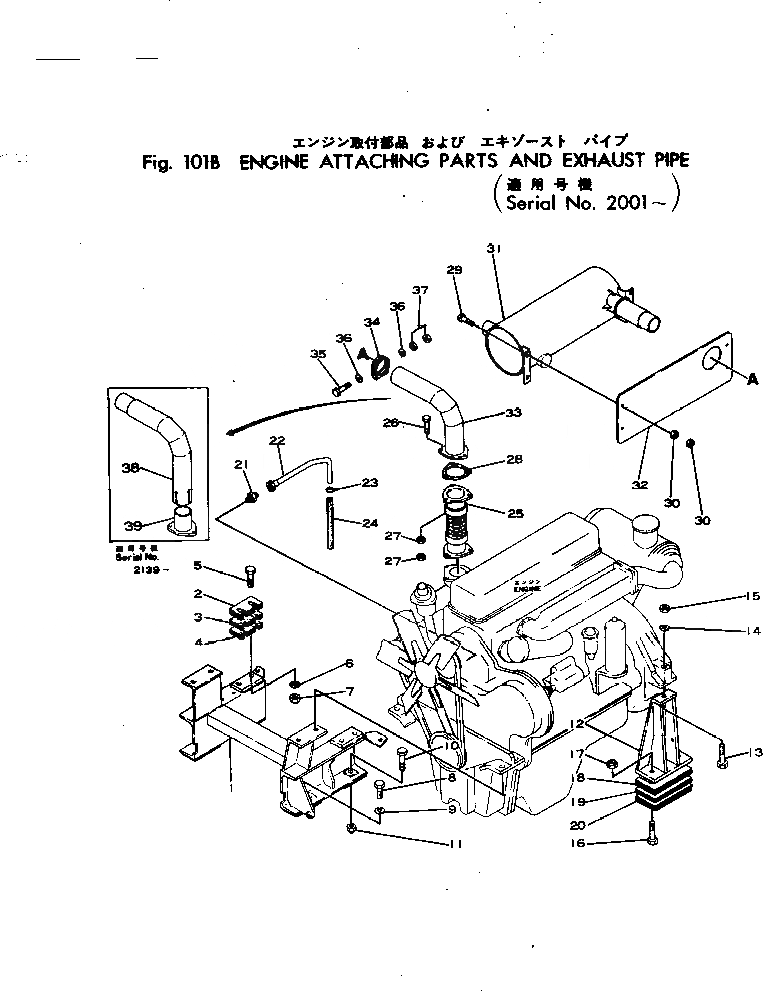

Запчасти Komatsu 22-BCM-1 ДВИГАТЕЛЬ ATTACHING ЧАСТИ И ВЫХЛОПНАЯ ТРУБА(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА

1

22-540421-21

SUPPORT,FRONT

|2

22-580307-00

SHIM ASS'Y,FRONT

2

SHIM¤ 3.2MM

3

SHIM¤ 1.0MM

4

SHIM¤ 0.2MM

5

01040-31685

BOLT

6

01602-01648

WASHER

7

01503-31613

NUT

8

02030-21257

BOLT

9

01602-01957

WASHER

10

02030-21295

BOLT

11

00027-87890

NUT

12

22-500611-21

SUPPORT,R.H.

13

01041-51820

BOLT

14

01602-01854

WASHER

15

01503-31816

NUT

16

02030-21289

BOLT

17

00027-87890

NUT

|18

22-580308-00

SHIM ASS'Y,REAR

18

SHIM¤ 3.2MM

19

SHIM¤ 1.0MM

20

SHIM¤ 0.2MM

21

22-401602-01

NIPPLE

22

22-451038-00

TUBE,DRAIN

|22

07202-01522

NUT

23

04059-01020

WIRE

24

07270-01530

TUBE

25

22-450875-01

BELLOWS

26

01000-51040

BOLT

27

01500-61008

NUT

28

6110-11-5821

GASKET

29

01040-31030

BOLT

30

01503-31008

NUT

31

22-540575-21

MUFFLER,EXHAUST

|31

22-540171-21

MUFFLER,EXHAUST

32

22-401541-01

PLATE,MUFFLER MOUNTING

33

22-500612-21

PIPE,EXHAUST

34

22-400991-01

CLIP,PIPE

|34

22-400991-01

CLIP,PIPE

35

02010-00695

BOLT

36

01641-01016

WASHER

37

02206-00606

NUT

38

22-500813-21

PIPE,EXHAUST

39

22-451363-21

PIPE,EXHAUST
