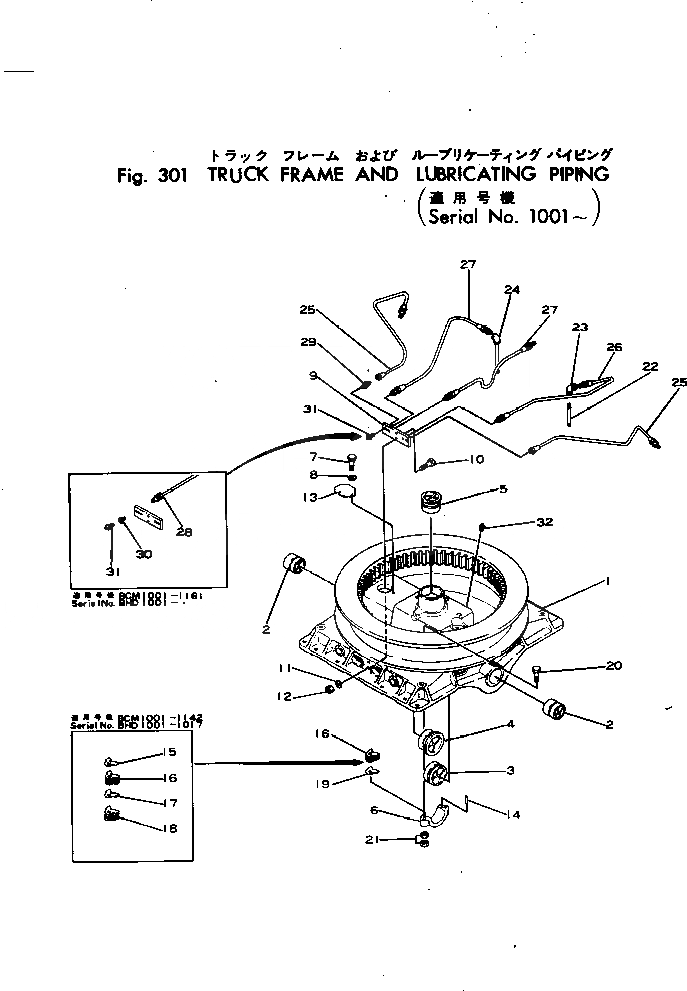

Запчасти Komatsu 22-BCM-1 ГУСЕНИЧНАЯ РАМА И СИСТЕМА СМАЗКИ ХОДОВАЯ

|1

22-580500-00

TRACK FRAME ASS'Y

1

21-880181-01

FRAME,TRACK

2

21-514605-01

BUSHING

3

21-520595-01

BUSHING,L.H.

4

21-520596-01

BUSHING,R.H.

5

21-520597-01

BUSHING

6

21-520600-01

CAP

7

02010-20619

BOLT

|7

22-590008-01

BOLT

8

01602-00929

WASHER

9

21-520598-01

BRACKET

10

02030-20857

BOLT

11

01602-01338

WASHER

12

02215-00811

NUT

13

21-407768-01

COVER

14

21-500214-01

PIN

|15

22-580414-00

SHIM ASS'Y

|15

22-580413-00

SHIM ASS'Y

15

22-400243-01

SHIM¤ 3.2MM

16

22-400244-01

SHIM¤ 0.1MM

17

22-400245-01

SHIM¤ 1.6MM

18

22-400246-01

SHIM¤ 0.5MM

19

22-402195-01

SHIM¤ 0.2MM (KIT)

20

22-590009-01

BOLT

21

02215-11417

NUT

|21

22-590106-01

NUT

22

00205-20050

NIPPLE

23

22-590010-01

ELBOW

24

22-590011-01

ELBOW

25

22-401378-00

TUBE

|25

22-400247-01

TUBE

|25

NUT

26

22-401377-00

TUBE

|26

22-400248-01

TUBE

|26

07202-30814

NUT

27

22-400249-01

TUBE

|27

22-401379-00

NUT

28

22-590022-00

FITTING ASS'Y

|28

22-590023-01

UNION

|28

22-590024-01

PLUG

|28

22-590025-01

SLEEVE

29

22-401375-01

NIPPLE

30

00200-15250

BUSHING

31

00570-45010

FITTING

|31

00570-43760

FITTING

32

00570-44510

FITTING
