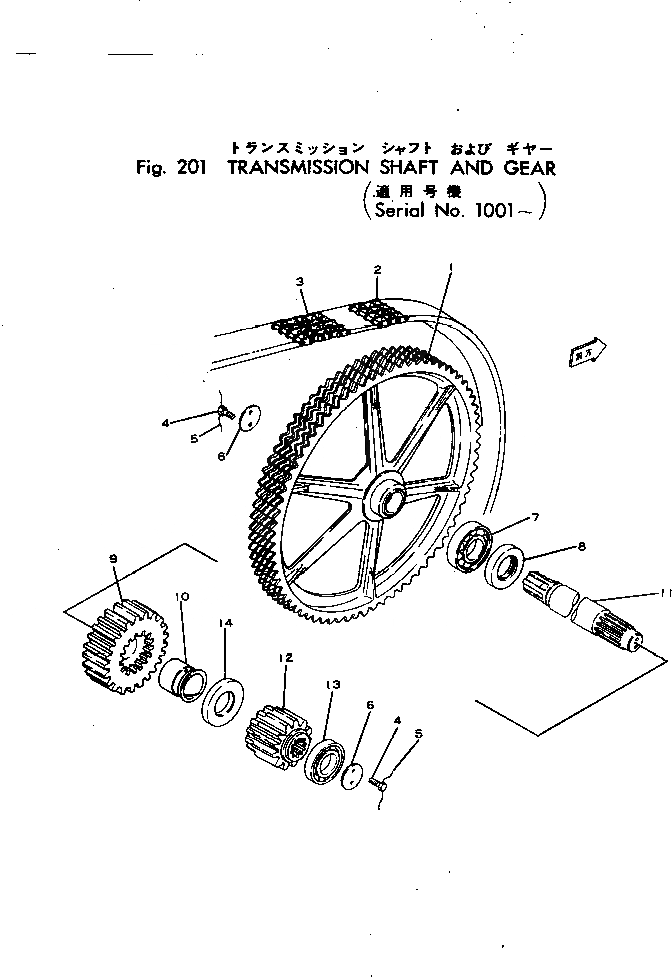

Запчасти Komatsu 22-BCM-1 ТРАНСМИССИЯ ВАЛ И ПРИВОД ТРАНСМИССИЯ¤ МЕХАНИЗМ ПОВОРОТА И PКАНАТL MACHINERY

1

22-450797-21

SPROCKET,147 TEETH

|1

21-607427-21

SPROCKET,147 TEETH

|2

22-580499-00

CHAIN ASS'Y

|2

22-580498-00

CHAIN ASS'Y

|2

22-580497-00

CHAIN ASS'Y

|2

22-580498-00

CHAIN ASS'Y

|2

22-580497-00

CHAIN ASS'Y

2

04101-14206

CHAIN,206 LINKS

|2

22-590041-01

CHAIN,206 LINKS

3

04101-14003

CHAIN,3 LINKS

|3

22-590251-01

CHAIN,3 LINKS

|3

22-590257-01

CHAIN,2 LINKS

|3

04101-14006

CHAIN,6 LINKS

|3

22-590044-01

CHAIN,6 LINKS

|3

22-590257-01

CHAIN,2 LINKS

|3

04101-14006

CHAIN,6 LINKS

|3

22-590044-01

CHAIN,6 LINKS

|3

04101-14002

CHAIN,2 LINKS (SERVICE ONLY)

|3

04101-14005

CHAIN,5 LINKS (SERVICE ONLY)

|3

04101-14005

CHAIN,5 LINKS (SERVICE ONLY)

4

21-520731-01

BOLT,RETAINER

5

04059-01616

WIRE

6

21-520639-01

RETAINER

7

22-590055-01

BEARING,BALL

8

21-520637-01

RING

|9

22-580404-00

PINION ASS'Y,HIGH SPEED

9

PINION¤ 23 TEETH

10

21-507295-01

BUSHING

11

21-617192-01

SHAFT

12

21-617193-01

PINION

13

22-590062-01

BEARING,BALL

14

21-50729401

WASHER
