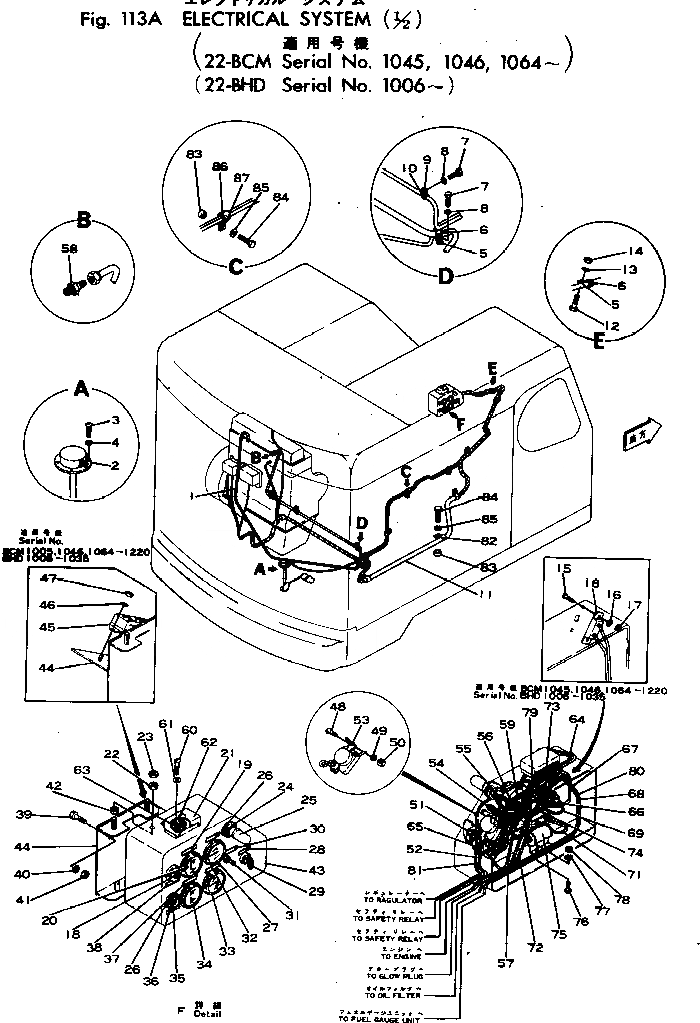

Запчасти Komatsu 22-BCM-1 ЭЛЕКТРИКА (/)(/)(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА
№
Артикул
Название
Примечание
Количество
1
22-450282-01
GAUGE,WATER TEMPERATURE
|1
22-450282-01
GAUGE,WATER TEMPERATURE
2
22-500039-01
FUEL GAUGE UNIT
3
01210-00530
SCREW
|3
01210-00530
SCREW
4
01601-00513
WASHER
|4
01601-00513
WASHER
5
22-400639-01
CLAMP
|5
22-400639-01
CLAMP
6
22-400640-01
TUBE
|6
22-400640-01
TUBE
7
02030-00613
BOLT
|7
02030-00613
BOLT
8
01602-00929
WASHER
|8
01602-00929
WASHER
9
150-06-13290
CLIP
10
22-401097-01
TUBE
|10
22-401097-01
TUBE
11
22-500680-01
CABLE,CABLE
|11
22-450059-01
CONDUIT,CABLE
12
02030-00619
BOLT
|12
02030-00619
BOLT
13
01602-00929
WASHER
|13
01602-00929
WASHER
14
02215-00608
NUT
|14
02215-00608
NUT
15
01210-10616
SCREW
|15
01210-10616
SCREW
16
01601-00615
WASHER
|16
01601-00615
WASHER
17
01500-00605
NUT
|17
01500-00605
NUT
18
6110-83-4811
SIGNAL,HEATER
|18
08206-04024
SIGNAL,HEATER
|18
08206-04024
SIGNAL,HEATER
19
09609-04006
PLATE¤ NAME,AMMETER
|19
09609-04006
PLATE¤ NAME,AMMETER
20
08600-03000
AMMETER,30A
|20
08600-03000
AMMETER,30A
21
08043-04000
BOX
|21
08043-04000
BOX
22
02216-00606
NUT
|22
02216-00606
NUT
23
02215-00608
NUT
|23
02215-00608
NUT
24
09609-04002
PLATE¤ NAME,OIL PRESSURE
|24
09609-04002
PLATE¤ NAME,OIL PRESSURE
25
08141-00000
LAMP,PANEL
|25
08141-00000
LAMP,PANEL
|25
08111-02430
BULB¤ 3W
|25
08111-02430
BULB¤ 3W
26
22-401091-01
WASHER
|26
22-401091-01
WASHER
27
08630-01000
GAUGE,OIL PRESSURE
|27
08630-01000
GAUGE,OIL PRESSURE
28
09609-04011
PLATE¤ NAME,STARTING SWITCH
|28
09609-04011
PLATE¤ NAME,STARTING SWITCH
29
110-01-12111
SWITCH,STARTING
|29
08084-00000
SWITCH,STARTING
|29
08084-00000
SWITCH,STARTING
30
22-400361-01
PLATE¤ NAME,PANEL LAMP SWITCH
31
22-400338-01
SWITCH,PANEL LAMP
32
09609-04004
PLATE¤ NAME,PANEL
|32
09609-04004
PLATE¤ NAME,PANEL
33
22-450282-01
GAUGE,WATER TEMPERATURE
|33
22-450282-01
GAUGE,WATER TEMPERATURE
34
22-450060-01
GAUGE,FUEL
35
22-401093-01
PLATE¤ NAME,CAUTION LAMP
|35
22-401093-01
PLATE¤ NAME,CAUTION LAMP
36
08146-01200
LAMP,PILOT
|36
08146-01200
LAMP,PILOT
|36
08146-02400
LAMP,PILOT
|36
08146-02400
LAMP,PILOT
|36
08111-02430
BULB¤ 3W
37
22-400884-01
PLATE¤ NAME,FUEL GAUGE
|37
22-400884-01
PLATE¤ NAME,FUEL GAUGE
38
15901-06-137
PLATE¤ NAME,HEATER SIGNAL
39
02030-00622
BOLT
|39
02030-00622
BOLT
40
01602-00929
WASHER
|40
01602-00929
WASHER
41
02215-00608
NUT
|41
02215-00608
NUT
42
22-400342-01
SEAT,RUBBER
|42
22-400342-01
SEAT,RUBBER
43
22-500667-21
PANEL,INSTRUMENT
|43
22-500170-21
PANEL,INSTRUMENT
|43
22-500170-21
PANEL,INSTRUMENT
44
22-500171-22
BRACKET
|44
22-500171-21
BRACKET
|44
22-500171-21
BRACKET
45
08203-00429
RESISTOR,HEATER SIGNAL
|45
08203-00429
RESISTOR,HEATER SIGNAL
46
01601-00820
WASHER
|46
01601-00820
WASHER
47
02215-00507
NUT
|47
02215-00507
NUT
48
01210-00412
SCREW
|48
01210-00412
SCREW
49
01601-00410
WASHER
|49
01601-00410
WASHER
50
01500-00404
NUT
|50
01500-00404
NUT
51
22-401042-01
CABLE,PLUG TO EARTH
|51
22-401042-01
CABLE,PLUG TO EARTH
52
22-401038-01
CABLE,SWITCH TO SAFETY RELAY
|52
22-401038-01
CABLE,SWITCH TO SAFETY RELAY
53
22-400527-01
CONSENT,PLUG
|53
22-400527-01
CONSENT,PLUG
54
22-401041-01
CABLE,LAMP TO EARTH
|54
22-401041-01
CABLE,LAMP TO EARTH
55
22-401043-01
CABLE,SWITCH TO PANEL LAMP
|55
22-401043-01
CABLE,SWITCH TO PANEL LAMP
56
22-401044-01
CABLE,PLUG TO FUSE BOX
|56
22-401044-01
CABLE,PLUG TO FUSE BOX
|56
22-401044-01
CABLE,PLUG TO FUSE BOX
57
22-450280-21
PIPE,GAUGE TO ENGINE
|57
22-450280-21
PIPE,GAUGE TO ENGINE
|57
22-450280-21
PIPE,GAUGE TO ENGINE
|57
07202-00508
NUT
|57
07202-00508
NUT
|57
07202-00508
NUT
58
22-401085-01
NIPPLE
|58
22-401085-01
NIPPLE
|58
22-401085-01
NIPPLE
59
22-401026-01
CABLE,SWITCH TO FUSE BOX
|59
22-401026-01
CABLE,SWITCH TO FUSE BOX
|59
22-401026-01
CABLE,SWITCH TO FUSE BOX
60
01210-00520
SCREW
|60
01210-00520
SCREW
|60
01210-00520
SCREW
61
01601-00513
WASHER
|61
01601-00513
WASHER
|61
01601-00513
WASHER
62
08040-01000
FUSE¤ 10A
|62
08040-01000
FUSE¤ 10A
|62
08040-01000
FUSE¤ 10A
63
08040-02000
FUSE¤ 20A
|63
08040-02000
FUSE¤ 20A
|63
08040-02000
FUSE¤ 20A
64
22-401028-01
CABLE,FUSE BOX TO AMMETER
|64
22-401028-01
CABLE,FUSE BOX TO AMMETER
|64
22-401028-01
CABLE,FUSE BOX TO AMMETER
65
22-401035-01
CABLE,REGULATOR TO AMMETER
|65
22-401035-01
CABLE,REGULATOR TO AMMETER
|65
22-401035-01
CABLE,REGULATOR TO AMMETER
66
22-401033-01
CABLE,HEATER SIGNAL TO RESISTOR
|66
22-401033-01
CABLE,HEATER SIGNAL TO RESISTOR
67
22-401047-01
CABLE,LAMP TO FUSE BOX
|67
22-401047-01
CABLE,LAMP TO FUSE BOX
68
22-401031-01
CABLE,HEATER SIGNAL TO GLOW PLUG
|68
22-401031-01
CABLE,HEATER SIGNAL TO GLOW PLUG
69
22-401046-01
CABLE,LAMP TO OIL FILTER
|69
22-401046-01
CABLE,LAMP TO OIL FILTER
70
22-401022-01
CABLE,RESISTOR TO FUSE BOX
|70
22-401022-01
CABLE,RESISTOR TO FUSE BOX
71
22-401018-01
CABLE,RESISTOR TO FUEL GAUGE
|71
22-401018-01
CABLE,RESISTOR TO FUEL GAUGE
72
22-401049-01
CABLE,GAUGE TO GAUGE UNIT
|72
22-401049-01
CABLE,GAUGE TO GAUGE UNIT
73
22-401023-01
CABLE,SWITCH TO FUSE BOX
|73
22-401023-01
CABLE,SWITCH TO FUSE BOX
74
22-401036-01
CABLE,SWITCH TO AMMETER
|74
22-401036-01
CABLE,SWITCH TO AMMETER
75
22-400362-01
RESISTANCE,FUEL
76
01210-00616
SCREW
|76
01210-00616
SCREW
77
01601-00615
WASHER
|77
01601-00615
WASHER
78
01500-00605
NUT
|78
01500-00605
NUT
79
22-401034-01
CABLE,SWITCH(R1) TO RESISTOR
80
22-402817-01
CABLE,SWITCH TO HEATER SIGNAL
|80
22-401032-01
CABLE,SWITCH(R2) TO RESISTOR
|80
22-401032-01
CABLE,SWITCH(R2) TO RESISTOR
81
22-401037-01
CABLE,SWITCH TO SAFETY RELAY
|81
22-401037-01
CABLE,SWITCH TO SAFETY RELAY
82
22-400351-01
CLAMP
83
22-400336-01
BOSS (WELDED)
84
02030-00613
BOLT
|84
02030-00613
BOLT
85
01602-00929
WASHER
|85
01602-00929
WASHER
86
22-401097-01
TUBE
|86
22-401097-01
TUBE
87
150-06-13290
CLIP
88
22-500680-01
CABLE
Выбрано товаров: 187
