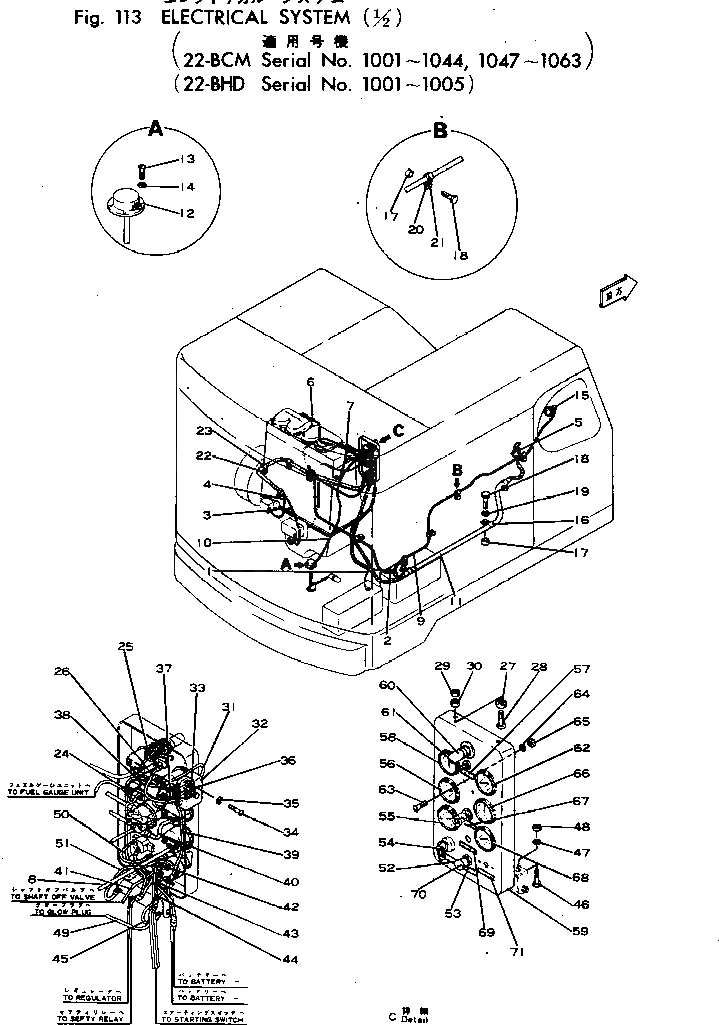

Запчасти Komatsu 22-BCM-1 ЭЛЕКТРИКА (/)(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА

1

22-400354-01

CABLE,SWITCH TO BREAKER

|1

22-400354-01

CABLE,SWITCH TO BREAKER

2

22-400346-01

CABLE,BREAKER TO BATTERY(+)

|2

22-400346-01

CABLE,BREAKER TO BATTERY(+)

3

22-400343-01

CABLE,REGULATOR(B) TO AMMETER

|3

22-400343-01

CABLE,REGULATOR(B) TO AMMETER

4

22-400352-01

CABLE,SWITCH TO SAFETY RELAY(SW)

|4

22-400352-01

CABLE,SWITCH TO SAFETY RELAY(SW)

5

22-401243-01

SWITCH,STARTING

|5

22-401243-01

SWITCH,STARTING

|5

150-06-12110

SWITCH,STARTING

|5

22-401243-01

SWITCH,STARTING

|5

150-06-12110

SWITCH,STARTING

|5

22-401243-01

SWITCH,STARTING

|5

150-06-12110

SWITCH,STARTING

|5

22-401243-01

SWITCH,STARTING

|5

150-06-12110

SWITCH,STARTING

6

22-450065-01

PIPE,GAUGE TO PT PUMP

|6

22-450065-01

PIPE,GAUGE TO PT PUMP

|6

07202-00508

NUT

|6

07202-00508

NUT

7

22-450064-01

PIPE,GAUGE TO FUEL NOZZLE

|7

22-450064-01

PIPE,GAUGE TO FUEL NOZZLE

|7

07202-00508

NUT

|7

07202-00508

NUT

8

22-450062-01

PIPE,GAUGE TO ENGINE

|8

22-450062-01

PIPE,GAUGE TO ENGINE

|8

07202-00508

NUT

|8

07202-00508

NUT

9

22-450061-01

PIPE,GAUGE TO ENGINE

|9

22-450061-01

PIPE,GAUGE TO ENGINE

|9

07202-00508

NUT

|9

07202-00508

NUT

10

22-400365-01

CABLE,GAUGE UNIT TO GAUGE

|10

22-400365-01

CABLE,GAUGE UNIT TO GAUGE

11

22-450059-01

CONDUIT,CABLE

12

22-500039-01

FUEL GAUGE UNIT

13

01210-00513

SCREW

|13

01210-00513

SCREW

14

01601-00513

WASHER

|14

01601-00513

WASHER

15

130-06-12130

GAUGE,OIL PRESSURE

|15

130-06-12130

GAUGE,OIL PRESSURE

16

22-400351-01

CLAMP

17

22-400336-01

BOSS (WELDED)

18

02030-00613

BOLT

|18

02030-00613

BOLT

19

01602-00929

WASHER

|19

01602-00929

WASHER

20

150-06-13250

TUBE

|20

150-06-13250

TUBE

21

170-06-14230

CLIP

|21

170-06-14230

CLIP

22

150-06-13290

CLIP

23

150-06-13250

TUBE

|23

150-06-13250

TUBE

24

22-400364-01

CABLE,GAUGE TO FUEL RESISTOR

|24

22-400364-01

CABLE,GAUGE TO FUEL RESISTOR

25

22-400360-01

CABLE,LAMP SWITCH TO LAMP

|25

22-400360-01

CABLE,LAMP SWITCH TO LAMP

26

22-400359-01

CABLE,LAMP SWITCH TO FUSE BOX

|26

22-400359-01

CABLE,LAMP SWITCH TO FUSE BOX

27

22-400342-01

SEAT,RUBBER

|27

22-400342-01

SEAT,RUBBER

28

02030-00638

BOLT

|28

02030-00638

BOLT

29

02215-00605

NUT

|29

02215-00605

NUT

30

02216-00606

NUT

|30

02216-00606

NUT

31

22-400344-01

CABLE,FUSE BOX TO AMMETER

|31

22-400344-01

CABLE,FUSE BOX TO AMMETER

32

08043-04000

BOX

|32

08043-04000

BOX

33

08040-02000

FUSE¤ 20A

|33

08040-02000

FUSE¤ 20A

34

01210-00520

SCREW

|34

01210-00520

SCREW

35

01601-00513

WASHER

|35

01601-00513

WASHER

36

08040-01000

FUSE¤ 10A

|36

08040-01000

FUSE¤ 10A

37

22-400363-01

CABLE,FUSE BOX TO RESISTOR

|37

22-400363-01

CABLE,FUSE BOX TO RESISTOR

38

22-400362-01

RESISTANCE,FUEL

39

22-400353-01

CABLE,SWITCH TO AMMETER

|39

22-400353-01

CABLE,SWITCH TO AMMETER

40

22-450063-01

PIPE,FUEL PRESSURE TO TEE

|40

22-450063-01

PIPE,FUEL PRESSURE TO TEE

|40

07202-00508

NUT

|40

07202-00508

NUT

41

22-400358-01

CABLE,SWITCH TO SHUT OFF VALVE

|41

22-400358-01

CABLE,SWITCH TO SHUT OFF VALVE

42

22-400355-01

CABLE,STARTING SWITCH(BR)

|42

22-400355-01

CABLE,STARTING SWITCH(BR)

43

22-400356-01

CABLE,STARTING SWITCH(C)

|43

22-400356-01

CABLE,STARTING SWITCH(C)

44

22-400357-01

CABLE,STARTING SWITCH(B)

|44

22-400357-01

CABLE,STARTING SWITCH(B)

45

22-400349-01

CABLE,HEATER SIGNAL TO RESISTOR

|45

22-400349-01

CABLE,HEATER SIGNAL TO RESISTOR

46

02030-00416

BOLT

|46

02030-00416

BOLT

47

01602-00720

WASHER

|47

01602-00720

WASHER

48

02215-00406

NUT

|48

02215-00406

NUT

49

22-400350-01

CABLE,GLOW PLUG TO RESISTOR

|49

22-400350-01

CABLE,GLOW PLUG TO RESISTOR

50

22-400347-01

CABLE,SWITCH TO BREAKER

|50

22-400347-01

CABLE,SWITCH TO BREAKER

51

22-400348-01

CABLE,SWITCH TO RESISTOR

|51

22-400348-01

CABLE,SWITCH TO RESISTOR

52

15901-06-108

PLATE¤ NAME,STARTING SWITCH

|52

15901-06-108

PLATE¤ NAME,STARTING SWITCH

53

15901-06-132

PLATE¤ NAME,PREHEATER SWITCH

|53

15901-06-132

PLATE¤ NAME,PREHEATER SWITCH

54

150-06-12110

SWITCH,STARTING

|54

150-06-12110

SWITCH,STARTING

55

130-06-12130

GAUGE,OIL PRESSURE

|55

130-06-12130

GAUGE,OIL PRESSURE

56

15901-06-106

GAUGE,FUEL PRESSURE

|56

15901-06-106

GAUGE,FUEL PRESSURE

57

22-400361-01

PLATE¤ NAME,PANEL LAMP SWITCH

58

08600-02400

AMMETER,30A

|58

08600-02400

AMMETER,30A

59

22-540023-22

PANEL,INSTRUMENT

|59

22-540023-22

PANEL,INSTRUMENT

|59

22-540023-21

PANEL,INSTRUMENT

60

15901-06-135

LAMP,DASH

|60

15901-06-135

LAMP,DASH

61

22-400338-01

SWITCH,PANEL LAMP

62

22-450066-01

GAUGE,WATER TEMPERATURE

|62

22-450066-01

GAUGE,WATER TEMPERATURE

63

01210-00616

SCREW

|63

01210-00616

SCREW

64

01601-00615

WASHER

|64

01601-00615

WASHER

65

01500-00605

NUT

|65

01500-00605

NUT

66

22-450060-01

GAUGE,FUEL

67

15901-06-126

PLATE¤ NAME,PREHEATER PRIMER

|67

15901-06-126

PLATE¤ NAME,PREHEATER PRIMER

68

22-450067-01

GAUGE,OIL TEMPERATURE

|68

22-450067-01

GAUGE,OIL TEMPERATURE

69

15901-06-137

PLATE¤ NAME,HEATER SIGNAL

70

22-400345-01

SWITCH,PREHEATER

|70

22-400345-01

SWITCH,PREHEATER

71

15901-06-131

PLATE¤ NAME,CIRCUIT BREAKER

|71

15901-06-131

PLATE¤ NAME,CIRCUIT BREAKER
