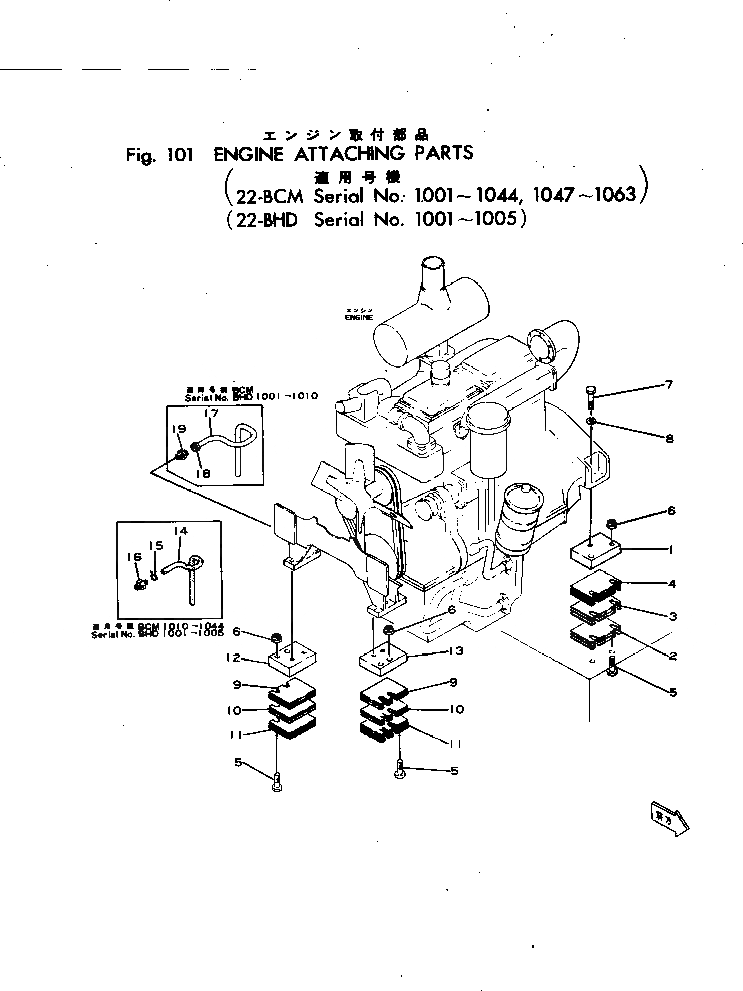

Запчасти Komatsu 22-BCM-1 ДВИГАТЕЛЬ ATTACHING ЧАСТИ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА

1

22-400118-01

SUPPORT,REAR

|1

22-400118-01

SUPPORT,REAR

|2

22-580299-00

SHIM ASS'Y,REAR

|2

22-580299-00

SHIM ASS'Y,REAR

2

SHIM¤ 3.2MM

|2

SHIM¤ 3.2MM

3

SHIM¤ 1.0MM

|3

SHIM¤ 1.0MM

4

SHIM¤ 0.2MM

|4

SHIM¤ 0.2MM

5

02031-21202

BOLT

|5

02031-21202

BOLT

6

00027-87890

NUT

|6

00027-87890

NUT

7

02030-01064

BOLT

|7

02030-01064

BOLT

8

01602-01648

WASHER

|8

01602-01648

WASHER

|9

22-580300-00

SHIM ASS'Y,FRONT

|9

22-580300-00

SHIM ASS'Y,FRONT

9

SHIM¤ 3.2MM

|9

SHIM¤ 3.2MM

10

SHIM¤ 1.0MM

|10

SHIM¤ 1.0MM

11

SHIM¤ 0.2MM

|11

SHIM¤ 0.2MM

12

22-400120-01

SUPPORT,FRONT¤ L.H.

|12

22-400120-01

SUPPORT,FRONT¤ L.H.

13

22-400119-01

SUPPORT,FRONT¤ R.H.

|13

22-400119-01

SUPPORT,FRONT¤ R.H.

14

07270-01560

TUBE,DRAIN

|14

07270-01560

TUBE,DRAIN

15

04059-01020

WIRE

|15

04059-01020

WIRE

16

22-400781-01

NIPPLE

|16

22-400781-01

NIPPLE

17

22-400367-01

PLATE¤ NAME,DRAIN

|$$38

(07270-01560{04059-01020}

|$$39

22-400781-01)

|17

07200-01834

SLEEVE

18

07201-01830

NUT

19

07213-01826

CONNECTOR
