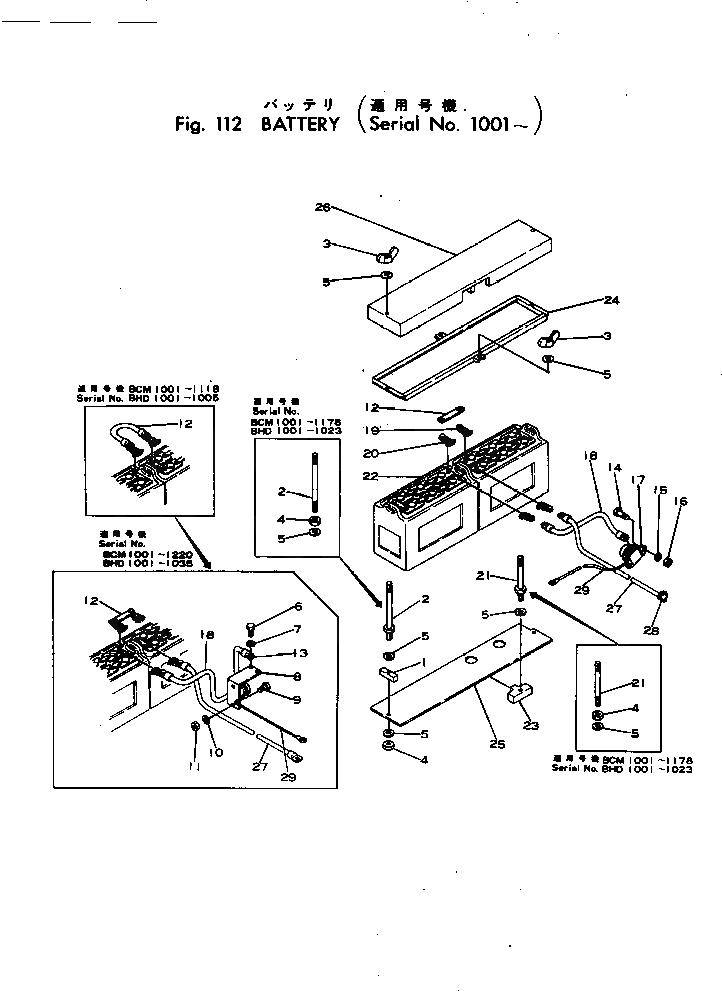

Запчасти Komatsu 22-BCM-1 АККУМУЛЯТОР КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА

1

22-400333-01

LOCK

2

22-402552-21

ROD

|2

22-400313-01

ROD

3

22-400314-01

NUT

4

02205-00609

NUT

|4

02205-00609

NUT

5

00039-51400

WASHER

6

02010-20625

BOLT

7

01602-00929

WASHER

8

22-400315-01

BRACKET,BATTERY RELAY

9

02030-00522

BOLT

10

01602-00825

WASHER

11

02215-00507

NUT

12

22-401395-01

CABLE,BATTERY(+) TO (-)

|12

22-400316-01

CABLE,BATTERY(+) TO (-)

13

22-400316-01

CABLE,SWITCH(E) TO EARTH

14

02030-00532

BOLT

15

01602-00825

WASHER

16

02215-00507

NUT

17

08088-00000

SWITCH,BATTERY RELAY

18

22-401786-01

CABLE,BATTERY(-) TO SWITCH(B)

|18

22-400317-01

CABLE,BATTERY(-) TO SWITCH(B)

19

08000-00001

TERMINAL¤ (-)

20

08000-00000

TERMINAL¤ (+)

21

22-402551-21

ROD

|21

22-400312-01

ROD

22

08000-01215

BATTERY (145G51)

23

22-400334-01

LOCK

24

22-500035-21

FRAME

|24

22-400337-01

FRAME,RUBBER

25

22-400311-01

SHEET

26

22-450050-01

COVER

27

22-401027-01

CABLE,BATTERY(+) TO MOTOR(B)

|27

22-401027-01

CABLE,BATTERY(+) TO MOTOR(B)

|27

22-400318-01

CABLE,BATTERY(+) TO MOTOR(B)

|27

22-401027-01

CABLE,BATTERY(+) TO MOTOR(B)

|27

22-400318-01

CABLE,BATTERY(+) TO MOTOR(B)

28

150-06-14230

CAP

|28

150-06-14230

CAP

|28

150-06-14230

CAP

29

22-500680-01

CABLE,SWITCH(BR)¤ (SERVICE PARTS)

|29

22-401039-01

CABLE,SWITCH(BR)

|29

22-401039-01

CABLE,SWITCH(BR)

|29

22-400319-01

CABLE,SWITCH(BR)

|29

22-401039-01

CABLE,SWITCH(BR)

|29

22-400319-01

CABLE,SWITCH(BR)
