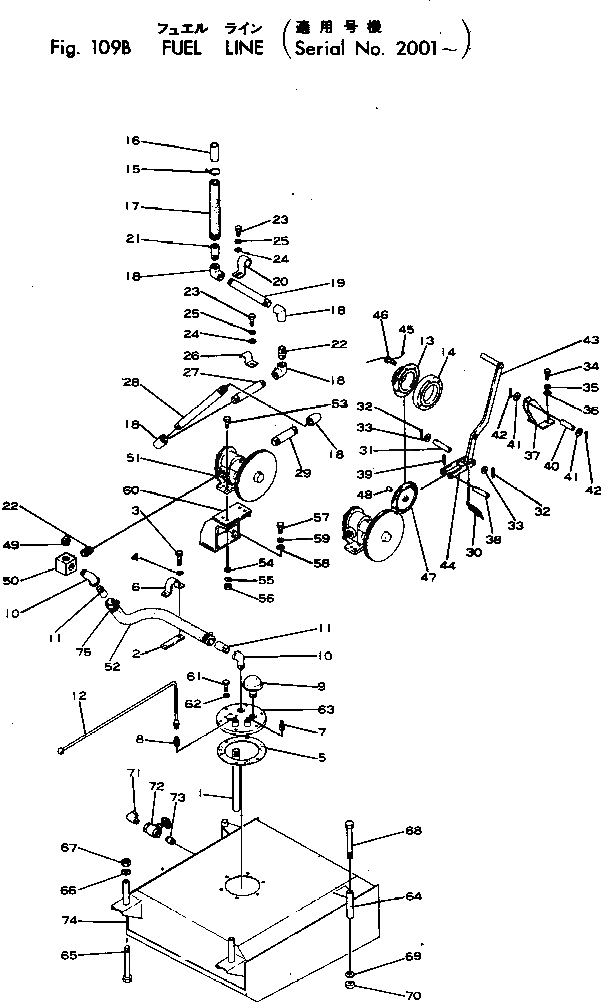

Запчасти Komatsu 22-BCM-1 ТОПЛИВН. ЛИНИЯ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА
№
Артикул
Название
Примечание
Количество
1
21-518382-01
PIPE,FUEL
2
22-402772-01
PLATE
3
02010-00632
BOLT
4
01602-00929
WASHER
5
21-500342-01
GASKET (KIT)
6
07282-04912
CLAMP
7
22-401086-21
JOINT,FUEL SPILL PIPE
8
22-400693-01
NIPPLE
9
22-400307-21
BREATHER,AIR
10
22-401789-01
ELBOW
11
22-401790-01
NIPPLE
12
22-401087-21
PIPE,FUEL
|12
27114-104
JOINT,EYE
|12
07202-01016
NUT
13
22-401807-01
PULLEY,CRANK SHAFT END
14
22-402774-01
SPACER
15
04059-01680
WIRE
16
22-450596-21
STRAINER
17
07261-03232
HOSE
18
22-401788-01
ELBOW
19
22-402662-01
PIPE,FUEL
20
22-402777-01
CLIP
21
22-450949-21
STRAINER
22
22-402663-01
NIPPLE,FUEL
23
02010-00619
BOLT
24
01641-01016
WASHER
25
01602-00929
WASHER
26
22-402641-01
CLIP
27
22-402665-01
PIPE,FUEL
28
22-402775-01
PIPE,FUEL
29
09870-01013
NIPPLE
30
21-509904-01
SPRING
31
22-401797-01
PIN
32
04050-03025
PIN
33
01641-01223
WASHER
34
02010-00625
BOLT
35
01602-00929
WASHER
36
01641-01016
WASHER
37
22-450956-21
BRACKET
38
22-401796-01
PIN
39
04050-03025
PIN
40
22-401798-01
PIN
41
01641-01223
WASHER
42
04050-03025
PIN
43
22-451033-21
LEVER,FUEL
44
22-450595-21
LINK
45
04059-01050
WIRE
46
01004-00840
BOLT
|47
22-580315-00
WHEEL ASS'Y,IDLER
47
PULLEY
48
22-402282-01
BUSHING
49
07042-01019
PLUG
50
22-402792-01
TEE,THREE PORT
51
22-500316-01
PUMP ASS'Y,FUEL
52
07260-03280
HOSE,FUEL FEED
53
02010-00632
BOLT
54
01641-01016
WASHER
55
01602-00929
WASHER
56
02205-00609
NUT
57
02010-00622
BOLT
58
01641-01016
WASHER
59
01602-00929
WASHER
60
22-451039-21
BRACKET
61
02010-00638
BOLT
62
01602-00929
WASHER
63
22-451025-21
COVER
64
21-529825-01
SPACER
65
22-590126-01
BOLT
66
01602-01648
WASHER
67
02205-01015
NUT
68
22-590125-01
BOLT
69
01602-01648
WASHER
70
02205-01015
NUT
71
22-400006-01
ELBOW
72
22-400229-01
VALVE,DRAIN
73
00205-46900
NIPPLE
74
21-234450-21
TANK,FUEL
75
07280-05026
CLAMP
Выбрано товаров: 78
