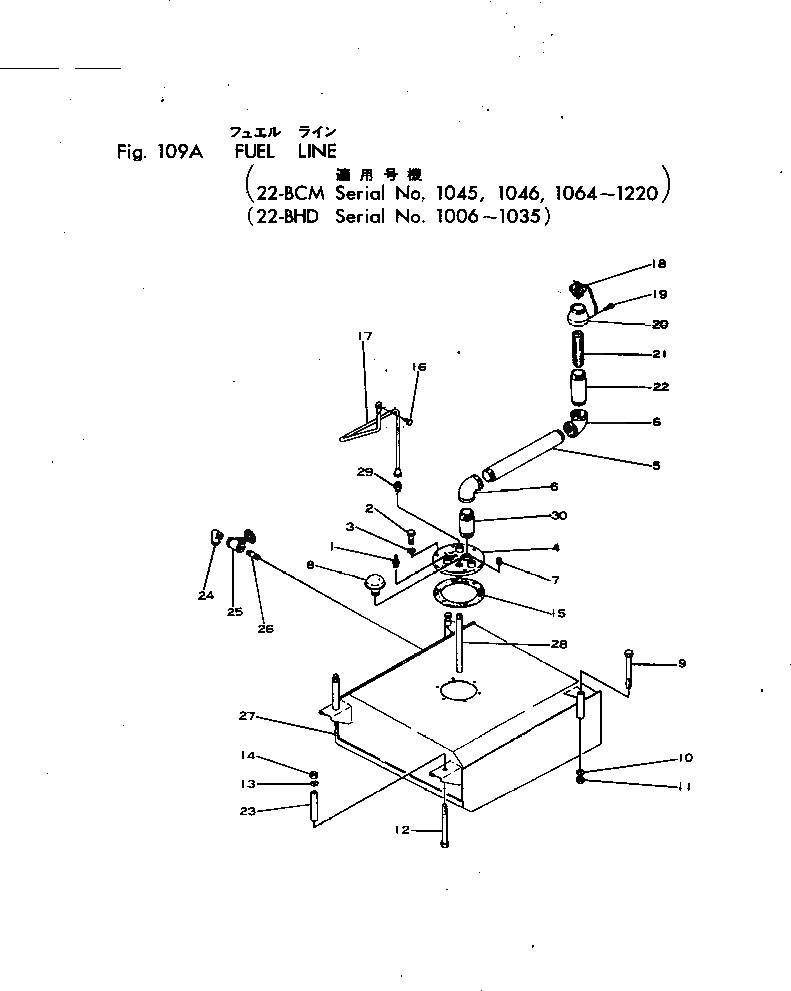

Запчасти Komatsu 22-BCM-1 ТОПЛИВН. ЛИНИЯ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА
№
Артикул
Название
Примечание
Количество
1
22-401086-21
JOINT,FUEL SPILL PIPE
|1
22-401086-21
JOINT,FUEL SPILL PIPE
2
02010-00638
BOLT
|2
02010-00638
BOLT
3
01602-00929
WASHER
|3
01602-00929
WASHER
4
21-615117-21
COVER
|4
21-615117-21
COVER
5
21-505606-01
PIPE
|5
21-505606-01
PIPE
6
22-590121-01
ELBOW
|6
22-590121-01
ELBOW
7
00207-66540
PLUG
|7
00207-66540
PLUG
8
22-400307-21
BREATHER,AIR
|8
22-400307-21
BREATHER,AIR
9
22-590125-01
BOLT
10
01602-01648
WASHER
|10
01602-01648
WASHER
11
02205-11015
NUT
|11
02205-11015
NUT
12
22-590126-01
BOLT
13
01602-01648
WASHER
|13
01602-01648
WASHER
14
02205-11015
NUT
|14
02205-11015
NUT
15
21-500342-01
GASKET (KIT)
|15
21-500342-01
GASKET (KIT)
16
07206-01014
BOLT
|16
07206-01014
BOLT
17
22-401087-21
PIPE,FUEL FEED
|17
22-401087-21
PIPE,FUEL FEED
|17
27114-104
JOINT,EYE
|17
27114-104
JOINT,EYE
|17
07202-01016
NUT
|17
07202-01016
NUT
18
22-450114-01
CAP
|18
22-450114-01
CAP
19
04418-03060
SCREW
|19
04418-03060
SCREW
20
21-511134-01
SOCKET
|20
21-511134-01
SOCKET
21
21-608621-21
STRAINER
|21
21-608621-21
STRAINER
22
21-511133-01
NIPPLE
|22
21-511133-01
NIPPLE
23
21-529825-01
SPACER
24
22-400006-01
ELBOW
25
22-400229-01
VALVE,DRAIN
26
00205-46900
NIPPLE
|26
00205-46900
NIPPLE
27
21-234450-21
TANK,FUEL
28
21-518382-01
PIPE,FUEL
|28
21-518382-01
PIPE
29
22-400693-01
NIPPLE
|29
22-400693-01
NIPPLE
30
00206-08200
NIPPLE
|30
00206-08200
NIPPLE
Выбрано товаров: 58
