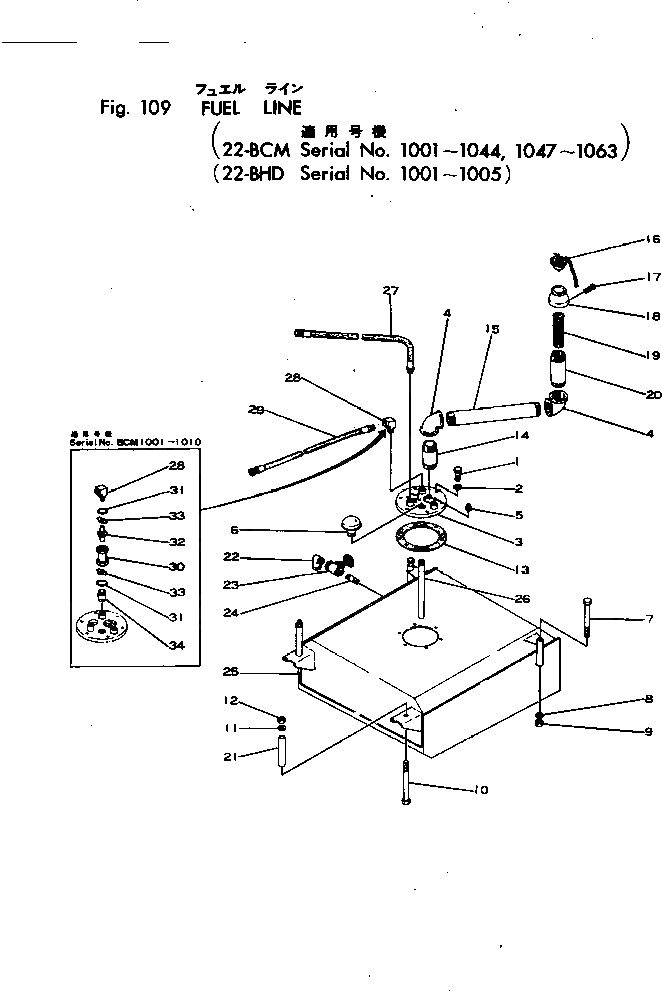

Запчасти Komatsu 22-BCM-1 ТОПЛИВН. ЛИНИЯ(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И POWER TRANSMITTING СИСТЕМА
№
Артикул
Название
Примечание
Количество
1
02010-00638
BOLT
|1
02010-00638
BOLT
2
01602-00929
WASHER
|2
01602-00929
WASHER
3
21-615117-21
COVER
|3
21-615117-21
COVER
4
22-590121-01
ELBOW
|4
22-590121-01
ELBOW
5
00207-66540
PLUG
|5
00207-66540
PLUG
6
22-400307-21
BREATHER,AIR
|6
22-400307-21
BREATHER,AIR
7
22-590125-01
BOLT
8
01602-01648
WASHER
|8
01602-01648
WASHER
9
02205-11015
NUT
|9
02205-11015
NUT
10
22-590126-01
BOLT
11
01602-01648
WASHER
|11
01602-01648
WASHER
12
02205-11015
NUT
|12
02205-11015
NUT
13
21-500342-01
GASKET (KIT)
|13
21-500342-01
GASKET (KIT)
14
00206-08200
NIPPLE
|14
00206-08200
NIPPLE
15
21-505606-01
PIPE
|15
21-505606-01
PIPE
16
22-450114-01
CAP
|16
22-450114-01
CAP
17
04418-03060
SCREW
|17
04418-03060
SCREW
18
21-511134-01
SOCKET
|18
21-511134-01
SOCKET
19
21-608621-21
STRAINER
|19
21-608621-21
STRAINER
20
21-511133-01
NIPPLE
|20
21-511133-01
NIPPLE
21
21-529825-01
SPACER
22
22-400006-01
ELBOW
23
22-400229-01
VALVE,DRAIN
24
00205-46900
NIPPLE
|24
00205-46900
NIPPLE
25
21-234450-21
TANK,FUEL
26
21-518382-01
PIPE,FUEL
|26
21-518382-01
PIPE,FUEL
27
22-400115-01
HOSE,SPILL
|27
22-400115-01
HOSE,SPILL
28
22-590012-02
ELBOW
|28
22-590012-02
ELBOW
29
22-400116-01
HOSE,FEED
|29
22-400116-01
HOSE,FEED
|30
22-580320-00
CHECK VALVE ASS'Y
30
BODY
31
RING
32
VALVE
33
GUIDE
34
00205-37000
NIPPLE
Выбрано товаров: 58
