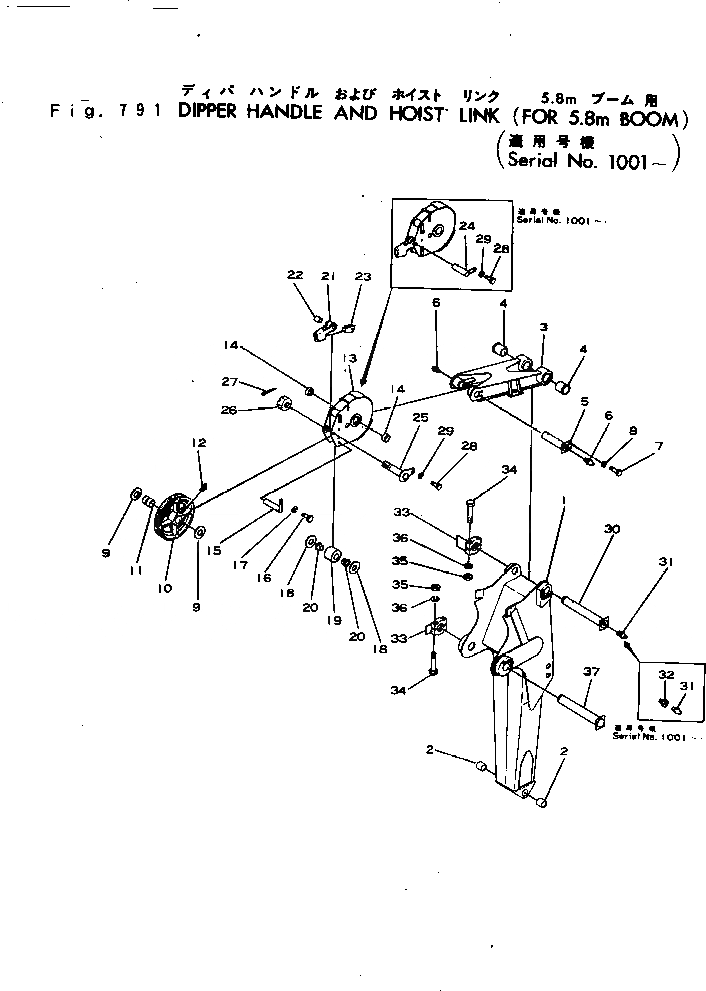

Запчасти Komatsu 22-BCM-1 DIPPER РУКОЯТЬ И ПОДЪЕМ СОЕДИНИТЕЛЬН. ЗВЕНО (ДЛЯ .8M СТРЕЛА)(№()-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580142-00

BOOM MACHINERY ASS'Y

1

HANDLE,DIPPER

2

21-504971-01

BUSHING

|3

22-580144-00

LINK AND SHEAVE A.,HOIST

|3

22-580143-00

LINK AND SHEAVE A.,HOIST

|3

22-580155-00

HOIST LINK ASS'Y

3

LINK,HOIST

4

21-290270-01

BUSHING

5

21-603042-21

PIN,HOIST LINK SHEAVE

6

00570-45010

FITTING

7

02010-20825

BOLT

8

01602-01338

WASHER

9

21-507914-01

WASHER

|10

22-580131-00

SHEAVE ASS'Y,HOIST LINK

10

SHEAVE

11

21-507912-01

BUSHING

12

00570-43760

FITTING

|12

00570-45010

FITTING

|13

22-580145-00

GUARD ASS'Y

13

GUARD,HOIST LINK SHEAVE

14

21-529060-01

BUSHING

15

21-613495-21

PIN,GUIDE ROLLER

16

02030-20519

BOLT

17

01602-00825

WASHER

18

22-400090-01

SPACER

|19

22-580146-00

ROLLER ASS'Y

19

ROLLER,HOIST ROPE GUIDE

20

21-503546-01

BUSHING

|21

22-580147-00

SOCKET ASS'Y,HOIST ROPE

21

SOCKET,HOIST ROPE

22

22-400241-01

BUSHING

23

21-526460-01

WEDGE

24

21-603043-21

PIN

25

22-450719-21

PIN

26

22-590095-01

NUT

27

04050-06065

PIN

28

02030-20819

BOLT

29

01602-01338

WASHER

30

21-702911-21

PIN,HOIST LINK

31

00570-43760

FITTING

32

00200-15250

BUSHING

33

21-411278-01

COLLAR

34

02031-21021

BOLT

35

02215-11014

NUT

36

01602-01648

WASHER

37

21-715141-21

PIN,BOOM POINT
