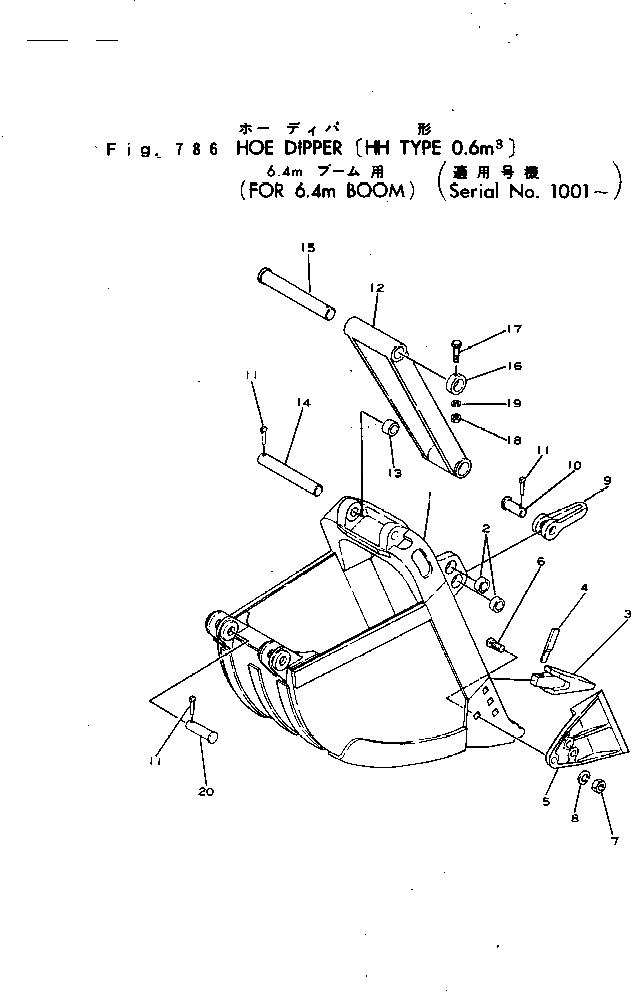

Запчасти Komatsu 22-BCM-1 HOE DIPPER (HH ТИП .M)(ДЛЯ .M СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580282-00

DIPPER AND BRACE A. (OP)

|1

22-580283-00

DIPPER ASS'Y,0.6M3¤ H.H

|1

22-580284-00

BODY ASS'Y

1

BODY,0.6M3¤ H.H

2

21-529011-01

BUSHING

3

22-540136-01

TOOTH,1 PIECE TYPE

4

21-501022-01

WEDGE

5

21-710671-01

CUTTER,SIDE¤ GENERAL TYPE

6

02090-01690

BOLT

7

02206-01614

NUT

8

01601-02564

WASHER

9

21-613633-01

SHACKLE

10

21-517459-01

PIN,SHACKLE

11

22-590072-01

T-BOLT (KIT)

|11

22-580285-00

PITCH BRACE ASS'Y

12

BRACE,PITCH

13

21-504971-01

BUSHING

14

21-514906-01

PIN,PITCH BRACE

15

22-401984-01

PIN,PITCH BRACE

16

21-524156-01

COLLAR

17

02031-00821

BOLT

18

02215-00811

NUT

19

01602-01338

WASHER

20

21-514907-01

PIN
