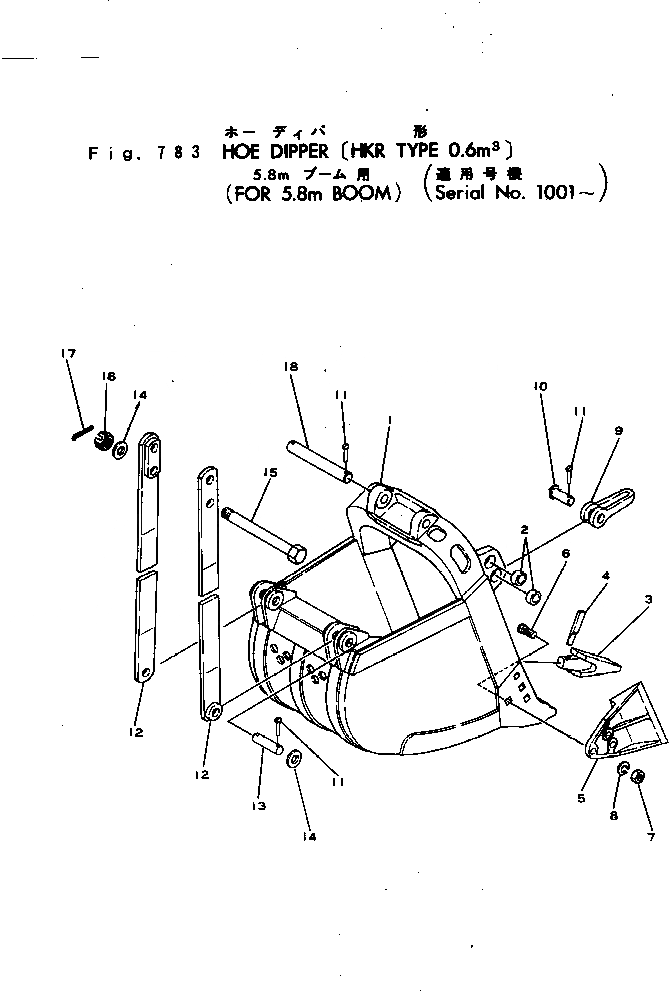

Запчасти Komatsu 22-BCM-1 HOE DIPPER (HKR ТИП .M)(ДЛЯ .8M СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580295-00

DIPPER AND BRACE A.

|1

22-580294-00

DIPPER AND BRACE A.

|1

22-580279-00

DIPPER ASS'Y,0.6M3¤ H.K

|1

22-580280-00

BODY ASS'Y

1

BODY,0.6M3¤ H.K

2

21-529011-01

BUSHING

3

22-540136-01

TOOTH,1 PIECE TYPE

4

21-501022-01

WEDGE

5

21-710671-01

CUTTER,SIDE¤ GENERAL TYPE

6

02090-01690

BOLT

|6

22-400290-01

BOLT

7

02206-01614

NUT

8

01602-02576

WASHER

9

21-613633-01

SHACKLE

10

21-517459-01

PIN,SHACKLE

11

22-590072-01

T-BOLT (KIT)

12

22-450525-21

BRACE,PITCH

13

21-514905-01

PIN,PITCH BRACE

14

00039-52700

WASHER

15

21-504644-21

BOLT

16

22-590052-01

NUT

17

22-400236-01

PIN

18

21-514906-01

PIN
