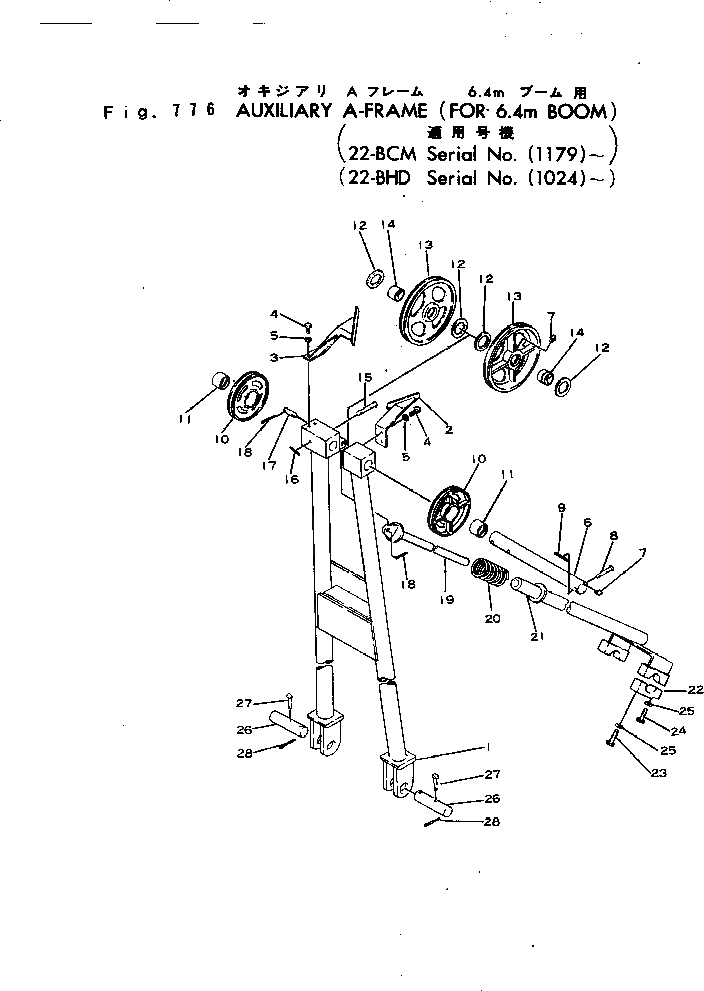

Запчасти Komatsu 22-BCM-1 ВСПОМОГ. A-РАМА (ДЛЯ .M СТРЕЛА)(№79-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580135-00

AUXILIARY A-FRAME A.

1

22-540282-21

A-FRAME,AUXILIARY

2

22-500393-21

GUIDE,ROPE

3

22-500392-21

GUIDE,ROPE

4

02030-00825

BOLT

5

01601-01332

WASHER

6

21-615231-01

SHAFT,TOP SHEAVE

7

00570-43760

FITTING

8

21-500731-01

T-BOLT

9

04050-05030

PIN

|10

22-580038-00

SHEAVE ASS'Y

10

SHEAVE,SUSPENSION ROPE

11

21-500845-01

BUSHING

12

21-507914-01

WASHER

|13

22-580131-00

SHEAVE ASS'Y

13

SHEAVE,HOIST ROPE

14

21-507912-01

BUSHING

15

21-503781-01

T-BOLT

16

04050-05030

PIN

17

21-504125-01

PIN,BACK STOP ANCHOR

18

04050-06045

PIN

|19

22-580136-00

BACK STOP ASS'Y

19

22-450716-21

BACK STOP,INNER

20

21-520124-01

SPRING,BACK STOP

21

22-500394-21

BACK STOP,OUTER

22

22-402147-01

BEARING

23

02030-01064

BOLT

24

02030-01089

BOLT

25

01602-01648

WASHER

26

21-518356-01

PIN,FOOT

27

21-500731-01

T-BOLT

28

04050-05030

PIN
