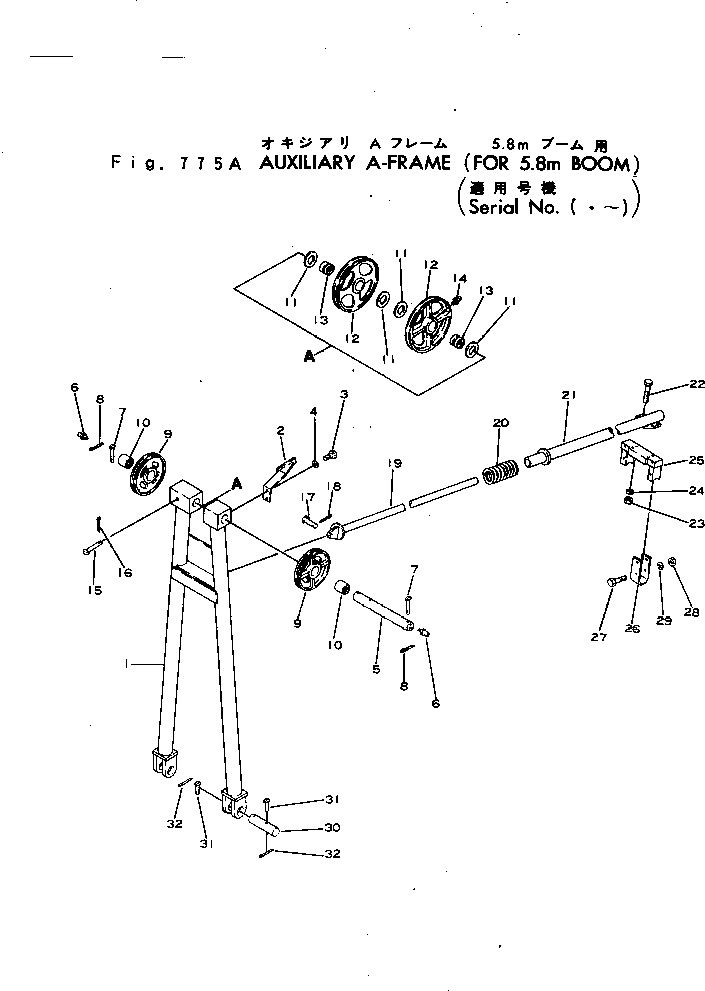

Запчасти Komatsu 22-BCM-1 ВСПОМОГ. A-РАМА (ДЛЯ .8M СТРЕЛА)(№..-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580133-00

AUXILIARY A-FRAME A.,AUXILIARY

1

21-811345-21

A-FRAME,ROPE

2

22-500393-21

GUIDE

3

02030-00825

BOLT

4

01601-01332

WASHER

5

21-615231-01

SHAFT,TOP SHEAVE

6

00570-43760

FITTING

7

21-500731-01

T-BOLT

8

04050-05030

PIN

|9

22-580096-00

SUSPENSION SHEAVE A.

9

SHEAVE,SUSPENSION ROPE

10

21-500845-01

BUSHING

11

21-507914-01

WASHER

|12

22-580131-00

SHEAVE ASS'Y

12

SHEAVE,HOIST ROPE

13

21-507912-01

BUSHING

14

00570-43760

FITTING

15

21-503781-01

T-BOLT

16

04050-05030

PIN

17

21-504125-01

PIN,BACK STOP ANCHOR

18

04050-06035

PIN

|19

22-580134-01

BACK STOP ASS'Y

19

21-721206-21

BACK STOP,INNER

20

21-520124-01

SPRING,BACK STOP

21

21-721209-21

BACK STOP,OUTER

22

02030-01083

BOLT

23

02215-01014

NUT

24

01602-01648

WASHER

25

21-606905-21

BRACKET

26

21-506526-01

BRACKET

27

02031-00821

BOLT

28

02215-00811

NUT

29

01602-01338

WASHER

30

21-518356-01

PIN,FOOT

31

21-500731-01

T-BOLT

32

04050-05030

PIN
