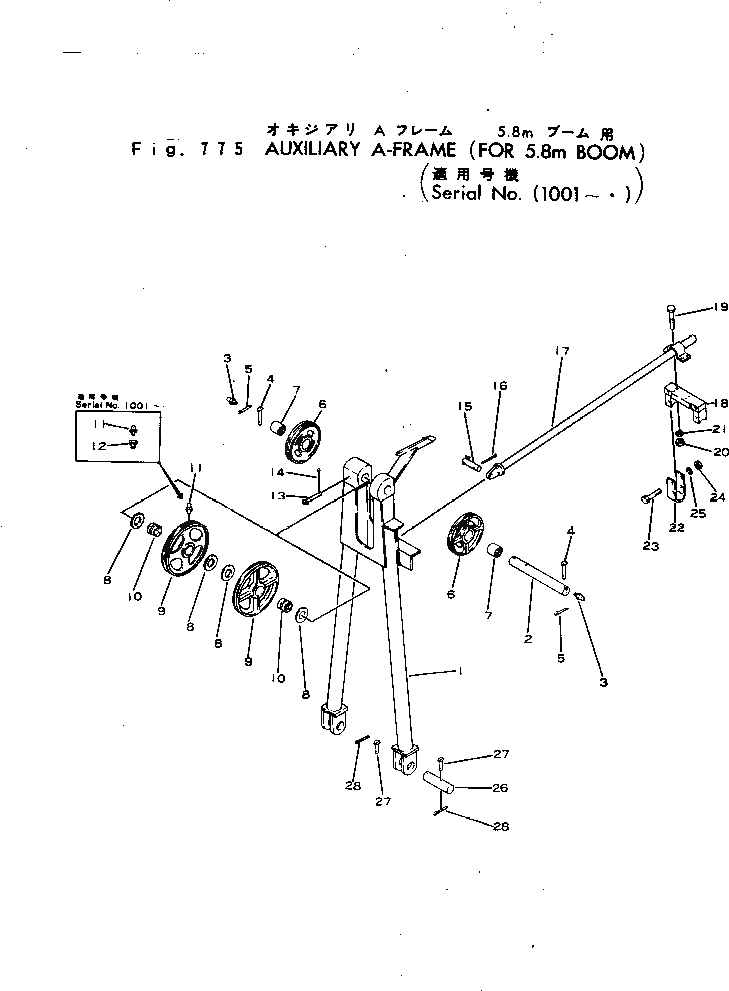

Запчасти Komatsu 22-BCM-1 ВСПОМОГ. A-РАМА (ДЛЯ .8M СТРЕЛА)(№-..) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580152-00

AUXILIARY A-FRAME A.,FOR B TYPE BOOM

|1

22-580130-00

AUXILIARY A-FRAME A.,FOR A TYPE BOOM

1

21-806553-41

A-FRAME,FOR B TYPE BOOM

|1

21-806553-21

A-FRAME,FOR A TYPE BOOM

2

21-505288-01

PIN,TOP SHEAVE

3

00570-45010

FITTING

4

21-507311-01

T-BOLT

5

04050-05030

PIN

|6

22-580096-00

SUSPENSION SHEAVE A.

6

SHEAVE,SUSPENSION ROPE

7

21-500845-01

BUSHING

8

21-507914-01

WASHER

|9

22-580131-00

SHEAVE ASS'Y

9

SHEAVE,HOIST ROPE

10

21-507912-01

BUSHING

11

00570-43760

FITTING

12

00200-15250

BUSHING,FOR A TYPE BOOM

13

21-503781-01

T-BOLT

14

04050-05030

PIN

15

21-504125-01

PIN,BACK STOP ANCHOR

16

04050-06035

PIN

|17

22-580132-00

BACK STOP ASS'Y

17

21-704099-41

BACK STOP

18

21-606905-21

BRACKET

19

02030-01076

BOLT

20

02215-01014

NUT

21

01602-01648

WASHER

22

21-506526-01

BRACKET

23

02031-00814

BOLT

24

02215-00811

NUT

25

01602-01338

WASHER

26

21-518356-01

PIN,FOOT

27

21-500731-01

T-BOLT

28

04050-05030

PIN
