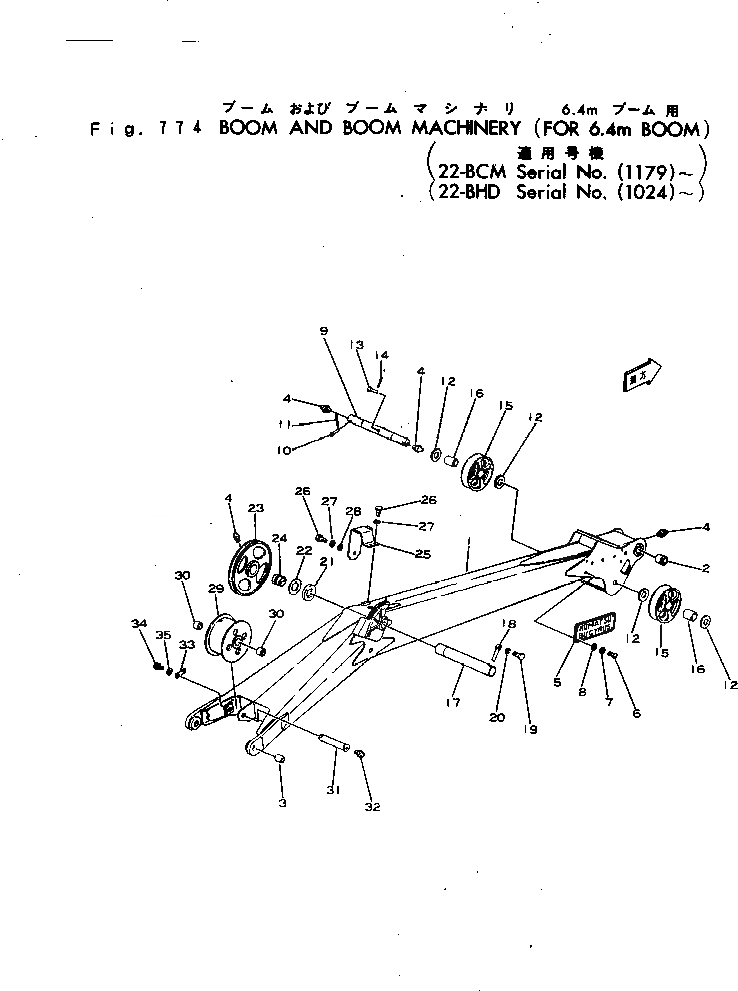

Запчасти Komatsu 22-BCM-1 СТРЕЛА И СТРЕЛА MACHINERY (ДЛЯ .M СТРЕЛА)(№79-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580142-00

BOOM MACHINERY ASS'Y,FOR 6.4M

|1

22-580141-00

BOOM MACHINERY ASS'Y,FOR 6.4M

|1

22-580154-00

BOOM ASS'Y,FOR 6.4M

1

BOOM,FOR 6.4M

2

21-290270-01

BUSHING,BOOM POINT

3

21-520853-01

BUSHING,BOOM FOOT

4

00570-43760

FITTING

5

22-540026-01

PLATE¤ NAME

6

22-590122-01

SCREW

7

01602-00929

WASHER

8

07003-11015

GASKET

9

22-450973-01

SHAFT,GUIDE SHEAVE

10

22-590235-01

T-BOLT

|10

22-590414-01

T-BOLT

11

04050-03018

PIN

12

01604-25260

WASHER

13

21-500143-01

T-BOLT

14

04050-05030

PIN

|15

22-580139-00

SHEAVE ASS'Y

15

SHEAVE,DRAG ROPE GUIDE

16

21-528447-01

BUSHING

17

22-402708-01

PIN,DEFLECTOR SHEAVE

18

22-401775-21

BOLT,EYE

19

02010-21038

BOLT

20

01602-01648

WASHER

21

22-402709-01

WASHER

22

21-507914-01

WASHER

|23

22-580131-00

SHEAVE ASS'Y

23

SHEAVE,DEFLECTOR

24

21-507912-01

BUSHING

25

22-500570-21

GUARD,DEFLECTOR SHEAVE

26

02010-21032

BOLT

27

01602-01648

WASHER

28

01640-01626

WASHER

|29

22-580140-00

ROLLER ASS'Y,BOOM FOOT

29

ROLLER,BOOM FOOT

30

22-401819-01

BUSHING

31

22-401820-01

SHAFT

32

00570-45260

FITTING

33

22-401821-01

PLATE

34

02010-00822

BOLT

35

01602-01338

WASHER
