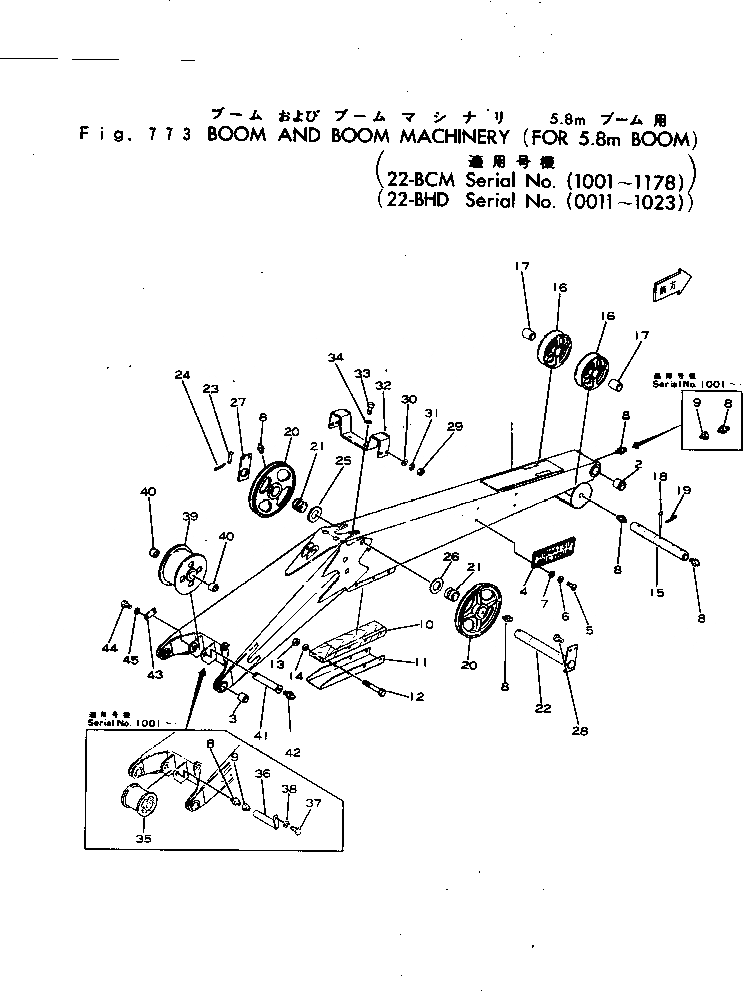

Запчасти Komatsu 22-BCM-1 СТРЕЛА И СТРЕЛА MACHINERY (ДЛЯ .8M СТРЕЛА)(№-78) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

22-580945-00

BOOM MACHINERY ASS'Y,FOR C TYPE BOOM

|1

22-580138-00

BOOM MACHINERY ASS'Y,FOR B TYPE BOOM

|1

22-580137-00

BOOM MACHINERY ASS'Y,FOR A TYPE BOOM

|1

22-580506-00

BOOM ASS'Y,FOR B AND C TYPE BOOM

|1

22-580505-00

BOOM ASS'Y,FOR A TYPE BOOM

1

21-850328-47

BOOM

2

21-290270-01

BUSHING,BOOM POINT

3

21-520853-01

BUSHING,BOOM FOOT

4

22-540026-01

PLATE¤ NAME

5

22-590122-01

SCREW

6

01602-00929

WASHER

7

07003-11015

GASKET,FOR B AND C TYPE BOOM

|7

22-400284-01

RING,FOR A TYPE BOOM

8

00570-43760

FITTING

9

00200-15250

BUSHING,FOR A TYPE BOOM

10

21-614293-01

BLOCK,BUMPER

11

21-614291-01

BUMPER

12

22-590200-01

BOLT

13

02205-11015

NUT

14

01602-01648

WASHER

15

21-279577-01

PIN,GUIDE SHEAVE

|16

22-580139-00

SHEAVE ASS'Y

16

SHEAVE,DRAG ROPE GUIDE

17

21-528447-01

BUSHING

18

22-400074-01

T-BOLT

19

04050-03025

PIN

|20

22-580131-00

SHEAVE ASS'Y

20

SHEAVE,DEFLECTOR

21

21-507912-01

BUSHING

22

21-603044-21

PIN,DEFLECTOR SHEAVE

23

21-500731-01

T-BOLT

24

04050-05030

PIN

25

21-507914-01

WASHER

26

00039-53100

WASHER

27

21-505290-01

PLATE,GUARD

28

02010-20838

BOLT,FOR B AND C TYPE BOOM

|28

22-590079-01

BOLT,FOR A TYPE BOOM

29

02205-10812

NUT

30

00039-51600

WASHER

31

01602-01338

WASHER

32

21-603045-21

GUARD,DEFLECTOR SHEAVE

33

02010-21032

BOLT

34

01602-01648

WASHER

35

21-617170-01

ROLLER,FOR A AND B TYPE BOOM

36

21-520855-22

PIN,FOR B TYPE BOOM

|36

21-520855-21

PIN,FOR A TYPE BOOM

37

02010-20825

BOLT,FOR B TYPE BOOM

|37

22-590035-01

BOLT,FOR A TYPE BOOM

38

01602-01338

WASHER,FOR A AND B TYPE BOOM

|39

22-580140-00

ROLLER ASS'Y,FOR C TYPE BOOM

39

ROLLER,BOOM FOOT

40

22-401819-01

BUSHING

41

22-401820-01

SHAFT,FOR C TYPE BOOM

42

00570-45260

FITTING,FOR C TYPE BOOM

43

22-401821-01

PLATE,FOR C TYPE BOOM

44

02010-20822

BOLT,FOR C TYPE BOOM

45

01602-01338

WASHER,FOR C TYPE BOOM
